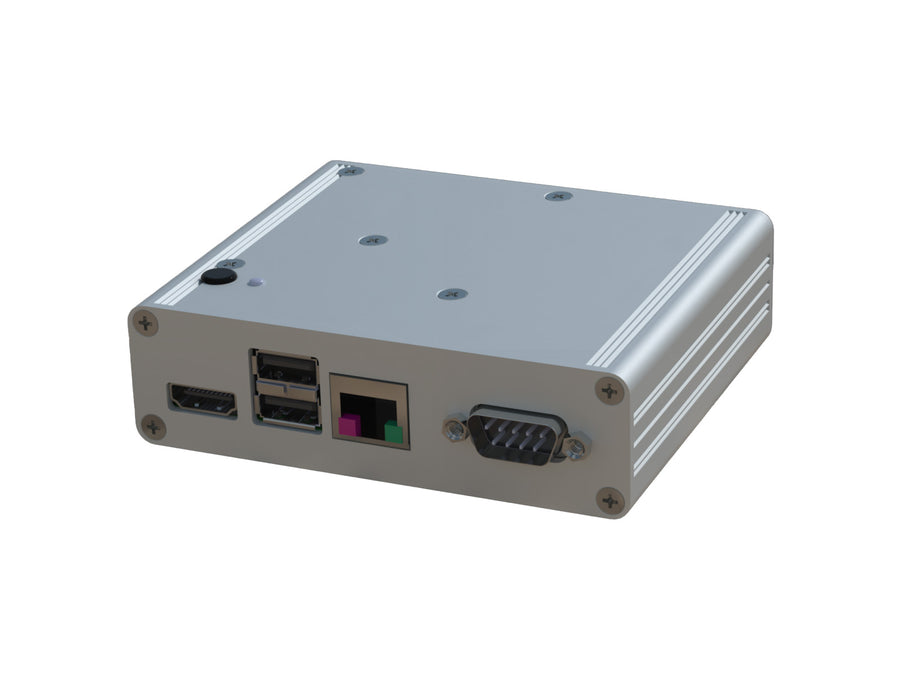

Sharp MPi4 Box Gen2 Digital Signage Media Player

The Sharp MPi4 Box Gen2 is a signage media player built on a Raspberry Pi Compute Module 4, with a quad-core 1.5 GHz Arm Cortex-A72 processor, 4 GB RAM and 32 GB eMMC storage. It suits retail signage, quick service menu boards and passenger information. Procure.ae supplies the MPi4 Box Gen2 in the UAE.

The MPi4 Box Gen2 uses a quad-core 64-bit Arm Cortex-A72 processor at 1.5 GHz with VideoCore IV graphics. Its hardware decoder handles H.265 (HEVC) video up to 4Kp60 and H.264 up to 1080p60, and it encodes H.264 up to 1080p30. The box has 4 GB LPDDR4-3200 RAM and 32 GB eMMC storage, with OpenGL ES 3.0 graphics. It is built around an industrial-grade Raspberry Pi Compute Module 4 for retail signage, quick service menu boards and passenger information.

The MPi4 Box Gen2 is an open platform, so it can run custom operating systems and third-party signage software. Its interfaces are one RJ45 port at 10/100/1000 Mbps, two USB 2.0 ports, one microHDMI port, one RS-232C serial port and a USB Type-C power connection. The open platform gives direct access to third-party content management systems through Sharp's software partners.
