Sharp Motorised Display Trolley, 800 x 600 VESA – Trolley PD02MHA-CB86

Sharp Motorised Display Trolley, 800 x 600 VESA – Trolley PD02MHA-CB86

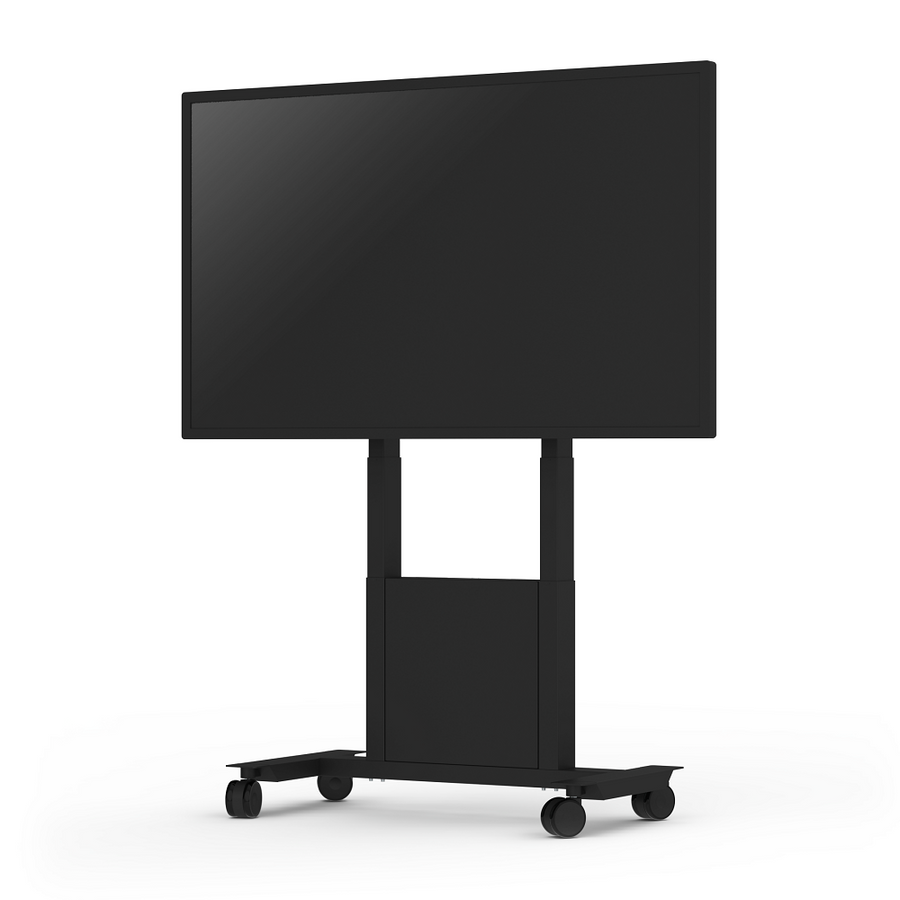

The Sharp Trolley PD02MHA-CB86 is a motorised mobile trolley for displays from 46 to 98 inches, rated for up to 120 kg. It offers a 500 mm electric height adjustment and VESA patterns up to 800 x 600 mm. Procure.ae, an authorised reseller, supplies it across the UAE.

Apart from its VESA range, the specifications match the Trolley PD02MHA. The motorised height adjustment covers 500 mm and is operated with the supplied remote control with cable. The VESA range is 200 x 200 to 800 x 600 mm, compared with 800 x 400 mm at the upper end of the PD02MHA range. The very stable design suits large, heavy and touch-sensitive displays. A storage box of 496 x 472 x 96 mm for computing devices is accessible from the front, and 100 mm casters let the unit move between rooms.

Type
Motorised Display Trolley
Weight
51 kg

Key features

01
Motorised height
500 mm electric height adjustment with remote control.
02
Load capacity
supports displays up to 120 kg.
03
Display range
recommended for 46 to 98-inch displays.
04
Wider VESA range
200 x 200 to 800 x 600 mm mounting patterns.
05
Storage box
496 x 472 x 96 mm box for computing devices, accessible from the front.
06
Easy movement
100 mm casters and cart legs for moving between rooms.

Specifications

General
Key FeaturesMotorised height adjustment 500 mm, 120 kg max load, 46 to 98-inch range, VESA 200 x 200 to 800 x 600 mm, storage box, 100 mm casters, remote control, single display
ModelTrolley PD02MHA-CB86
TypeMotorised Display Trolley
What's in the BoxTrolley with electric motor, cart legs, handles, 100 mm casters, remote control with cable, VESA mounting rails
Display
OrientationLandscape
Supported Screen Sizes46 to 98 inch
Physical
ColorBlack
Height Range500 mm, motorised
Load Capacity120 kg
MountingMobile trolley, single display
Shipping Dimensions1120 x 790 x 205 mm
Shipping Weight52 kg
VESA Mount200 x 200 to 800 x 600 mm
Weight51 kg
Compliance
Warranty2 years
