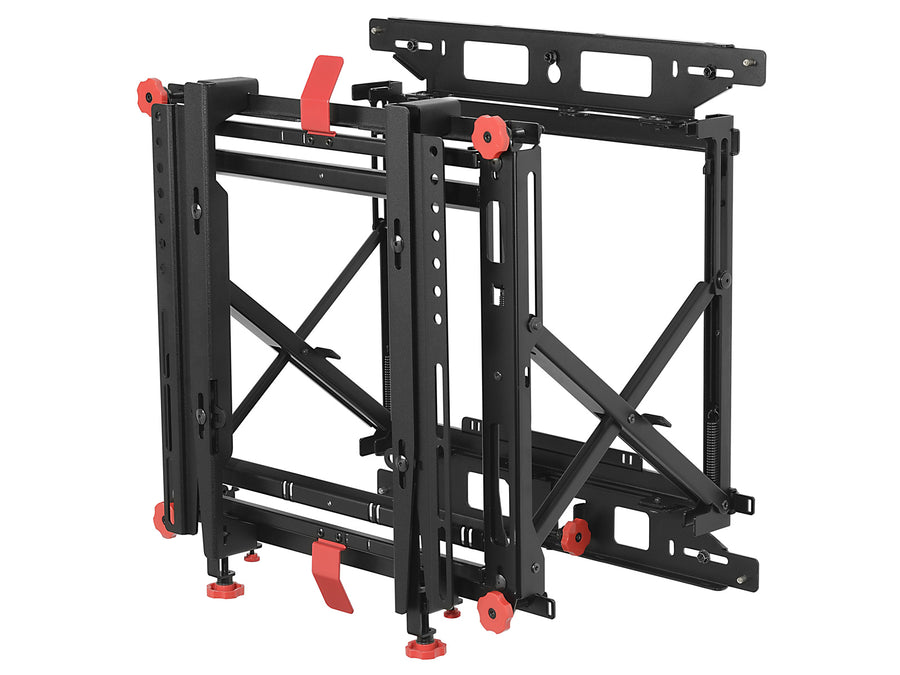

Sharp Manual Front Service Video Wall Mount 46-55-inch – PD04VW MFS 46-55

The Sharp PD04VW MFS 46-55 is a manual front service video wall mount for Sharp 46- to 55-inch displays, installable in landscape or portrait. It is rated for 56.8 kg and uses a 400 x 400 mm VESA pattern with 38 mm height adjustment. Procure.ae supplies this Sharp video wall mount across the UAE.

The mount is rated for a maximum load of 56.8 kg and has a 38 mm height adjustment. Its dimensions are 540 x 540 x 80 to 356 mm, with a maximum extension of 356 mm and a minimum depth of 80 to 118 mm. Front service allows the installed display to be adjusted and serviced from the front of the wall. The bracket weighs 11.4 kg and ships with adapter brackets, the mount and mounting hardware.

It is designed for single displays and video wall setups, in landscape or portrait orientation. Sharp lists connector kits CK04UN49S, CK04UN552A, CK04UX552S and CK4UN462A for matching the mount to Sharp displays. The mount is UL listed and RoHS compliant, and the manufacturer lists a 5-year warranty. Procure.ae supplies the mount for projects across the UAE and the wider MEA region.
