Sennheiser · TeamConnect Ceiling Medium F-B · Video Conferencing

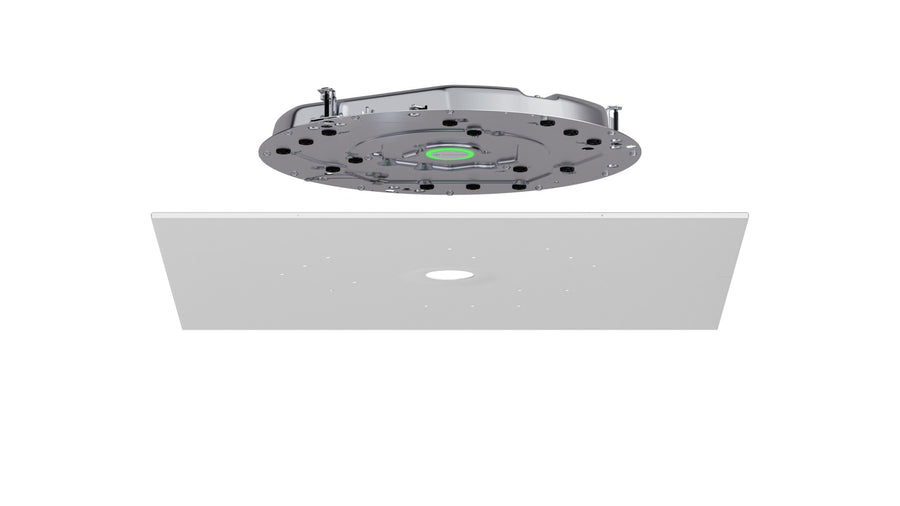

Sennheiser TeamConnect Ceiling Medium Ceiling Microphone Array – F-B

Sennheiser TeamConnect Ceiling Medium Ceiling Microphone Array – F-B

The Sennheiser TeamConnect Ceiling Medium F-B is a ceiling microphone array for meeting rooms and collaboration spaces. It uses patented automatic dynamic beamforming, is PoE/PoE+ powered with single-cable mode, and is certified for Microsoft Teams. Procure.ae supplies it in the UAE.

TeamConnect Ceiling Medium F-B uses patented automatic dynamic beamforming, which the manufacturer describes as adaptive and intelligent, to pick up speech across the room. Its 15 electret condenser capsules, made in Germany, give a frequency response of 100 Hz to 16,000 Hz, a dynamic range of 83 dB(A) and a signal-to-noise ratio of 79 dB(A). The maximum sound pressure level is 98 dB SPL. TruVoicelift and Intelligent Noise Control are also listed among its features.

The microphone suits meeting rooms that use PoE/PoE+ network cabling, because it is powered over the network and supports single-cable mode and daisy-chaining. Dante or analog output is available, and control traffic is encrypted through the SSCv2 API with TLS 1.2. It can be mounted flush, on the surface, suspended or by VESA. The manufacturer sells the TeamConnect Ceiling Medium only as a kit, not as a single article, and Procure.ae provides free training and support.

Type
Ceiling Microphone Array
Weight
4.9 kg

Key features

01
Adaptive beamforming
Patented automatic dynamic beamforming adapts pickup to the people speaking in the room.
02
Speech capture
15 electret condenser capsules, made in Germany, with an 83 dB(A) dynamic range.
03
Single-cable operation
PoE/PoE+ powered, with single-cable mode and daisy-chaining.
04
Dante or analog output
Choose Dante or analog output, with an analog 1 x 3-pin terminal.
05
Exclusion and priority zones
Exclusion zones ignore selected areas of the room, while priority zones favour others.
06
Camera control
Camera control is driven by talker position data.
07
Secure control
Encrypted SSCv2 API with TLS 1.2, and IEEE 802.1x support.
08
Microsoft Teams certified
The manufacturer certifies the microphone for Microsoft Teams.

Specifications

General
Key FeaturesAdaptive beamforming, TruVoicelift, Single-cable mode, PoE/PoE+ powered, Dante or analog output, Exclusion and priority zones, Camera control via talker position data, Microsoft Teams certified
ModelTeamConnect Ceiling Medium F-B
TypeCeiling Microphone Array
Audio
Audio OutDante or analog; analog via 1 x 3-pin terminal (fits Phoenix Contact MCVW 1.5-3-ST-3.81)
Dynamic Range83 dB(A)
Frequency Response100 Hz to 16,000 Hz
Max SPL98 dB SPL
Microphone15 electret condenser capsules, made in Germany
Microphone TypePre-polarised condenser
Sensitivity0 dBV/Pa (1020 mV/Pa)
Signal-to-Noise Ratio79 dB(A)
Connectivity
ConnectivityWired, PoE/PoE+
PoEPoE / PoE+, single or daisy-chained
ProtocolsSSCv2 API with TLS 1.2 encryption, IEEE 802.1x
Power
Power Consumption8 W (approx.)
Physical
MaterialMetal housing, paintable
MountingFlush, surface, suspended or VESA
Operating Humidity20% to 95% RH, non-condensing
Weight4.9 kg
Compliance
CertificationsMicrosoft Teams
Warranty5 years
