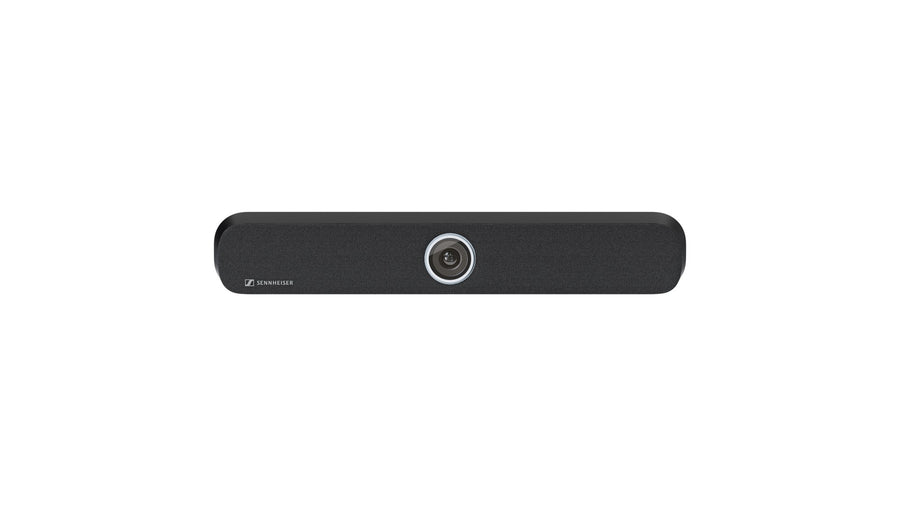

The Sennheiser TeamConnect Bar S UK (model code 700106) is an all-in-one video conferencing bar for small meeting rooms and collaboration spaces. It combines a 4K UHD camera with a 120° diagonal field of view, four beamforming microphones and full-range stereo speakers. Procure.ae supplies it across the UAE.
The 4K UHD camera (ePTZ) offers a 120° diagonal and 115° horizontal field of view, with 2x digital zoom. Autoframing and person tiling keep everyone in the room clearly in view. Four microphones with integrated beamforming pick up speech up to 4.5 m away and allow presenters to move around the room with a seamless transition between them. The audio frequency response runs from 100 Hz to 18 kHz, and the built-in DSP automatically optimises room acoustics.
The bar runs on Windows 10 or later and is approved for Microsoft Teams and Zoom, and for control by Barco, Crestron, Extron and Q-Sys systems. It accepts PoE+ power (IEEE 802.3at Type 2) and can be wall mounted, fitted to a VESA mount, or placed on a table or freestanding. Sennheiser DeviceHub gives full remote control. Dante support lets you add extension microphones or a second external USB camera. The KOR, UK and US codes share the same listed specifications.
| Compatibility | Microsoft Teams, Zoom; Barco, Crestron, Extron and Q-Sys control systems |
| Controls | Remote control via Sennheiser DeviceHub |
| Key Features | 4K UHD camera, 4-microphone beamforming array, Full-range stereo speakers, Autoframing, Dante expansion, Wall, VESA or tabletop mounting, Teams and Zoom approved |
| Model | TeamConnect Bar S UK |
| Type | Video Conferencing Bar |
| Camera | ePTZ, 120° diagonal and 115° horizontal field of view |
| Resolution | 3840 x 2160 (4K UHD) |
| Zoom | 2x digital |
| Operating System | Windows 10 or later |
| Storage Conditions | -25 to 70 °C, 0 to 95% RH, non-condensing |
| Audio Codecs | SBC |
| Dynamic Range | 69 dB(A) |
| Frequency Response | 100 Hz to 18 kHz |
| Max SPL | 80 dB SPL |
| Microphone | 4 microphones with integrated beamforming |
| Microphone Type | MEMS |
| Pickup Range | 4.5 m |
| Speaker Configuration | Full-range stereo |
| THD | Below 5% |
| Bluetooth | Bluetooth 5.1 |
| Connectivity | Wired (USB, RJ45 Ethernet), Wi-Fi, Bluetooth 5.1 |
| Expansion | Dante for extension microphones and a second external USB camera |
| Input Voltage | 42.5–57.0 V DC (PoE) |
| PoE | IEEE 802.3at Type 2 (PoE+) |
| Ports | HDMI out 2.0 × 1, USB, RJ45 (Ethernet) |
| Wi-Fi | IEEE 802.11a/b/g/n/ac |
| Power Consumption | 30 W (maximum) |
| Mounting | Wall, VESA, tabletop or freestanding |
| Operating Humidity | 0 to 75% RH, non-condensing |
| Operating Temperature | 0 to 40 °C |
| Weight | 1.5 kg |
| Security Features | Encrypted control communication, password protected by default |
| Warranty | 3 years |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
