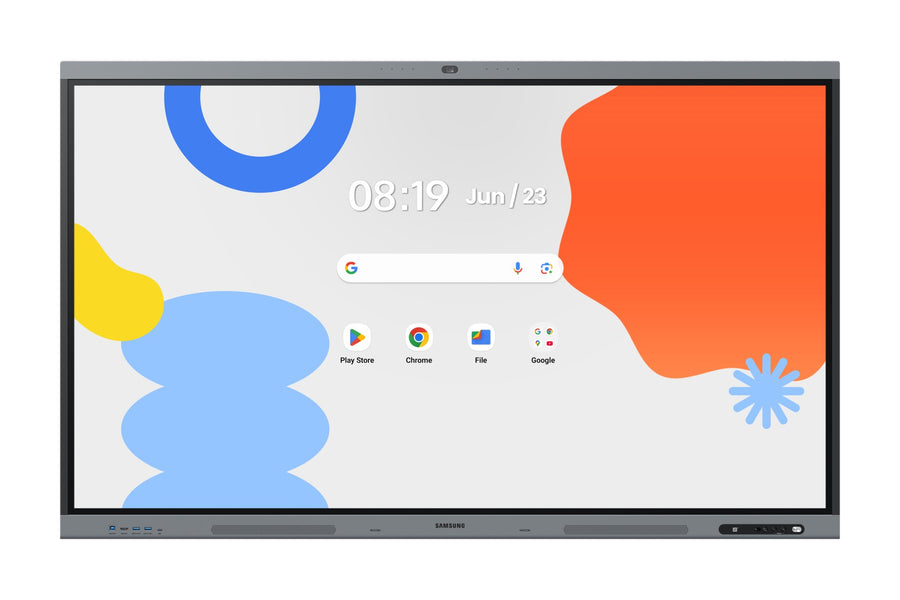

Samsung WAFX-P Series 75-inch Android Interactive Flat Panel – WA75FX-P

Samsung WAFX-P Series 75-inch Android Interactive Flat Panel – WA75FX-P

The Samsung WAFX-P Series WA75FX-P is a 75-inch Android interactive flat panel with an IPS display, a built-in camera and Android 15. It suits classrooms, meeting rooms and training spaces. Procure.ae supplies the Samsung WA75FX-P across the UAE, with delivery and installation.

The WA75FX-P has a 75-inch IPS panel with 3840 x 2160 (4K UHD) resolution, 450 nits typical brightness and a 1,200:1 contrast ratio. Its 178-degree viewing angles, 8 ms response time and 72% colour gamut are listed for the panel. Infrared touch is built in, a camera is included, and the product is rated for 12/7 operation. The aluminium frame has a 14.9 mm bezel.

The WA75FX-P runs Android 15 with 128 GB of flash storage, plus Wi-Fi 6 (802.11ax) and Bluetooth. Its ports include two HDMI 2.1 inputs, one DisplayPort 1.2 input, four USB ports, stereo audio input and output, an RS232C input and an RJ45 input and output. Plan wall mounting around the 800 x 400 mm VESA pattern and 50.3 kg set weight. The 65-inch WA65FX-P is the smaller model in the same series.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits (typical)
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
50.3 kg

Key features

01
IPS 4K Panel
75-inch IPS panel at 3840 x 2160 resolution.
02
Android 15
Android 15 operating system with 128 GB flash memory.
03
Built-in Camera
a built-in camera is included with the display.
04
Brightness and Contrast
450 nits typical brightness and 1,200:1 contrast ratio.
05
HDMI 2.1 Inputs
two HDMI 2.1 inputs and one DisplayPort 1.2 input.
06
Wi-Fi 6
Wi-Fi 6 (802.11ax) and Bluetooth connectivity.
07
Infrared Touch
infrared touch technology built into the panel.
08
Operation Hours
rated for 12/7 operation.

Specifications

General
Key Features4K UHD, IPS panel, 450 nits typical, Android 15, Wi-Fi 6, built-in camera, infrared touch, 128 GB storage
ModelWA75FX-P
TypeInteractive Flat Panel
Display
Bezel Size14.9 mm
Brightness450 nits (typical)
CameraBuilt-in camera
Color Gamut72%
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Duty Cycle12/7 operation
Operating SystemAndroid 15
Storage128 GB
Connectivity
BluetoothYes
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.1 In × 2, DisplayPort 1.2 In × 1, USB × 4, Audio In and Out (stereo mini jack), RS232C In, RJ45 In and Out
Wi-FiWi-Fi 6 (802.11ax)
Power
Power Consumption440 W (on mode)
Standby Power0.5 W (sleep mode)
Physical
Dimensions1705.0 x 1036.3 x 87.1 mm
FinishAluminium frame, dark blue-gray top and bottom, black sides
Operating Humidity10% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Shipping Dimensions1860 x 1125 x 185 mm
Shipping Weight59.1 kg
VESA Mount800 x 400 mm
Weight50.3 kg
Compliance
CertificationsFCC Part 15 Subpart B, EN 55032, IEC 62368-1, UL 62368-1
