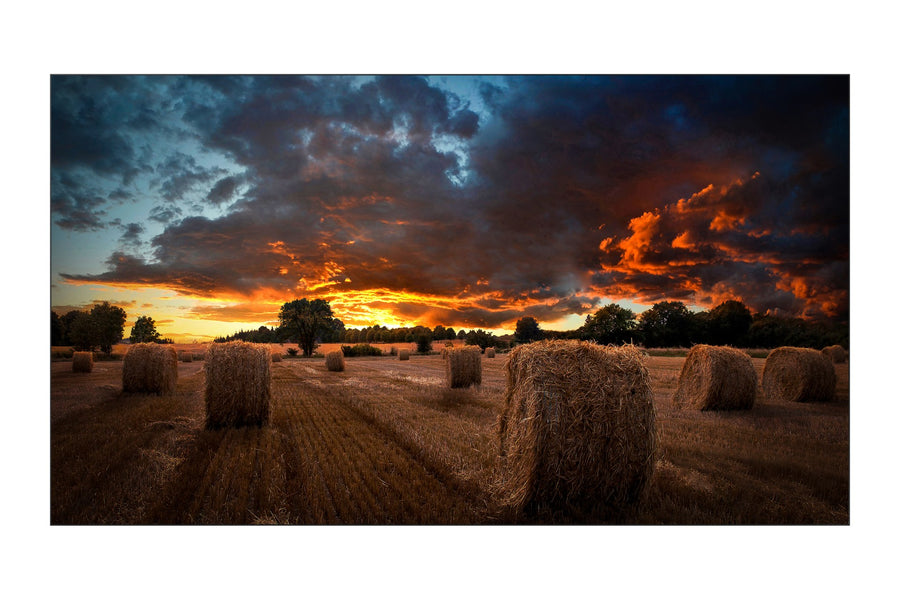

Samsung VMT-U Ultra Narrow Bezel 46-inch Video Wall Display – VM46T-U

Samsung VMT-U Ultra Narrow Bezel 46-inch Video Wall Display – VM46T-U

The Samsung VM46T-U is a 46-inch Direct LED video wall display in the VMT-U Ultra Narrow Bezel range, for signage walls and multi-panel displays. It offers 1920 x 1080 Full HD resolution, up to 500 nits brightness and bezels of 2.25 mm and 1.25 mm, with MagicInfo daisychain support. Procure.ae supplies the Samsung VM46T-U across the UAE.

The Samsung VM46T-U is a 46-inch video wall display with a Direct LED panel at 1920 x 1080 (Full HD) resolution. Brightness is listed at up to 500 nits, with a 1,200:1 contrast ratio and 45,000:1 dynamic contrast. Viewing angles are 178° horizontal and 178° vertical, the response time is 8 ms, and colour gamut is listed at 72%. The ultra-narrow bezel measures 2.25 mm on the upper/left edges and 1.25 mm on the right/bottom edges. The set is rated at 160 W in on mode and weighs 15.7 kg.

The VM46T-U suits signage walls and multi-panel video walls where 46-inch panels are needed, mounted on a VESA 600 x 400 mm pattern with no stand supplied. Its connections are two HDMI inputs, one DisplayPort input, one DVI input and one USB port, with an RJ45 connection and RS232 and IR control. MagicInfo daisychain video wall support is listed. Compared with the 55-inch VM55T-U, it is rated at 160 W in on mode against 220 W. The manufacturer also lists the codes LH46VMTUBGBXEN and LH46VMTUBGBXUE.

Screen Size
46 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Video Wall Display
Weight
15.7 kg

Key features

01
Direct LED panel
46-inch screen at 1920 x 1080 (Full HD) resolution.
02
Brightness
Listed at up to 500 nits.
03
Ultra-narrow bezel
2.25 mm and 1.25 mm bezels on opposite edge pairs.
04
Contrast and viewing
1,200:1 contrast, 45,000:1 dynamic contrast and 178° viewing angles.
05
Video wall support
MagicInfo daisychain video wall support for multi-panel setups.
06
Video inputs
Two HDMI, one DisplayPort, one DVI and one USB input.
07
Control ports
RJ45 connection, RS232 in and out, and IR input.
08
Wall mounting
VESA 600 x 400 mm mount pattern, 15.7 kg set weight, no stand supplied.

Specifications

General
Key FeaturesDirect LED panel, 2.25 mm and 1.25 mm bezels, 500 nits brightness, Full HD 1920 x 1080, MagicInfo daisychain video wall support, 178° viewing angle, 8 ms response time
ModelVM46T-U
TypeVideo Wall Display
Display
Bezel Size2.25 mm (U/L), 1.25 mm (R/B)
Brightness500 nits
Color Gamut72%
Contrast Ratio1,200:1 (dynamic 45,000:1)
Panel TechnologyDirect LED
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size46 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio OutStereo mini jack
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In × 1, DVI In × 1, USB × 1, RJ45 In, Video Out, IR In, Audio In
Serial PortRS232 In, RS232 Out (stereo mini jack)
Power
Power Consumption160 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1022 x 577 x 69.9 mm
FinishGlossy frame
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight15.7 kg
Compliance
CertificationsEMC Class A, Safety 60950-1
