Samsung · VH55T-E · Video Wall

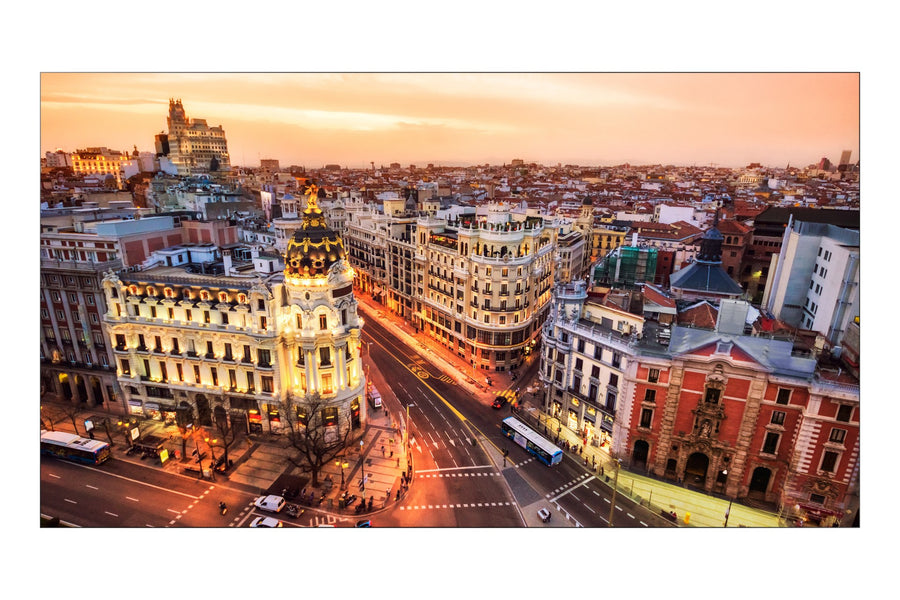

Samsung VHT-E Extreme Narrow Bezel 55-inch Video Wall Display – VH55T-E

Samsung VHT-E Extreme Narrow Bezel 55-inch Video Wall Display – VH55T-E

The Samsung VH55T-E is a 55-inch Direct LED video wall display for control rooms, corporate lobbies and retail walls. It offers 1920 x 1080 Full HD resolution, up to 700 nits brightness and 0.9 mm bezels, and supports MagicInfo daisychain video wall setups. Procure.ae supplies the Samsung VH55T-E across the UAE.

The Samsung VH55T-E is a 55-inch video wall display with a Direct LED panel at 1920 x 1080 (Full HD) resolution. Brightness is listed at up to 700 nits, with a 1,200:1 contrast ratio and 500,000:1 dynamic contrast. Viewing angles are 178° horizontal and 178° vertical, the response time is 8 ms, and colour gamut is listed at 72%. The glossy frame carries 0.9 mm bezels on the upper/left and right/bottom edges, which keeps seams narrow across a multi-panel wall. The set weighs 19.4 kg.

The VH55T-E suits video walls built from several panels on a VESA 600 x 400 mm mount pattern, with no stand supplied. Its connections are two HDMI inputs, one DisplayPort input, one DVI input, one USB port and an RJ45 connection, with RS232 and IR control. MagicInfo daisychain video wall support is listed for multi-panel setups. Compared with the VM55T-E, this model is listed at a higher maximum brightness, 700 nits against 500 nits, and is rated at 250 W in on mode against 220 W.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Type
Video Wall Display
Weight
19.4 kg

Key features

01
Direct LED panel
55-inch screen at 1920 x 1080 (Full HD) resolution.
02
Brightness
Listed at up to 700 nits.
03
Narrow bezel
0.9 mm bezels on the upper/left and right/bottom edges.
04
Video wall support
MagicInfo daisychain video wall support for multi-panel setups.
05
Contrast and viewing
1,200:1 contrast, 500,000:1 dynamic contrast and 178° viewing angles.
06
Video inputs
Two HDMI, one DisplayPort, one DVI and one USB input.
07
Control ports
RJ45 connection, RS232 in and out, and IR input.
08
Wall mounting
VESA 600 x 400 mm mount pattern, with no stand supplied.

Specifications

General
Key FeaturesDirect LED panel, 0.9 mm narrow bezels, 700 nits brightness, Full HD 1920 x 1080, MagicInfo daisychain video wall support, 178° viewing angle, 8 ms response time
ModelVH55T-E
TypeVideo Wall Display
Display
Bezel Size0.9 mm (U/L), 0.9 mm (R/B)
Brightness700 nits
Color Gamut72%
Contrast Ratio1,200:1 (dynamic 500,000:1)
Panel TechnologyDirect LED
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio OutStereo mini jack
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DP In × 1, DVI In × 1, USB × 1, RJ45 In, Video Out, IR In, Audio In
Serial PortRS232 In, RS232 Out (stereo mini jack)
Power
Power Consumption250 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1211.5 x 682.3 x 70 mm
FinishGlossy frame
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight19.4 kg
Compliance
CertificationsEMC Class A, Safety 60950-1
