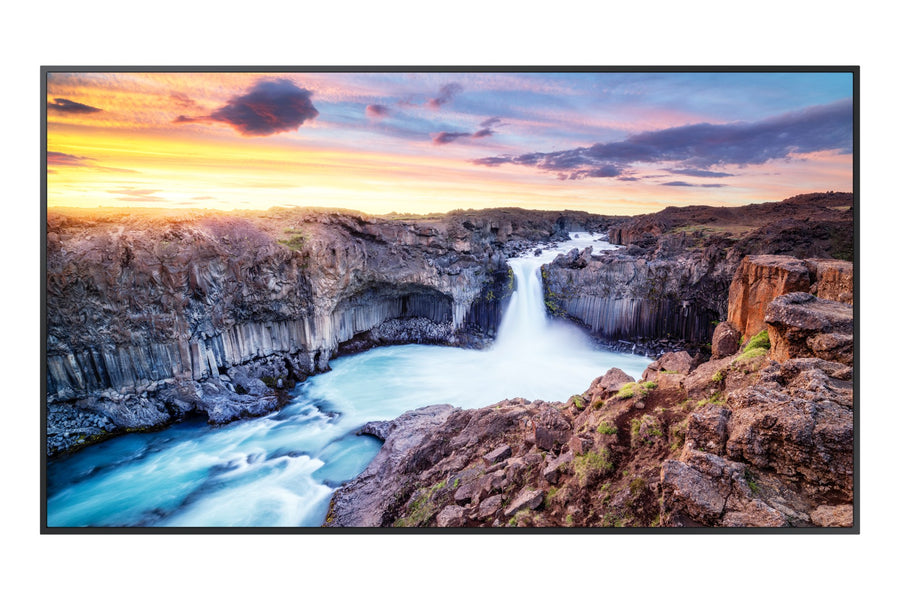

Samsung QHB Series 75-inch 4K UHD Digital Signage Display – QH75B

Samsung QHB Series 75-inch 4K UHD Digital Signage Display – QH75B

The Samsung QH75B (LH75QHBEBGCXUE) is a 75-inch 4K UHD signage display from the QHB Series, listed for 24/7 operation. It has a VA panel with 3840 x 2160 resolution, 700 nits typical brightness and a Quantum Processor 4K. Procure.ae, an authorised reseller, supplies the QH75B across the UAE.

The QH75B uses a VA panel with an 8 ms response time, a 4,000:1 contrast ratio and a 92% DCI-P3 colour gamut. Typical brightness is 700 nits, and the viewing angle is 178 degrees horizontal and vertical. The Quantum Processor 4K runs Tizen 6.5 with 16 GB of flash storage, and SmartView+ features are included. The slim, symmetrical design has a non-glossy frame and a 49.7 mm depth. It carries energy efficiency class A.

The QH75B suits lobbies, showrooms, retail floors and control rooms that run content continuously. It supports HDMI 2, DisplayPort 1.2 and HDCP 2.2, and has IR In, RS232 In and Out, and RJ45 In for control, plus Wi-Fi and Bluetooth. Its 400 x 400 mm VESA pattern supports wall and stand mounts. Unlike the QH75R, it lists 24/7 operation support, Tizen 6.5 and 16 GB storage, and it has no DVI or audio input.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
Weight
40.3 kg

Key features

01
VA panel
3840 x 2160 resolution with 4,000:1 contrast ratio.
02
Quantum Processor 4K
processor listed with 4K picture quality and SmartView+ features.
03
24/7 operation
manufacturer lists 24/7 operation time support.
04
Tizen 6.5 platform
16 GB flash memory.
05
Viewing and response
178-degree viewing angle and 8 ms response time.
06
Slim symmetrical design
non-glossy frame and 49.7 mm depth.
07
Connectivity
HDMI 2, DisplayPort 1.2, HDCP 2.2, Wi-Fi and Bluetooth.
08
Control ports
IR In, RS232 In and Out, and RJ45 In.

Specifications

General
ControlsIR In, RS232 In/Out, RJ45 In
Key FeaturesVA panel, Quantum Processor 4K, Tizen 6.5, 24/7 operation support, SmartView+ features, 16 GB storage, energy efficiency class A, Wi-Fi and Bluetooth
ModelQH75B
TypeDigital Signage Display
Display
Bezel Size11.5 mm (top, left, right), 12.5 mm (bottom)
Brightness700 nits
Color Gamut92% DCI-P3
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° (H) / 178° (V)
Performance
Duty Cycle24/7
Operating SystemTizen 6.5
ProcessorQuantum Processor 4K
Storage16 GB
Audio
Audio OutStereo mini jack
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, USB × 2, IR In, RS232 In, RS232 Out, RJ45 In, Audio Out (stereo mini jack)
ProtocolsHDMI 2, DisplayPort 1.2, HDCP 2.2
Wi-FiBuilt-in
Power
Power Consumption264 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1681.1 x 960.1 x 49.7 mm
FinishNon-glossy frame
Operating Humidity10% to 80% RH, non-condensing
VESA Mount400 x 400 mm
Weight40.3 kg
Compliance
CertificationsEMC Class B; safety 60950-1, 62368-1
