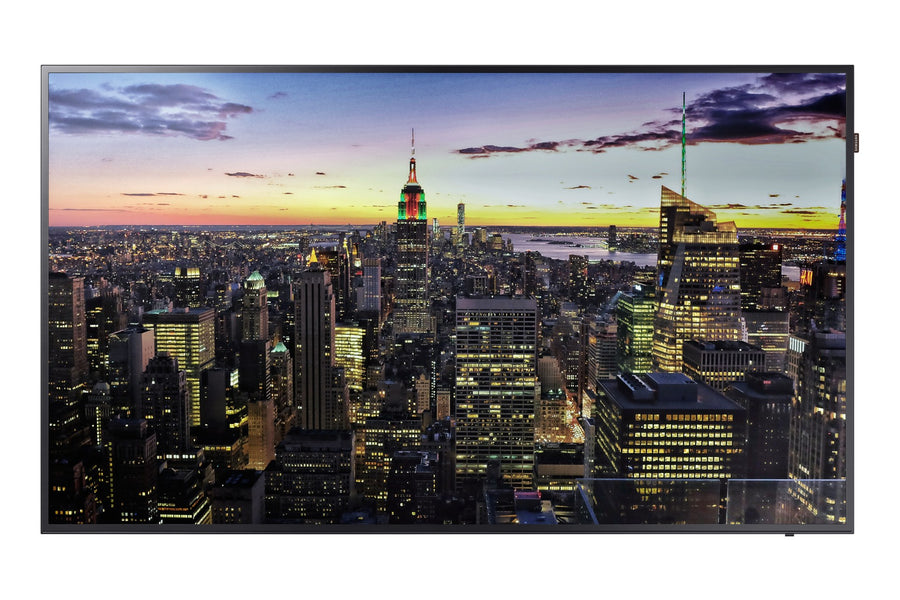

Samsung QBH Series 75-inch 4K UHD Digital Signage Display – QB75H

Samsung QBH Series 75-inch 4K UHD Digital Signage Display – QB75H

The Samsung QB75H is a 75-inch 4K UHD digital signage display with a 120 Hz refresh rate for corporate and retail spaces. It offers 3840 x 2160 resolution, 300 nits typical brightness and a 5,000:1 contrast ratio, with a DisplayPort input and Wi-Fi. Procure.ae supplies the QB75H across the UAE, with quotes, delivery and installation.

The QB75H, also listed as LH75QBHPLGC/UE, uses a DirectLED panel with 3840 x 2160 (4K UHD) resolution across 75 inches. Typical brightness is 300 nits, the contrast ratio is 5,000:1 and the viewing angle is 178 degrees horizontally and vertically. It has a 120 Hz refresh rate and a 6 ms typical response time, and covers 72% of the color gamut. Power consumption is 407 W in on mode and 0.5 W in sleep mode, and the set weighs 34.8 kg.

The QB75H suits boardrooms, large corporate reception areas, retail walls and hospitality lobbies. It mounts on a 400 x 400 mm VESA pattern and includes DisplayPort, two HDMI inputs and a DVI-D input, with RS232C in and out and RJ45 and Wi-Fi networking. Compared with the 65-inch QB65H, it has a higher contrast ratio, 5,000:1 against 4,700:1, a 120 Hz refresh rate against 60 Hz, and a 6 ms response time against 8 ms.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
300 nits
Type
Digital Signage Display
Weight
34.8 kg

Key features

01
4K UHD Resolution
3840 x 2160 pixels on a 75-inch DirectLED panel with 300 nits typical brightness.
02
120 Hz Refresh Rate
A 120 Hz refresh rate with a 6 ms typical response time.
03
High Contrast Viewing
A 5,000:1 contrast ratio with 178-degree horizontal and vertical viewing angles.
04
DisplayPort Input
A DisplayPort In alongside two HDMI inputs and one DVI-D input.
05
Wi-Fi and Wired Networking
Built-in Wi-Fi plus an RJ45 In port for network connection.
06
Serial and IR Control
RS232C In and Out ports plus IR In for control system integration.
07
Wall Mounting
A 400 x 400 mm VESA pattern, 66.0 mm set depth and 34.8 kg set weight.
08
Energy Efficiency
Rated B, with 407 W power consumption in on mode and 0.5 W in sleep mode.

Specifications

General
ApplicationDigital signage
Key Features4K UHD resolution, 300 nits typical brightness, 5,000:1 contrast ratio, 120 Hz refresh rate, 6 ms response time, DisplayPort and HDMI inputs, Wi-Fi, RS232C control
ModelQB75H
TypeDigital Signage Display
Display
BacklightDirectLED
Bezel Size16.1 mm (top and sides), 20.2 mm (bottom)
Brightness300 nits
Color Gamut72%
Contrast Ratio5,000:1
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6 ms
Screen Size75 inch
Viewing Angle178° (H) / 178° (V)
Connectivity
ConnectivityWi-Fi
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DisplayPort In, DVI-D In, USB × 2, IR In, Audio In, Audio Out (stereo mini jack), RS232 In, RS232 Out, RJ45 In
Power
Power Consumption407 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions1688.9 x 971.2 x 66.0 mm
Operating Humidity10% to 80% RH
VESA Mount400 x 400 mm
Weight34.8 kg
