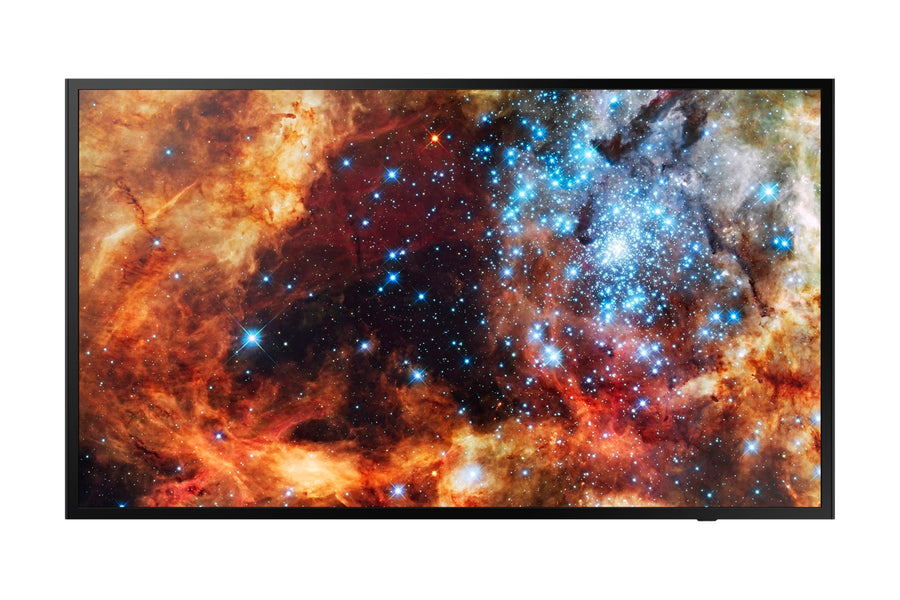

Samsung 49-inch Full HD Digital Signage Display – DB49J

Samsung 49-inch Full HD Digital Signage Display – DB49J

The Samsung DB49J is a 49-inch Full HD digital signage display with a direct LED backlight, 300 nits typical brightness and a 3,000:1 contrast ratio. It suits menu boards, reception areas and corporate information screens, and it has Wi-Fi and RS232 control. Procure.ae supplies the Samsung DB49J in the UAE.

The DB49J has a 49-inch 1920 x 1080 panel with a 60 Hz direct LED backlight, 300 nits typical brightness and a 3,000:1 contrast ratio with MEGA DCR dynamic contrast. Response time is 8 ms, and colour gamut is 72%. Audio input and a stereo mini-jack audio output are included. The set draws 121 W in on mode and under 0.5 W in sleep mode, on a 100–240 V AC supply at 50/60 Hz.

Connections include two HDMI inputs, one DVI input, one USB port, RS232 in and out ports, an RJ45 LAN input and Wi-Fi, so the display can be managed over the network. The manufacturer's specifications list MagicInfo daisy-chain videowall support as not available. The bezel measures 17.4 mm at the top, 18.5 mm at the bottom and 21.5 mm on each side, and the 200 x 200 mm VESA pattern supports wall mounting for a 10.2 kg set. Compared with the DC49J, it adds Wi-Fi and audio input but lacks the component and composite inputs that the DC49J has.

Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
300 nits (typical)
Type
Digital Signage Display
Weight
10.2 kg

Key features

01
Full HD panel
A 1920 x 1080 resolution on a 49-inch screen.
02
Direct LED backlight
A 60 Hz refresh rate with 300 nits typical brightness.
03
Contrast
A 3,000:1 contrast ratio with MEGA DCR dynamic contrast.
04
Response time
An 8 ms response time and 72% colour gamut.
05
Network connectivity
Wi-Fi and an RJ45 LAN input.
06
Serial control
RS232 in and out ports.
07
Audio
An audio input and a stereo mini-jack audio output.

Specifications

General
Key FeaturesFull HD 1920 x 1080 panel, direct LED backlight, 3,000:1 contrast ratio with MEGA DCR, Wi-Fi, RS232 control, audio in and out, 200 x 200 mm VESA
ModelDB49J
TypeDigital Signage Display
Display
BacklightDirect LED
Bezel SizeTop 17.4 mm, bottom 18.5 mm, sides 21.5 mm
Brightness300 nits (typical)
Color Gamut72%
Contrast Ratio3,000:1
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size49 inch
Viewing Angle178° (H) / 178° (V)
Audio
Audio InStereo mini-jack
Audio OutStereo mini-jack
Connectivity
EthernetRJ45 LAN input
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, DVI In × 1, USB × 1, Audio In (stereo mini-jack), Audio Out (stereo mini-jack), RS232 In × 1, RS232 Out × 1, RJ45 In × 1
Serial PortRS232 in and RS232 out
Wi-FiYes
Power
Power Consumption121 W (on mode)
Standby Power0.5 W (sleep mode)
Physical
FinishGlossy frame
Operating Humidity10% to 80% RH, non-condensing
VESA Mount200 x 200 mm
Weight10.2 kg
Compliance
CertificationsFCC Part 15 Class A, CE EMC, CB (IEC 60950-1)
