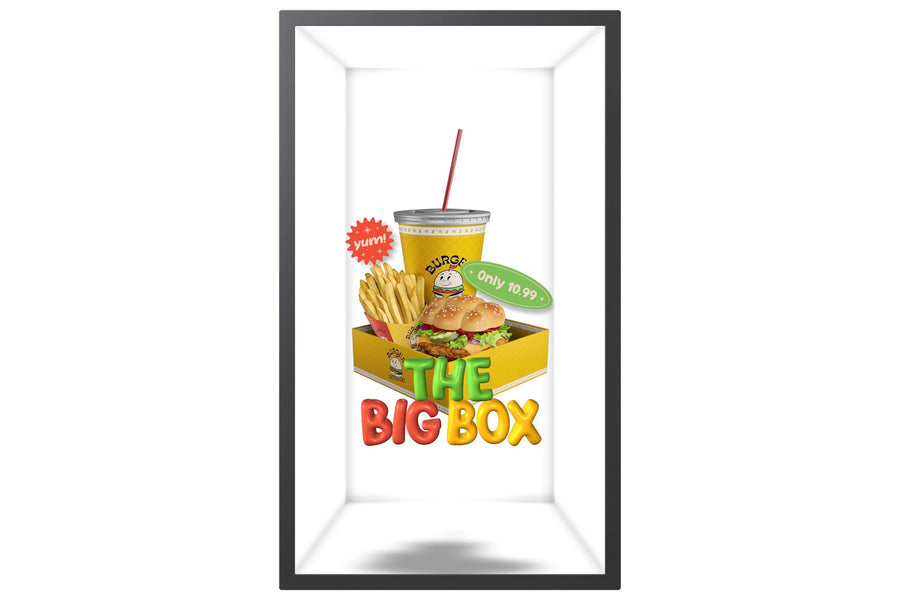

Samsung 32-inch SM32HX-P Spatial Signage Display – SM32HX-P

Samsung 32-inch SM32HX-P Spatial Signage Display – SM32HX-P

The Samsung SM32HX-P is a 32-inch Full HD (1920 x 1080) spatial signage display for retail, hospitality and corporate environments that need 24/7 operation. It offers 500 nits typical brightness, a 4,000:1 contrast ratio and Tizen 7.0 with Wi-Fi. Procure.ae supplies the Samsung SM32HX-P in the UAE with delivery and installation.

The Samsung SM32HX-P is a 32-inch Full HD (1920 x 1080) spatial signage display with a VA panel. It provides 500 nits typical brightness, a 4,000:1 contrast ratio and a 178-degree viewing angle horizontally and vertically. The 8 ms response time and 72% NTSC colour coverage support video and motion content. The manufacturer lists Mega dynamic contrast and 24/7 operation support, with 16 GB of storage on the Tizen 7.0 operating system.

The SM32HX-P fits retail windows, hospitality areas and corporate spaces where a compact, continuously running display is needed. It has three HDMI inputs, one DisplayPort input, Wi-Fi, Bluetooth and an RJ45 network port, with RS232 and IR control for integration. It mounts on a 100 x 100 mm VESA pattern. The 55-inch and 85-inch SMHX-P models in the same range offer larger screens for the same type of use.

Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Spatial Signage Display
Weight
8.5 kg

Key features

01
Full HD Resolution
1920 x 1080 pixels on a 32-inch VA panel.
02
Wide Viewing Angle
178 degrees horizontal and vertical viewing angle.
03
24/7 Operation
Operation time support rated at 24/7 by the manufacturer.
04
Multiple Inputs
Three HDMI inputs and one DisplayPort input (HDCP 2.2).
05
Wireless Connectivity
Wi-Fi and Bluetooth built in, with an RJ45 network port.
06
Control Options
RS232 in and out ports and an IR input for control.
07
Tizen 7.0 Platform
Built-in Tizen 7.0 operating system with 16 GB storage.

Specifications

General
Key Features24/7 operation support, Mega dynamic contrast, HDCP 2.2, Wi-Fi and Bluetooth, RS232 and IR control, Tizen 7.0 OS, Non-glossy frame, Energy class C
ModelSM32HX-P
TypeSpatial Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Gamut72%
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size32 inch
Viewing Angle178° / 178°
Performance
Operating SystemTizen 7.0
Storage16 GB
Connectivity
BluetoothBluetooth
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, USB × 2, RJ45 In × 1, RS232 In × 1, RS232 Out × 1, IR In × 1, Stereo Mini Jack audio out
Wi-FiWi-Fi
Power
Power Consumption100 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions436.8 x 742.3 x 49.4 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount100 x 100 mm
Weight8.5 kg
