Roland VC-100UHD 4K Video Scaler/Converter/Streamer

PRODUCT OVERVIEW

Scale, Convert, and Stream

Introducing the Roland VC-100UHD, a next-generation A/V signal management solution for live events, fixed installations, and livestreaming. Built on a reliable hardware platform for mission-critical applications, this powerhouse processor combines multiple single-task technologies in a compact and flexible half-rack design. With Roland’s Ultra Scaler on board, the VC-100UHD supports simultaneous scaling and conversion to multiple destinations, including 4K LED walls, HD displays, USB livestreams, and more.

System Program Version 1.20

Version 1.20 update improves usability of Region of Interest function by USB numeric keyboard directly connected, adds 1080p/100Hz and 1080p/200Hz of EDID, support HDR input of HDMI, and motion scroll mode of test pattern.

Process Images for Multiple Audiences at Once

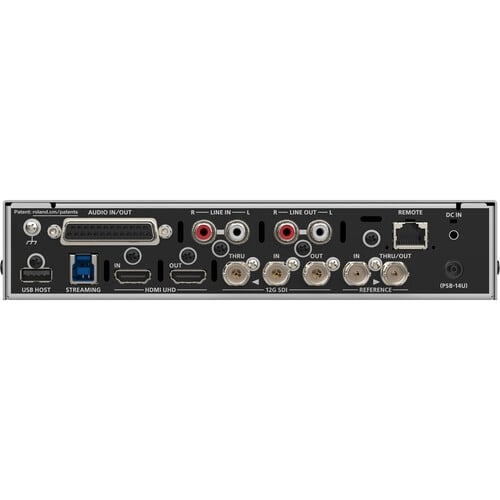

Using the VC-100UHD, it’s a simple task to send 4K and 1080p video to multiple destinations at one time, including pixel-hungry LED walls, tech operator displays and recorders, and USB webcam streams for online viewing. With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs.

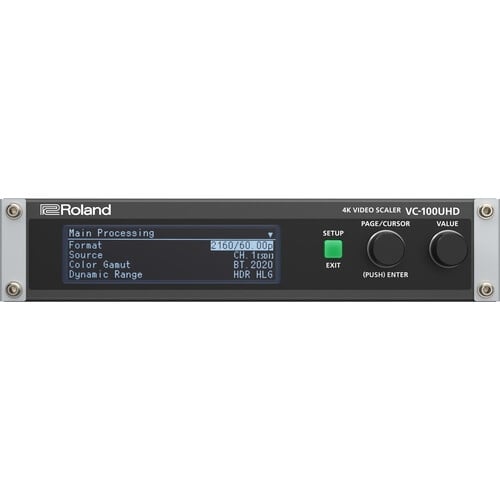

Front Panel Graphic LCD

With a high-precision graphic LCD and a sophisticated menu structure, all functions can be operated and set using the VC-100UHD itself without an external control device. On the HDMI input signal status screen, you can check the resolution, frame rate, HDCP status, color space, bit depth, color gamut, dynamic range, and audio level of each 8 channels input. In addition, the system message log screen makes troubleshooting easier.

• Professional A/V signal management in a compact and robust unit
• Features 12G-SDI and HDMI 2.0 I/O with Roland’s Ultra Scaler video processing technology
• YCbCr4:2:2 10-bit HDMI/SDI Input, Output, and 10-bit Processing
• Display processing for multiple audiences: 4K, HD, and web streaming
• UPDATE High frame rate support at 100, 120, 144, 200 and 240 Hz
• Advanced visual effects and image processing
• NEW Region of Interest Switching by USB Numeric Keypad
• Professional audio processing with flexible patching
• USB 3.0 webcam output for livestreaming broadcasts
• Front Panel Menu LCD
