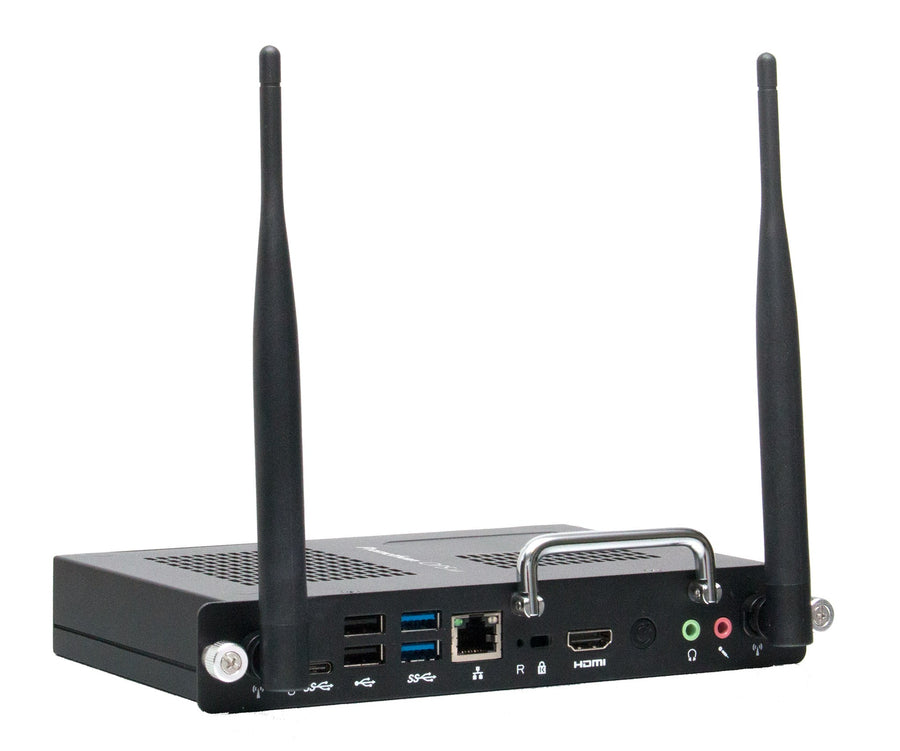

Promethean OPS-M4 i7 Slot-in Computing Module – OPS4-7P16R256SVE
The Promethean OPS4-7P16R256SVE is an OPS-M4 i7 slot-in computing module with a 12th Gen Intel Core i7, 16 GB DDR4 memory and a 256 GB NVMe SSD. The listed operating system is Windows 11 Pro, and the module is built for ActivPanel displays in schools using the Microsoft ecosystem. Procure.ae supplies it in the UAE as an authorised reseller.
The OPS4-7P16R256SVE is built on the Intel Core i7 12th Gen Alder Lake-U platform, with Intel Iris Xe Graphics that supports 4K at 60 Hz. It has 16 GB of DDR4 memory at 3200 MHz across two modules and a 256 GB NVMe SSD. Windows 11 Pro is listed as the operating system, and TPM vPro 2.0 is included. Connectivity covers 10/100/1000 Mbps Ethernet, Wi-Fi 6E (AX200) and Bluetooth 5.3, and the module is listed as touchscreen compatible. The manufacturer lists the alternate code OPS4-7P16R256S-WIN with this model.
Promethean describes the module as purpose-built for schools using the Microsoft ecosystem, and says it slots directly into the ActivPanel. Compared with the OPS-M4 i5 modules, the i7 models have 16 GB of memory instead of 8 GB. Ports are two USB-C with Thunderbolt and DisplayPort Alt mode, two USB 3.0, two USB 2.0, one HDMI Out up to 4K and one HDMI In up to 4K.
Key features
Specifications
| Key Features | Intel Core i7 12th Gen, 16 GB DDR4, 256 GB NVMe SSD, Windows 11 Pro, Wi-Fi 6E, Bluetooth 5.3, TPM vPro 2.0, 3-year warranty |
| Model | OPS4-7P16R256SVE |
| Type | OPS Computing Module |
| What's in the Box | OPS-M module, antenna × 2, installation guide |
| Touchscreen | Compatible |
| Graphics | Intel Iris Xe Graphics (4K at 60 Hz) |
| Operating System | Windows 11 Pro |
| Processor | Intel Core i7 12th Gen (Alder Lake-U) |
| RAM | 16 GB DDR4, 3200 MHz |
| Storage | 256 GB SSD (NVMe) |
| Storage Conditions | -20 to 60 °C; 10% to 90% humidity |
| Bluetooth | Bluetooth 5.3 |
| Connectivity | Ethernet 10/100/1000 Mbps, Wi-Fi 6E (AX200), Bluetooth 5.3 |
| Ethernet | 10/100/1000 Mbps |
| Input Voltage | 12-19 V DC |
| OPS Slot | Slot-in module for ActivPanel |
| Ports | HDMI In × 1 (up to 4K, HDMI 1.4), HDMI Out × 1 (up to 4K, HDMI 2.0), USB 2.0 × 2, USB 3.0 × 2, USB-C × 2 (USB 4.0 Gen 3x2, Thunderbolt, DP Alt), 3.5 mm combined audio × 1 |
| Wi-Fi | Wi-Fi 6E (AX200) |
| Power Consumption | 69 W |
| Standby Power | 0.5 W |
| Dimensions | 200 x 120 x 30 mm |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 268 x 216 x 55 mm |
| Shipping Weight | 1.1 kg |
| Weight | 0.7 kg |
| Certifications | CB, CE, FCC, RCM, UL, RoHS |
| Security Features | TPM vPro 2.0 |
| Warranty | 3 years |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
