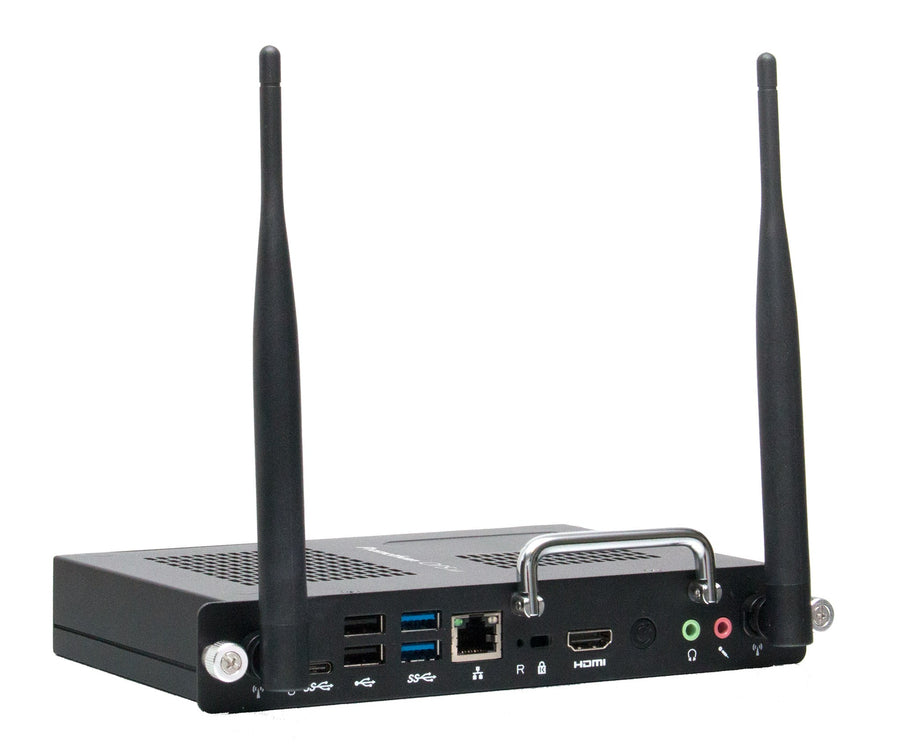

Promethean OPS-M4 i7 Slot-in Computing Module – OPS4-7P16R256S-WIN
The Promethean OPS4-7P16R256S-WIN is an OPS-M4 i7 slot-in PC with a 12th Gen Intel Core i7, 16 GB DDR4 memory and a 256 GB NVMe SSD. It runs Windows 11 Pro and slots into ActivPanel displays for schools using the Microsoft ecosystem. Procure.ae supplies it in the UAE as an authorised reseller.
The OPS4-7P16R256S-WIN uses the Intel Core i7 12th Gen Alder Lake-U platform with Intel Iris Xe Graphics, which supports 4K at 60 Hz. It has 16 GB of DDR4 memory at 3200 MHz across two modules and a 256 GB NVMe SSD. Windows 11 Pro is the listed operating system, and TPM vPro 2.0 is included. Networking covers 10/100/1000 Mbps Ethernet, Wi-Fi 6E (AX200) and Bluetooth 5.3, and the module is listed as touchscreen compatible. The manufacturer lists the alternate code OPS4-7P16R256SVE for this module.
Promethean describes the OPS-M4 range as purpose-built for schools using the Microsoft ecosystem, and says the module slots directly into the ActivPanel for a seamless, all-in-one, large-format experience. Compared with the OPS-M4 i5 modules, the i7 models have 16 GB of memory and list Windows 11 Pro as the operating system. Ports include two USB-C with Thunderbolt and DisplayPort Alt mode, two USB 3.0, two USB 2.0 and one HDMI Out up to 4K.
Key features
Specifications
| Key Features | Intel Core i7 12th Gen, 16 GB DDR4, 256 GB NVMe SSD, Windows 11 Pro, Wi-Fi 6E, Bluetooth 5.3, TPM vPro 2.0, 3-year warranty |
| Model | OPS4-7P16R256S-WIN |
| Type | OPS Computing Module |
| What's in the Box | OPS-M module, antenna × 2, installation guide |
| Touchscreen | Compatible |
| Graphics | Intel Iris Xe Graphics (4K at 60 Hz) |
| Operating System | Windows 11 Pro |
| Processor | Intel Core i7 12th Gen (Alder Lake-U) |
| RAM | 16 GB DDR4, 3200 MHz |
| Storage | 256 GB SSD (NVMe) |
| Storage Conditions | -20 to 60 °C; 10% to 90% humidity |
| Bluetooth | Bluetooth 5.3 |
| Connectivity | Ethernet 10/100/1000 Mbps, Wi-Fi 6E (AX200), Bluetooth 5.3 |
| Ethernet | 10/100/1000 Mbps |
| Input Voltage | 12-19 V DC |
| OPS Slot | Slot-in module for ActivPanel |
| Ports | HDMI In × 1 (up to 4K, HDMI 1.4), HDMI Out × 1 (up to 4K, HDMI 2.0), USB 2.0 × 2, USB 3.0 × 2, USB-C × 2 (USB 4.0 Gen 3x2, Thunderbolt, DP Alt), 3.5 mm combined audio × 1 |
| Wi-Fi | Wi-Fi 6E (AX200) |
| Power Consumption | 69 W |
| Standby Power | 0.5 W |
| Dimensions | 200 x 120 x 30 mm |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 268 x 216 x 55 mm |
| Shipping Weight | 1.1 kg |
| Weight | 0.7 kg |
| Certifications | CB, CE, FCC, RCM, UL, RoHS |
| Security Features | TPM vPro 2.0 |
| Warranty | 3 years |
