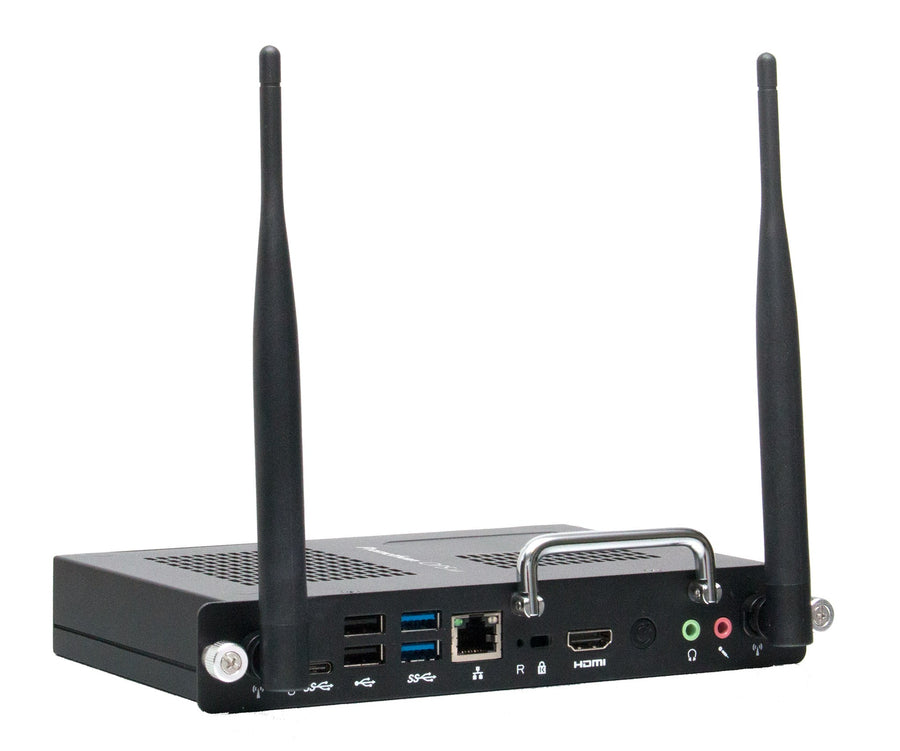

Promethean OPS-M4 i5 Slot-in Computing Module – OPS4-5P8R256SV

The Promethean OPS4-5P8R256SV is an OPS-M4 i5 slot-in computing module for ActivPanel interactive displays. It has a 12th Gen Intel Core i5, 8 GB DDR4 memory and a 256 GB NVMe SSD, and it is built for schools using the Microsoft ecosystem. Procure.ae supplies the module in the UAE as an authorised reseller.

The OPS4-5P8R256SV is built on the Intel Core i5 12th Gen Alder Lake-U platform, with Intel Iris Xe Graphics that supports 4K at 60 Hz. It has 8 GB of DDR4 memory at 3200 MHz across two modules and a 256 GB NVMe SSD. TPM vPro 2.0 is listed, and the module is compatible with touchscreens. Connectivity includes 10/100/1000 Mbps Ethernet, Wi-Fi 6E (AX200) and Bluetooth 5.3. The manufacturer lists the codes OPS4-5P8R256S and OPS4-5P8R256S-WIN for the same module.

Promethean describes the module as purpose-built for schools using the Microsoft ecosystem, and says it slots directly into the ActivPanel. It is available with Windows 11 Pro or without an operating system. Ports are one HDMI In (up to 4K), one HDMI Out (up to 4K, HDMI 2.0), two USB 3.0, two USB 2.0, two USB-C with Thunderbolt and DisplayPort Alt mode, and a combined 3.5 mm audio port. The standard warranty is three years.

Type

OPS Computing Module

Weight

0.7 kg

Key features

Intel Core i5, 12th Gen

Alder Lake-U platform with Intel Iris Xe Graphics that supports 4K at 60 Hz.

8 GB DDR4 memory

Two modules at 3200 MHz, with a 256 GB NVMe SSD for storage.

256 GB NVMe storage

Solid-state storage on an NVMe interface for the OPS module.

ActivPanel slot-in

Slots directly into the ActivPanel for an all-in-one, large-format experience.

Ports for AV and peripherals

Two USB-C with Thunderbolt, two USB 3.0, two USB 2.0 and HDMI Out up to 4K.

Compact design

Measures 200 x 120 x 30 mm and weighs 0.7 kg, according to the manufacturer.

Specifications

General
Key Features	Intel Core i5 12th Gen, 8 GB DDR4, 256 GB NVMe SSD, 4K HDMI out, Wi-Fi 6E, Bluetooth 5.3, TPM vPro 2.0, 3-year warranty
Model	OPS4-5P8R256SV
Type	OPS Computing Module
What's in the Box	OPS-M module, antenna × 2, installation guide

Display
Touchscreen	Compatible

Performance
Graphics	Intel Iris Xe Graphics (4K at 60 Hz)
Operating System	Windows 11 Pro (optional), or without OS
Processor	Intel Core i5 12th Gen (Alder Lake-U)
RAM	8 GB DDR4, 3200 MHz
Storage	256 GB SSD (NVMe)
Storage Conditions	-20 to 60 °C; 10% to 90% humidity

Connectivity
Bluetooth	Bluetooth 5.3
Connectivity	Ethernet 10/100/1000 Mbps, Wi-Fi 6E (AX200), Bluetooth 5.3
Ethernet	10/100/1000 Mbps
Input Voltage	12-19 V DC
OPS Slot	Slot-in module for ActivPanel
Ports	HDMI In × 1 (up to 4K, HDMI 1.4), HDMI Out × 1 (up to 4K, HDMI 2.0), USB 2.0 × 2, USB 3.0 × 2, USB-C × 2 (USB 4.0 Gen 3x2, Thunderbolt, DP Alt), 3.5 mm combined audio × 1
Wi-Fi	Wi-Fi 6E (AX200)

Power
Power Consumption	68 W
Standby Power	0.5 W

Physical
Dimensions	200 x 120 x 30 mm
Operating Humidity	10% to 90% RH
Operating Temperature	0 to 40 °C
Shipping Dimensions	268 x 216 x 55 mm
Shipping Weight	1.1 kg
Weight	0.7 kg

Compliance
Certifications	CB, CE, FCC, RCM, UL, RoHS
Security Features	TPM vPro 2.0
Warranty	3 years
