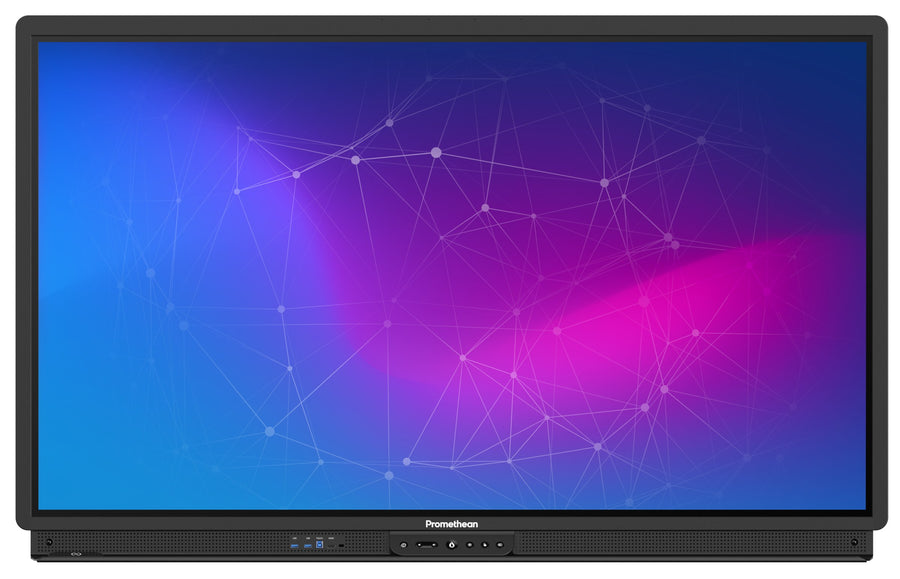

Promethean ActivPanel 9 Premium 75-inch Interactive Flat Panel – AP9-B75
The Promethean ActivPanel 9 Premium 75-inch (AP9-B75) is a discontinued 4K UHD interactive flat panel for classrooms and meeting rooms. It has 20-point touch, a subwoofer, a microphone array and 8 GB RAM with 64 GB storage. Procure.ae, an authorised reseller, supplies it in the UAE with delivery and installation.
The AP9-B75 has a 75-inch 16:9 panel with 3840 x 2160 (4K UHD) resolution at 60 Hz, rated at 400 nits brightness and a 5,000:1 dynamic contrast ratio. The 10-bit panel shows 1.07 billion colours with an 8 ms LCD response time. Touch uses 20 continuous touch points, with 5 ms or less touch response and 1 mm accuracy. Palm rejection covers both writing and non-writing hands, and four pens and a block eraser are included.
The panel runs ActivPanel OS, an Android-based system with 8 GB RAM and 64 GB internal storage. It has rear HDMI 2.0 and 2.1 inputs, a front HDMI 2.0 input, DisplayPort 1.2, VGA and USB-C with 100 W Power Delivery. It supports Windows 7 to 11, macOS, Linux Ubuntu 20.04 LTS and Chrome OS, and includes ActivInspire Professional. The 800 x 400 mm VESA pattern suits wall mounting. Its front speakers are rated 2 x 18 W, with a 1 x 15 W subwoofer.
Key features
Specifications
| Compatibility | Windows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS, Chrome OS |
| Key Features | 4K UHD, 20-point touch, 400 nits, 8 GB RAM, 64 GB storage, microphone array, subwoofer, ActivInspire Professional |
| Model | AP9-B75 |
| Type | Interactive Flat Panel |
| What's in the Box | ActivPanel 9 Premium panel, 3 m HDMI cable, 3 m USB cable (A-B), 3 m power cable, 2 m USB-C cable, remote control, remote batteries, 4 pens, block eraser, 4 VESA mount screws (M6), mini PC bracket |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits |
| Color Depth | 10-bit (1.07 billion colours) |
| Contrast Ratio | 5,000:1 dynamic, 1,200:1 static |
| Panel Technology | TFT LCD (direct LED backlight) |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Accuracy | 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | 5 ms or less |
| Operating System | ActivPanel OS (Android-based) |
| RAM | 8 GB |
| Storage | 64 GB |
| Audio In | 3.5 mm AV-in, mic and PC audio |
| DisplayPort | DisplayPort 1.2 × 1 |
| Microphone | Microphone array |
| Speaker Output | 2 x 18 W front, 1 x 15 W subwoofer |
| Bluetooth | Bluetooth 5.0 |
| Ethernet | 1 Gbps LAN in and out (RJ45), Wake-on-LAN |
| HDMI Inputs | HDMI 2.0 × 2, HDMI 2.1 × 1 (2 rear, 1 front) |
| Input Voltage | 100–240 V AC |
| USB Ports | USB-A 3.2 Gen 1 × 4 (2 front, 2 rear), USB-A 2.0 × 1, USB-B 3.2 Gen 1 touch × 4 (1 front, 3 rear) |
| USB-C Ports | USB-C 3.2 Gen 1 × 1 (rear, 100 W Power Delivery) |
| VGA Input | VGA In × 1 |
| Power Consumption | 163 W (typical) |
| Dimensions | 1730 x 1070 x 86 mm |
| Operating Temperature | 0 to 40 °C |
| Surface Protection | 9H (pencil), 7 (Mohs), heat-tempered, anti-glare, anti-fingerprint glass |
| VESA Mount | 800 x 400 mm |
| Weight | 57.8 kg |
| Certifications | CE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR |
| Security Features | Trusted Platform Module, cloud-based user profiles |
