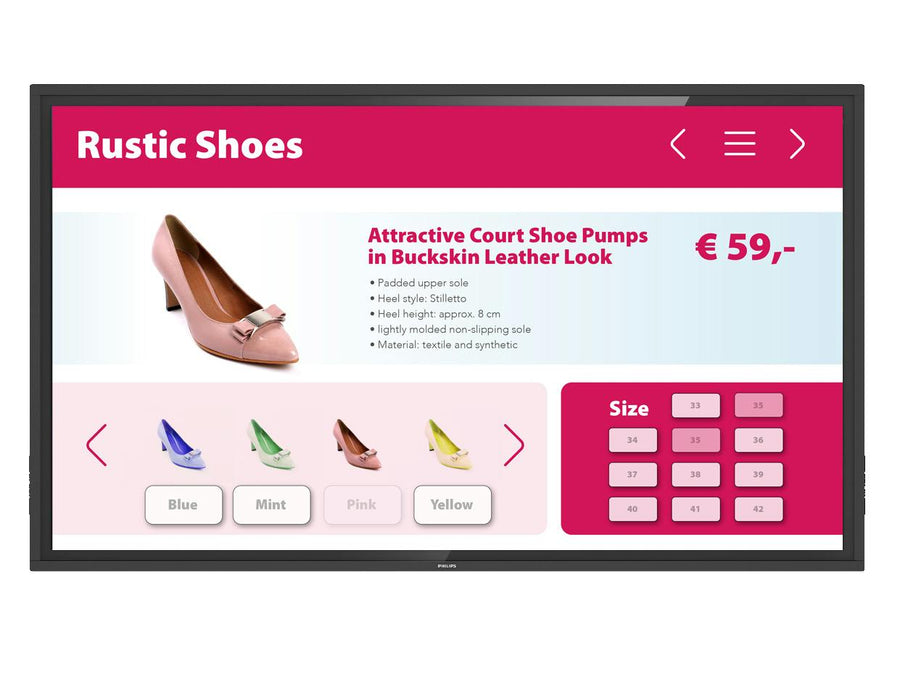

Philips T-Line 55-inch 4K UHD Interactive Flat Panel – 55BDL3452T/00

Philips T-Line 55-inch 4K UHD Interactive Flat Panel – 55BDL3452T/00

The Philips 55BDL3452T/00 is a 55-inch 4K UHD interactive flat panel for meeting rooms, training suites and large collaboration spaces. It offers 20-point infrared multi-touch, a 3840 x 2160 IPS panel with 400 nits brightness and Android 8.0. Procure.ae supplies the Philips 55BDL3452T/00 across the UAE.

The 55BDL3452T/00 uses a 55-inch IPS panel at 3840 x 2160 resolution with a 60 Hz refresh rate, 178-degree viewing angles and 1,300:1 typical contrast. Its infrared touch layer supports up to 20 simultaneous touch points, so larger groups can write, annotate and navigate content together. The 8 ms typical response time and 3 mm tempered safety glass front suit collaboration and presentation use. Two 10 W speakers are built in, and the panel supports landscape and portrait placement.

The panel runs Android 8.0 with 2 GB RAM and 8 GB storage, and it has an OPS slot for a compatible computing module. It accepts HDMI 2.0, DVI-D and VGA sources and supports network control through RJ45, RS232C and IR. Power consumption is rated at 140 W typical and 270 W maximum. It weighs 27.0 kg and mounts on a 400 x 400 mm VESA pattern, so plan for a heavier bracket than the 43-inch models in the series.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
Type
Interactive Flat Panel
Weight
27.0 kg

Key features

01
20-Point Infrared Touch
supports up to 20 simultaneous touch points.
02
4K UHD IPS Panel
3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles.
03
Android 8.0 Platform
built-in operating system with 2 GB RAM and 8 GB storage.
04
OPS Slot
accepts a compatible OPS computing module for PC-based content.
05
Dual-Band Wi-Fi
2.4 GHz and 5 GHz wireless connectivity for network management.
06
Built-In Speakers
two 10 W speakers with 3.5 mm audio input and output jacks.
07
Flexible Control
RJ45, RS232C and IR control with IR and RS232 signal loop-through.
08
Multiple Inputs
HDMI 2.0 x 2, DVI-D and VGA inputs for laptops and room PCs.

Specifications

General
Key Features20-point infrared multi-touch, 4K UHD IPS panel, Android 8.0, Dual-band Wi-Fi, OPS slot, Built-in 2 x 10 W speakers, RJ45 and RS232C control, Landscape or portrait placement
Model55BDL3452T/00
TypeInteractive Flat Panel
What's in the BoxCleaning cloth, IR sensor cable, power cable, RS232 cable, RS232 daisy chain cable, remote control, quick start guide
Display
Aspect Ratio16:9
Bezel Size16.3 mm
Brightness400 nits
Contrast Ratio1,300:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° horizontal and vertical
Performance
Operating SystemAndroid 8.0
RAM2 GB
Storage8 GB
Audio
Speaker Output2 x 10 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS slot supported
PortsHDMI 2.0 × 2, DVI-D × 1, VGA × 1, USB 2.0 Type A × 2, USB 2.0 Type B × 1, RJ45, RS232C, IR
Wi-FiDual-band 2.4 GHz / 5 GHz
Power
Power Consumption140 W (typical), 270 W (max)
Physical
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight27.0 kg
Compliance
CertificationsCE, FCC Class A, RoHS, CB, ETL, BSMI
Warranty3 years
