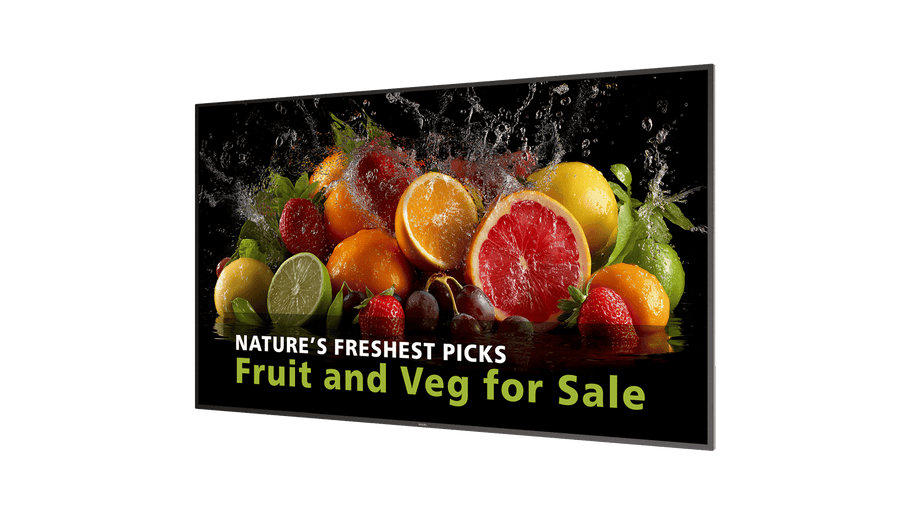

Philips Signage 5000 86-inch 4K UHD Digital Signage Display – 86BDL5050D/00
The Philips 86BDL5050D/00 is an 86-inch 4K UHD digital signage display from the Philips Signage 5000 series. It runs Android 14, has 600 nits brightness and an ADS panel, and supports Wi-Fi 6 and Bluetooth 5.2 through an included CRD32 module. Procure.ae supplies it across the UAE for businesses and venues that run 24/7 content.
The 86BDL5050D/00 combines a 3840 x 2160 ADS panel with 600 nits typical brightness, 1,200:1 typical contrast and 178-degree viewing angles. Its octa-core processor (4 x A72 + 4 x A53) runs Android 14 with 4 GB RAM and 32 GB storage. Built-in 2 x 10 W RMS speakers are fitted, and an IP5X rating is listed. The 8 ms typical response time and 24/7 landscape or portrait operation suit continuous content.
It suits lobbies, showrooms, hospitality venues and campus areas where a single screen runs signage, menus or information loops. Control options are RS232C, RJ45 and IR, and a 4G/LTE mPCIe slot and Micro USB OTG port are provided. Mounting is a 600 x 400 mm VESA pattern with M8 fixings. Compared with the 86BDL4511D/00, this model adds Android 14, Wi-Fi 6 through the CRD32 module, a DisplayPort 1.4 input and a USB-C input.
Key features
Specifications
| Key Features | Android 14, Wi-Fi 6 and Bluetooth 5.2 via CRD32, 4G/LTE mPCIe slot, tiled matrix up to 10 x 15, IP5X, Pixel Shift, Smart Power |
| Model | 86BDL5050D/00 |
| Type | Digital Signage Display |
| What's in the Box | CRD32 Wi-Fi and Bluetooth module, remote control with AAA batteries, RS232 cable, IR sensor cable, AC power cord, quick start guide |
| Aspect Ratio | 16:9 |
| Bezel Size | 15.5 mm (even bezel) |
| Brightness | 600 nits |
| Color Depth | 1.07 billion colours |
| Contrast Ratio | 1,200:1 (typical) |
| Panel Technology | ADS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 85.6 inch |
| Viewing Angle | 178° horizontal / 178° vertical |
| Operating System | Android 14 |
| Processor | 4 x A72 + 4 x A53 (RK3576 + MT9800) |
| RAM | 4 GB |
| Storage | 32 GB |
| Speaker Output | 2 x 10 W RMS |
| Bluetooth | Bluetooth 5.2 (via CRD32 module) |
| Connectivity | Wi-Fi 6, Bluetooth 5.2, RJ45, RS232C, IR, 4G/LTE mPCIe slot |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | DisplayPort 1.4 In × 1, HDMI 2.0 In × 2, USB-C In × 1 (4.5 W), USB 3.0 × 2, Micro USB (OTG), HDMI 2.0 Out × 1, RJ45, RS232C, IR |
| Wi-Fi | Wi-Fi 6 (via CRD32 module) |
| Power Consumption | 153 W (EEI rating) |
| Standby Power | <0.5 W |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| VESA Mount | 600 x 400 mm |
| Weight | 48.31 kg |
| Certifications | CE, RoHS, CB |
| IP Rating | IP5X |
| Warranty | 3 years |
