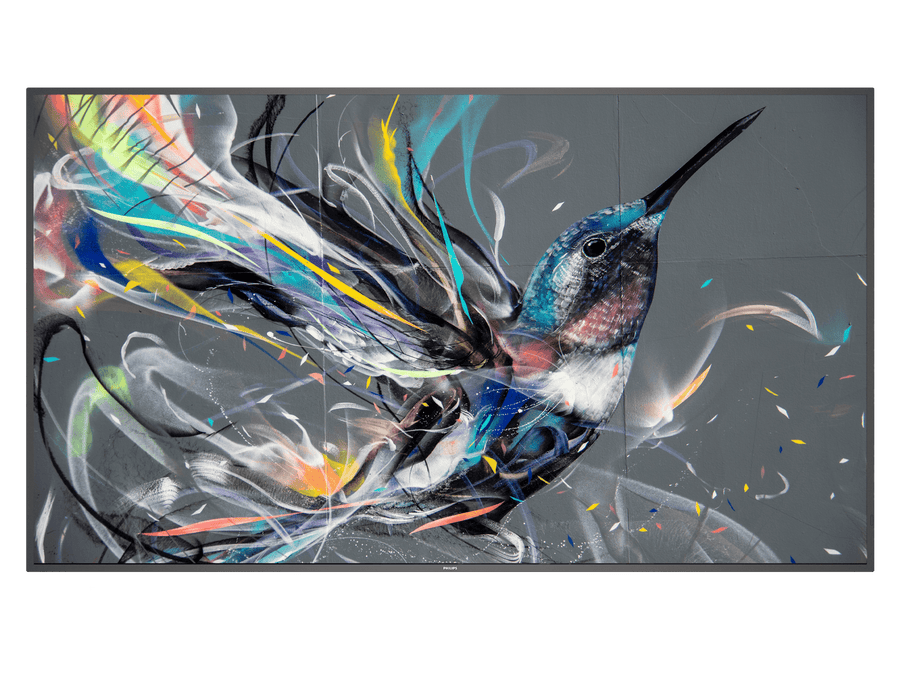

Philips Signage 3000 Series 75-inch 4K UHD Digital Signage Display – 75BDL3550Q/00

Philips Signage 3000 Series 75-inch 4K UHD Digital Signage Display – 75BDL3550Q/00

The Philips 75BDL3550Q/00 is a 75-inch 4K UHD Q-Line display for 18/7 business and public signage. It has 3840 x 2160 resolution, 400 nits brightness, an ADS panel and Android 8.0, with support for tiled video walls of up to 15 x 15 displays. Procure.ae supplies the Philips 75BDL3550Q/00 across the UAE.

The 75BDL3550Q/00 has a 74.5-inch (189.3 cm) 4K UHD ADS panel with 3840 x 2160 resolution, 400 nits brightness and a 1,200:1 typical contrast ratio. Its response time is 8 ms typical, and viewing angles are 178 degrees horizontal and vertical. The 500,000:1 dynamic contrast ratio and enhancement features such as dynamic contrast enhancement and progressive scan support clear moving content. Two 10 W RMS speakers are built in, and the display supports tiled video walls of up to 15 x 15 displays.

The display has an OPS slot, and its inputs are HDMI 2.0 x 3, DVI-D, VGA, USB 2.0 x 2 and 3.5 mm audio in and out. Control is through RS232C, IR and RJ45 network ports, and the remote control signal and keyboard can be locked. The manufacturer lists Android 8.0 as the operating system and rates the display for 0 to 40 °C operation. The 600 x 400 mm wall-mount pattern uses M8 fixings, and the display weighs 37.5 kg.

Screen Size
74.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Professional Display (Digital Signage)
Weight
37.5 kg

Key features

01
ADS panel
3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles.
02
Android 8.0 platform
Dual-core processor and ARM Mali G51 graphics for on-board playback.
03
Video inputs
HDMI 2.0 x 3, DVI-D x 1, VGA x 1 and USB 2.0 x 2.
04
OPS slot
Accepts a compatible OPS computer module for content playback.
05
Tiled video wall
Supports tiled matrices of up to 15 x 15 displays.
06
Network control
RS232C, IR and RJ45 ports with lockable remote and keyboard control.
07
Energy use
160 W typical and 310 W maximum consumption with Smart Power.
08
Built-in audio
2 x 10 W RMS speakers with 3.5 mm audio in and out.

Specifications

General
Key FeaturesADS panel, 4K UHD, 400 nits brightness, Android 8.0, OPS slot, tiled video wall up to 15 x 15, RS232C and RJ45 control, 18/7 landscape and portrait operation
Model75BDL3550Q/00
TypeProfessional Display (Digital Signage)
Display
Aspect Ratio16:9
Bezel Size14.9 mm (even bezel)
Brightness400 nits
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size74.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
GraphicsARM Mali G51
Operating SystemAndroid 8.0
ProcessorDual-core Cortex-A53 1.1 GHz and dual-core Cortex-A73 1.15 GHz
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes
PortsHDMI 2.0 × 3, DVI-D × 1, VGA × 1, USB 2.0 × 2, OPS slot, 3.5 mm audio in and out, RJ45, RS232C, IR
Power
Power Consumption160 W (typical), 310 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight37.5 kg
Compliance
Warranty3 years
