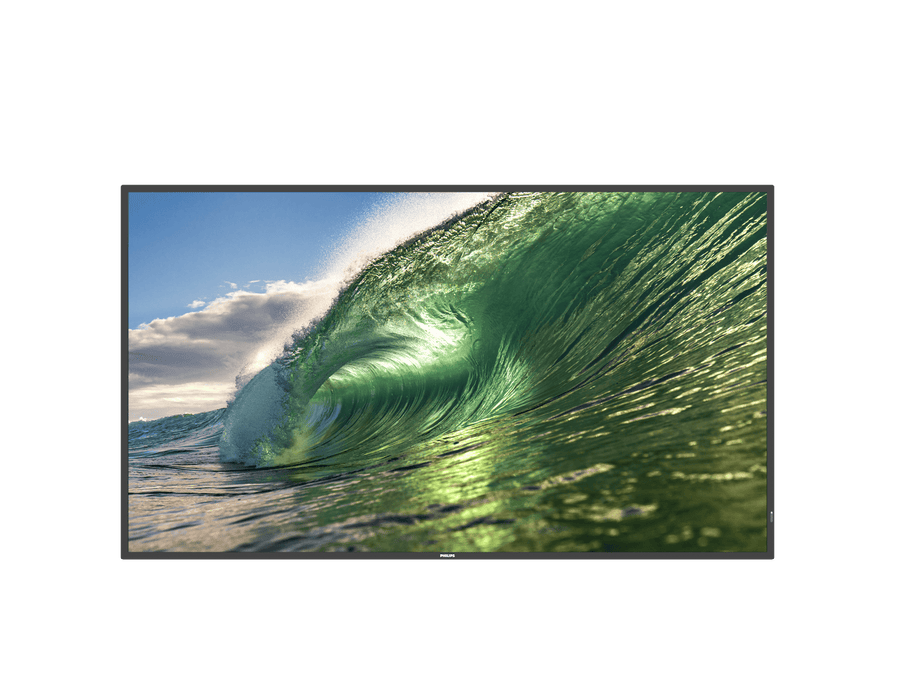

Philips QE-Line EcoDesign 55-inch 4K UHD Digital Signage Display – 55BDL3650QE/00

Philips QE-Line EcoDesign 55-inch 4K UHD Digital Signage Display – 55BDL3650QE/00

The Philips 55BDL3650QE/00 is a 55-inch 4K UHD EcoDesign digital signage display for retail, corporate and hospitality sites. It runs Android 10 with 3 GB RAM and 16 GB storage, a 3840 x 2160 IPS panel and 70 W typical power consumption. Procure.ae supplies the Philips 55BDL3650QE/00 across the UAE.

The 55BDL3650QE/00 has a 3840 x 2160 IPS panel with 178-degree viewing angles, 350 nits brightness, a 1,200:1 typical contrast ratio and an 8 ms typical response time. It runs 4K at 60 Hz with 1.06 billion colours. The Android 10 platform uses a quad-core Cortex-A55 processor with 3 GB RAM and 16 GB storage. Typical power consumption is 70 W, with 120 W maximum and below 0.5 W standby, and the display includes two 10 W RMS speakers.

The 55BDL3650QE/00 suits signage networks where energy use matters, such as retail floors, corporate reception areas and hospitality venues. The manufacturer positions it as an EcoDesign display in its Q-Line range. A Wi-Fi function is optional through the CRD22 Wi-Fi dongle. It mounts in landscape or portrait on a 400 x 400 mm M6 wall pattern, and RJ45 and RS232C control allow central management.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display (EcoDesign)
Weight
17.2 kg

Key features

01
EcoDesign operation
Energy-saving operation with 70 W typical and 120 W maximum consumption.
02
Android 10 platform
Quad-core Cortex-A55 processor with 3 GB RAM and 16 GB storage.
03
Ultra HD 4K panel
A 3840 x 2160 IPS panel with 350 nits brightness and 178-degree viewing angles.
04
Optional Wi-Fi
Wi-Fi is available through the CRD22 Wi-Fi dongle.
05
Network control
RJ45 and RS232C in and out, plus IR input and output.
06
Tiled display support
Tiled matrix of up to 15 x 15 displays for video walls.
07
Picture enhancement
Motion compensated deinterlacing and dynamic contrast enhancement.
08
Multiple video inputs
Two HDMI 2.0, DVI-I, two USB 2.0 and two USB 3.0 ports.

Specifications

General
Key FeaturesEcoDesign, Android 10, quad-core Cortex-A55, tiled matrix up to 15 x 15, Smart Power, optional Wi-Fi dongle, RS232C and RJ45 network control, motion compensated deinterlacing
Model55BDL3650QE/00
TypeDigital Signage Display (EcoDesign)
What's in the BoxIR sensor cable (1.8 m), RS232 daisy-chain cable, RS232 cable, AC power cord, AC switch cover, cable clips (x2), quick start guide, USB cover
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even bezel)
Brightness350 nits
Color Depth1.06 billion colours
Contrast Ratio1,200:1
OrientationLandscape and portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal and vertical
Performance
GraphicsG52 MC1
Operating SystemAndroid 10
ProcessorQuad-core Cortex-A55
RAM3 GB
Storage16 GB
Audio
Speaker Output2 × 10 W RMS built-in speakers
Connectivity
Input Voltage100–240 V AC
PortsHDMI 2.0 × 2, DVI-I × 1, USB 2.0 × 2, USB 3.0 × 2, micro SD, RJ45, RS232C (in/out), IR (in/out), 3.5 mm audio in/out
Wi-FiOptional Wi-Fi via CRD22 Wi-Fi dongle
Power
Power Consumption70 W (typical), 120 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight17.2 kg
Compliance
CertificationsCE, CB, BSMI, FCC Class A, VCCI, J-Moss, ETL, RoHS
Warranty3 years
