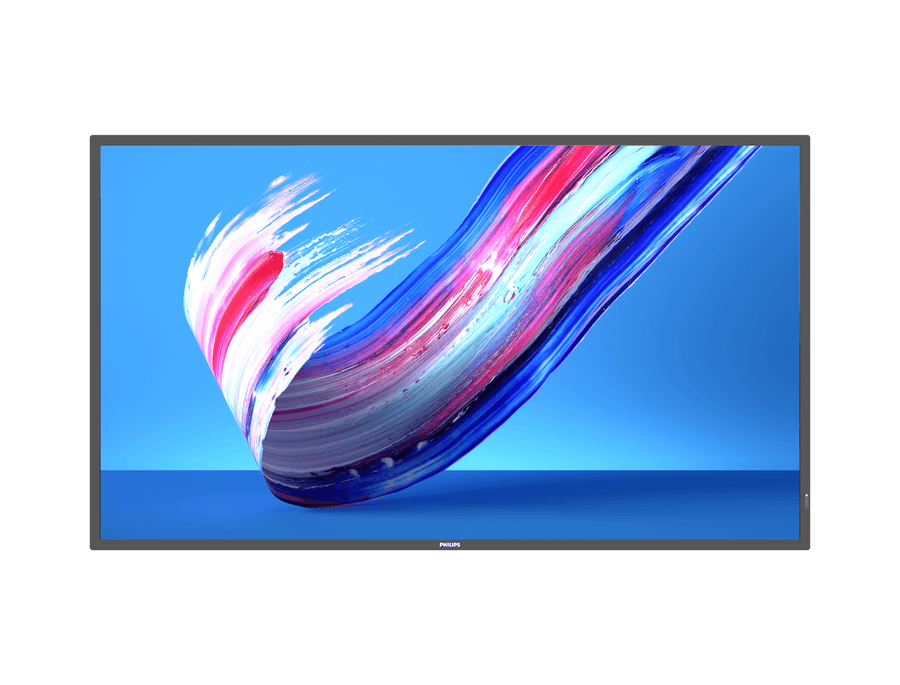

Philips Q-Line 43-inch Digital Signage Display – 43BDL3650Q/00

Philips Q-Line 43-inch Digital Signage Display – 43BDL3650Q/00

The Philips 43BDL3650Q/00 is a 43-inch 4K UHD digital signage display from the Signage 3000 Series Q-Line. It runs Android 10 with 3 GB of RAM and 16 GB of storage, offers 400 nits brightness and includes a Micro SD slot. Procure.ae supplies the Philips 43BDL3650Q/00 in the UAE as an authorised reseller.

The 3840 x 2160 ADS panel runs at 60 Hz with 400 nits brightness, 1,200:1 typical contrast and 500,000:1 dynamic contrast, plus an 8 ms typical response time and 1.07 billion display colours. The display runs Android 10 on a quad-core Cortex A55 processor with G52 MC1 graphics, 3 GB of DDR RAM and 16 GB of storage. Two 10 W RMS speakers are built in. Typical consumption is 84 W, and standby is below 0.5 W.

The 3650Q lists Android 10, a Micro SD slot, a USB 3.0 input and two USB 2.0 ports, alongside two HDMI 2.0 inputs and a DVI-I input. Philips describes it as Wave-ready for remote management, and it is controlled through RS232C, RJ45 and IR. Tiling supports up to 3 x 3 displays. Compared with the 43BDL3550Q/00, it runs Android 10 rather than Android 8.0, has 16 GB of storage rather than 8 GB, and lists a Micro SD slot.

Screen Size
42.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
Weight
11.29 kg

Key features

01
Android 10 platform
Runs Android 10 on a quad-core Cortex A55 processor.
02
4K UHD panel
3840 x 2160 at 60 Hz on a 42.5-inch ADS screen.
03
Wave-ready remote management
Described by Philips as Wave-ready for remote management.
04
Micro SD slot
Micro SD card slot alongside 16 GB of internal storage.
05
HDMI and USB inputs
Two HDMI 2.0, two USB 2.0 and one USB 3.0 input, plus DVI-I.
06
Video wall tiling
Matrix of up to 3 x 3 displays.
07
Network and IR control
RJ45, RS232C and IR in and out for control.
08
Smart Power
Energy-saving function with 84 W typical consumption.

Specifications

General
Key FeaturesAndroid 10, 4K UHD, Micro SD slot, tiling up to 3 x 3, RS232 and RJ45 control, Smart Power, built-in speakers, Wave-ready remote management
Model43BDL3650Q/00
TypeDigital Signage Display
What's in the BoxIR sensor cable (1.8 m), RS232 daisy-chain cable, RS232 cable, AC power cord, remote control with AAA batteries, quick start guide, USB cover and screws, Philips logo
Display
Aspect Ratio16:9
Bezel Size13.9 mm (even)
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
OrientationLandscape and portrait (18/7)
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size42.5 inch
Viewing Angle178° horizontal, 178° vertical
Performance
GraphicsG52 MC1
Operating SystemAndroid 10
ProcessorQuad-core Cortex A55
RAM3 GB
Storage16 GB
Storage Conditions-20 to 60 °C, 5% to 95% RH
Audio
Dynamic Range500,000:1
Speaker Output2 x 10 W RMS
Connectivity
ConnectivityRJ45 LAN, IR in and out (3.5 mm jack)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 2, USB 2.0 × 2, DVI-I In × 1, USB 3.0 × 1, 3.5 mm audio In/Out
SD Card SlotMicro SD
Serial PortRS232C in and out (2.5 mm jack)
Power
Power Consumption84 W (typical)
Standby PowerLess than 0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount200 x 200 mm (M6)
Weight11.29 kg
Compliance
CertificationsCE, CB, FCC Class A, VCCI, RoHS, UL
Warranty3 years
