Philips · 98BDL3650Q/00 · Digital Signage

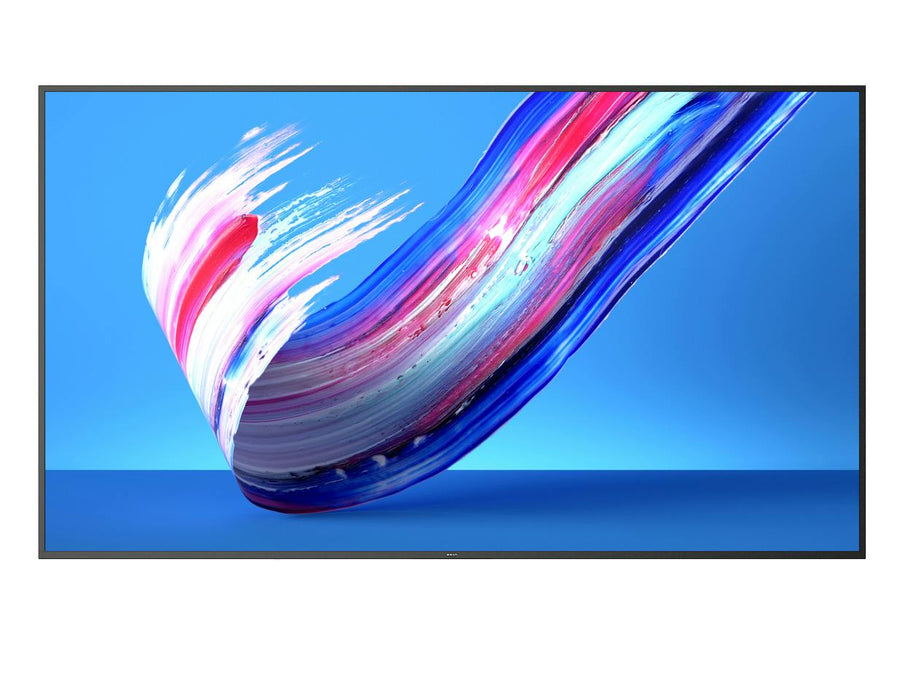

Philips Q-Line 3000 Series 98-inch 4K UHD Digital Signage Display – 98BDL3650Q/00

Philips Q-Line 3000 Series 98-inch 4K UHD Digital Signage Display – 98BDL3650Q/00

The Philips 98BDL3650Q/00 is a 98-inch 4K UHD digital signage display from the Q-Line 3000 series, built for reliable, easy-to-install Android signage. It offers 3840 x 2160 resolution, 400 nits brightness and tiling of up to 3 x 3 screens. Procure.ae supplies it across the UAE for businesses, schools and public venues.

The 98BDL3650Q/00 uses an IPS panel with 3840 x 2160 resolution, 400 nits typical brightness and a 1,200:1 typical contrast ratio. Its 178-degree viewing angles and 8 ms typical response time suit content viewed from across a room. The display runs Android 10 with 3 GB RAM, and its optimum refresh rate is listed as 60 Hz. Two 10 W RMS speakers are built in. Typical power use is 204 W, and the placement is rated 18/7 in landscape or portrait.

It fits reception areas, schools, retail walls and meeting spaces where a large screen is needed. Ease of installation is listed as Smart Insert. Up to 3 x 3 units can be tiled, with RS232C, RJ45 and IR network control, and an OPS slot is included. The mount pattern is 1000 x 400 mm with M8 fixings. Compared with the 98BDL4550D/00, this model lists a 3 x 3 maximum tile matrix instead of 10 x 15, and Android 10 instead of Android 8.0.

Screen Size
97.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
Weight
65.2 kg

Key features

01
4K UHD IPS panel
3840 x 2160 resolution with 1.07 billion display colours.
02
Brightness and contrast
400 nits typical brightness and 1,200:1 typical contrast ratio.
03
Android 10 platform
Android 10 operating system with 3 GB RAM.
04
Tiled matrix
Tiled setup of up to 3 x 3 displays.
05
Ease of installation
Smart Insert is the manufacturer's listed installation feature.
06
Remote management
Wave-ready for remote management, as the manufacturer describes it.
07
Network control
RJ45, RS232C and IR control, in and out.
08
Power use
204 W typical consumption with Smart Power energy saving.

Specifications

General
Key FeaturesAndroid 10, Smart Insert installation, tiled matrix up to 3 x 3, Smart Power, Wave-ready remote management, 1.07 billion colours
Model98BDL3650Q/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cable, IR sensor cable, AC power cord, quick start guide, wire clamps
Display
Aspect Ratio16:9
Bezel Size15.9 mm (left, right, top), 20.1 mm (bottom)
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size97.5 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 10
RAM3 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
ConnectivityRJ45, RS232C, IR, OPS slot
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 2, DVI-I In × 1, USB 2.0 × 2, USB 3.0 × 1, micro SD slot, RJ45, RS232C, IR
Power
Power Consumption204 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount1000 x 400 mm
Weight65.2 kg
Compliance
CertificationsCE, FCC Class A, RoHS, CB, UL, VCCI
Warranty3 years
