Philips · 86BDL3650Q/00 · Digital Signage

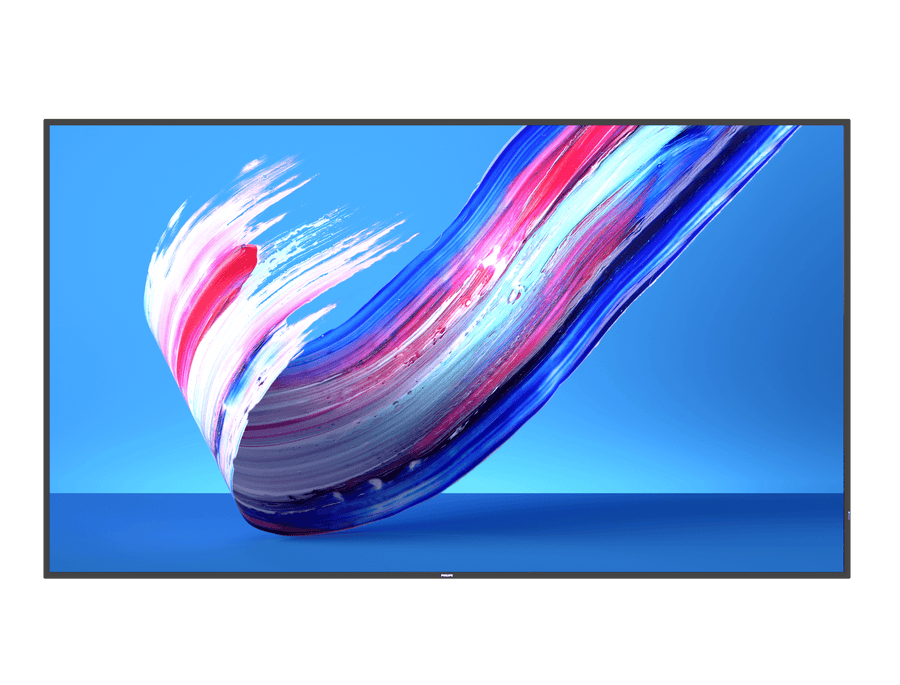

Philips 86-inch Q-Line Android 4K UHD Digital Signage Display – 86BDL3650Q/00

Philips 86-inch Q-Line Android 4K UHD Digital Signage Display – 86BDL3650Q/00

The Philips 86BDL3650Q/00 is an 85.6-inch 4K UHD digital signage display from the Q-Line 3000 Series that runs Android 10. It offers 3840 x 2160 resolution, 400 nits brightness and Wave-ready remote management, with an OPS slot and a micro SD slot. Procure.ae supplies it across the UAE, with delivery and installation.

The 86BDL3650Q/00 uses a 3840 x 2160 IPS panel rated at 400 cd/m² brightness, with 1,200:1 typical contrast and an 8 ms typical response time. Its 178-degree viewing angles suit large lobby and retail walls. Android 10 runs on a quad-core Cortex-A55 processor with 3 GB RAM, 16 GB storage and ARM Mali G52 MC1 graphics. Two 10 W RMS speakers provide built-in audio.

Connect sources through two HDMI 2.0 inputs, a DVI-I input, USB 2.0 and USB 3.0 ports, and use the OPS slot for an OPS module. RJ45, RS232C and IR in and out allow remote control, and the manufacturer describes the display as Wave-ready for remote management. It is listed for landscape or portrait placement at 18/7, with Smart Insert as an ease-of-installation feature. The 600 x 400 mm VESA pattern fits standard wall mounts.

Screen Size
85.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
Weight
49.06 kg

Key features

01
Android 10 platform
Android 10 on a quad-core Cortex-A55 processor.
02
4K UHD IPS panel
3840 x 2160 resolution on an 85.6-inch 16:9 screen.
03
Brightness and contrast
400 cd/m² brightness with 1,200:1 typical contrast.
04
Wave-ready management
Described by the manufacturer as ready for remote management.
05
Storage and expansion
16 GB storage, a micro SD slot and an OPS slot.
06
Multiple inputs
Two HDMI 2.0, one DVI-I, plus USB 2.0 and USB 3.0 ports.
07
Smart Insert installation
Listed by the manufacturer as an ease-of-installation feature.
08
Network control
RJ45, RS232C and IR in and out for remote control.

Specifications

General
Key FeaturesAndroid 10, Wave-ready remote management, OPS slot, micro SD slot, tiling up to 3 x 3, Smart Insert installation, Smart Power, RJ45 and RS232C control
Model86BDL3650Q/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cables, AC power cord, HDMI cable (1.8 m), IR sensor cable (1.8 m), cable clips (x2), USB cover, quick start guide
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85.6 inch
Viewing Angle178° horizontal, 178° vertical
Performance
GraphicsARM Mali G52 MC1
Operating SystemAndroid 10
ProcessorQuad-core Cortex-A55
RAM3 GB
Storage16 GB
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDVI-I In × 1, HDMI 2.0 In × 2, USB 2.0 × 2, USB 3.0 × 1, RJ45, RS232C, IR in/out, 3.5 mm audio in/out, micro SD
Power
Power Consumption304 W (typical)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight49.06 kg
Compliance
Warranty3 years
