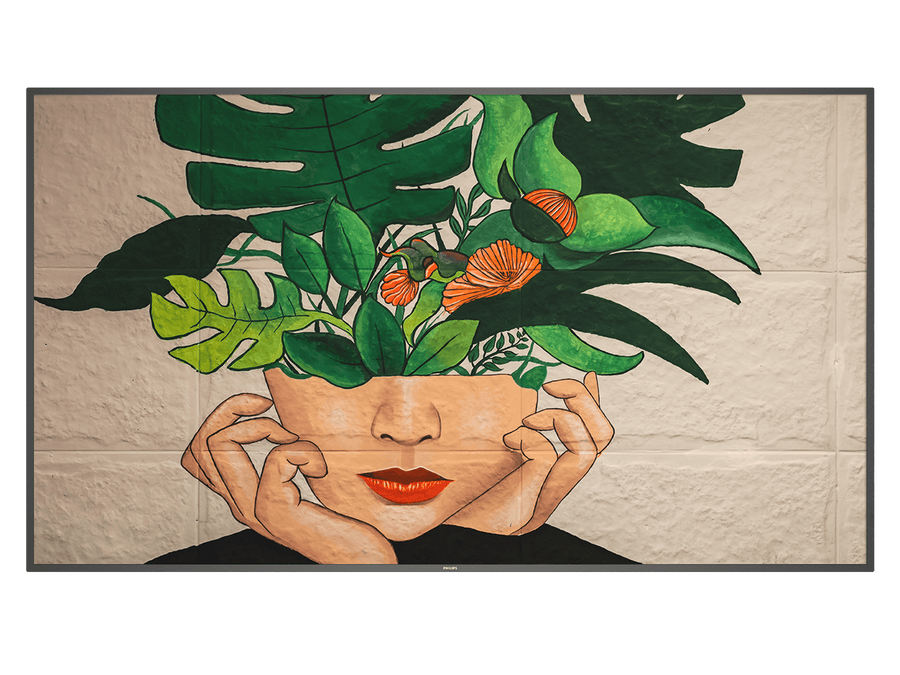

Philips 75-inch 4K UHD D-Line Digital Signage Display – 75BDL4511D/00

Philips 75-inch 4K UHD D-Line Digital Signage Display – 75BDL4511D/00

The Philips 75BDL4511D/00 is a 74.5-inch 4K UHD digital signage display for 24/7 use in lobbies, retail and corporate areas. It offers 3840 x 2160 resolution, 500 nits brightness and a 16:9 ADS panel, plus an OPS slot for media players. Procure.ae supplies it across the UAE, with delivery and installation.

The 75BDL4511D/00 uses a 3840 x 2160 ADS panel rated at 500 cd/m² brightness, with 1,200:1 typical contrast and an 8 ms typical response time. Its 178-degree horizontal and vertical viewing angles keep content readable from the side of a corridor or showroom floor. The display runs in landscape or portrait at 24/7, with Smart Power and the Pixel Shift and Low Bright screen-saving functions. Built-in 2 x 10 W RMS speakers cover announcements and short clips.

Connect sources through three HDMI 2.0 inputs, a DisplayPort 1.2 input, a DVI-I input or the two USB 2.0 ports, and use the OPS slot for an OPS module. HDMI and DisplayPort video outputs are also fitted. RJ45 and RS232C ports allow network and serial control, and the keyboard controls are hidden and lockable, which suits public installations. The 600 x 400 mm VESA pattern fits standard wall mounts.

Screen Size
74.5 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
Weight
35.9 kg

Key features

01
4K UHD panel
3840 x 2160 resolution on a 74.5-inch 16:9 ADS screen.
02
High brightness panel
500 cd/m² brightness with 1,200:1 typical contrast.
03
Wide viewing angles
178-degree horizontal and vertical viewing angles.
04
Always-on operation
Landscape or portrait placement rated for 24/7 use.
05
OPS expansion slot
An OPS slot for an OPS module.
06
Network control
RJ45 and RS232C ports with IR in and out for remote management.
07
Multiple video inputs
Three HDMI 2.0, one DisplayPort 1.2, one DVI-I and two USB 2.0 ports.
08
Screen-saving functions
Pixel Shift, Low Bright and Smart Power energy-saving modes.

Specifications

General
Key FeaturesLandscape and portrait placement, 24/7 operation, Smart Power, Pixel Shift, OPS slot, RJ45 and RS232C control, hidden lockable keyboard control
Model75BDL4511D/00
TypeDigital Signage Display
What's in the BoxRemote control with AAA batteries, RS232 cables, AC power cord, IR sensor cable, quick start guide, wire clamps (x3)
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colours
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size74.5 inch
Viewing Angle178° horizontal, 178° vertical
Audio
Speaker Output2 x 10 W RMS
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, DVI-I In × 1, USB 2.0 × 2, HDMI Out × 1, DisplayPort Out × 1, RJ45, RS232C
Power
Power Consumption185 W (typical), 345 W (max)
Standby Power<0.5 W
Physical
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight35.9 kg
Compliance
Warranty3 years
