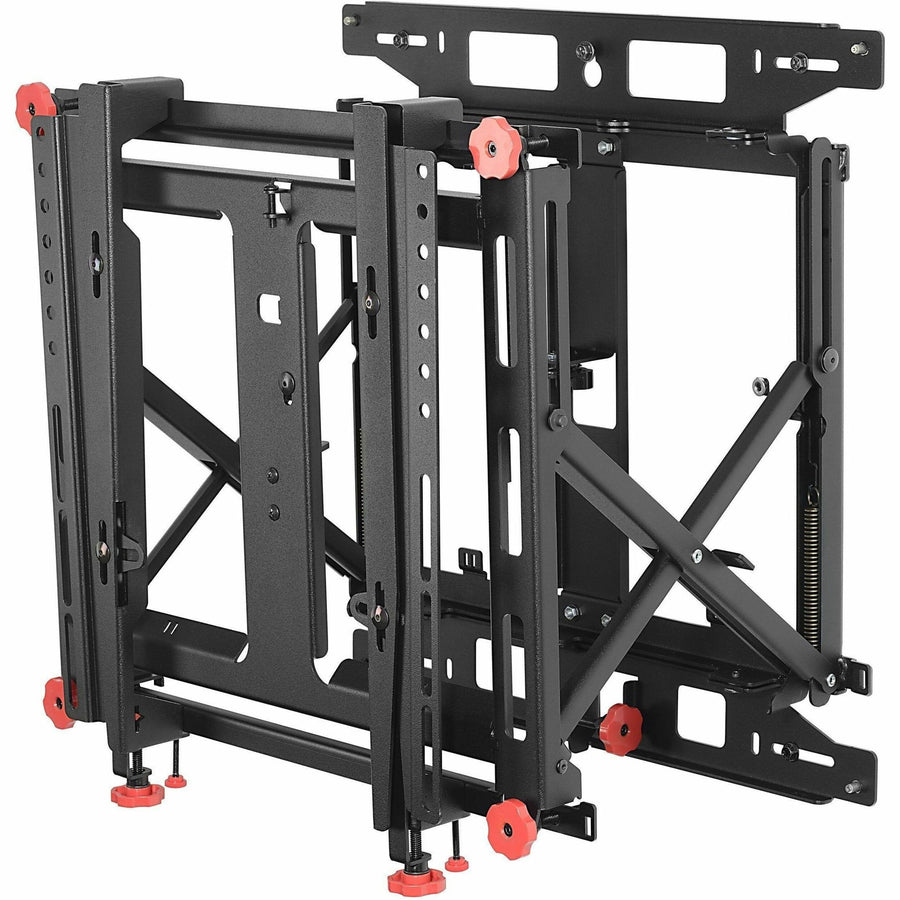

The Peerless DS-VW775-QR is a Supreme full-service video wall mount with quick release for 46-60-inch displays. It supports a 56.70 kg maximum load and VESA patterns up to 600 x 400 mm, in landscape or portrait. Its press-to-release mechanism and 1.5-inch fine-tune adjustment on each axis suit installers. Procure.ae supplies it across the UAE.
The DS-VW775-QR accommodates displays in landscape and portrait orientation. It offers 1.5 inches of fine-tune adjustment on each of the X, Y and Z axes, plus tool-less lateral micro-adjustment. A gentle press-to-release mechanism lets any display in the video wall be extended for maintenance. The mount is compatible with VESA patterns up to 600 x 400 mm, has a 56.70 kg maximum load capacity and weighs 15.51 kg.
The DS-VW775-QR suits indoor video walls in control rooms, lobbies and retail spaces. Enhanced cable management lets cables travel in and out with the display, which helps prevent pinching or pulling loose when a display is extended. An easy-hang wall plate is compatible with the Peerless-AV install app, and a security hardware option deters tapering and theft. Procure.ae supplies businesses, schools and government across the UAE and the wider Middle East & Africa (MEA), with delivery and installation.
| Application | Indoor displays and video walls |
| Compatibility | Display and video wall; dedicated mount pattern type |
| Key Features | Landscape or portrait, press-to-release quick release, 1.5-inch fine-tune adjustment, lateral adjustment, cable management, security option, VESA up to 600 x 400 mm, custom wall spacers |
| Model | DS-VW775-QR |
| Type | Video Wall Mount |
| What's in the Box | Supreme full-service quick-release wall mount for 46-60 inch displays, adaptor rails, mounting hardware |
| Orientation | Landscape/Portrait |
| Supported Screen Sizes | 46-60 inch |
| Adjustability | 1.5 inch fine tune on X, Y and Z axes; tool-less lateral micro-adjustment |
| Color | Black |
| Extension | Quick-release pop-out |
| Finish | Powder coated, textured |
| Form Factor | Wall mountable |
| Load Capacity | 56.70 kg |
| Mounting | Wall, quick-release pop-out |
| VESA Mount | 200 x 200 to 600 x 400 mm |
| Weight | 15.51 kg |
| Certifications | RoHS, TAA, VESA, UL |
| Security Features | Tamper resistant, theft resistant, optional security hardware |
| Warranty | 5 years limited |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
