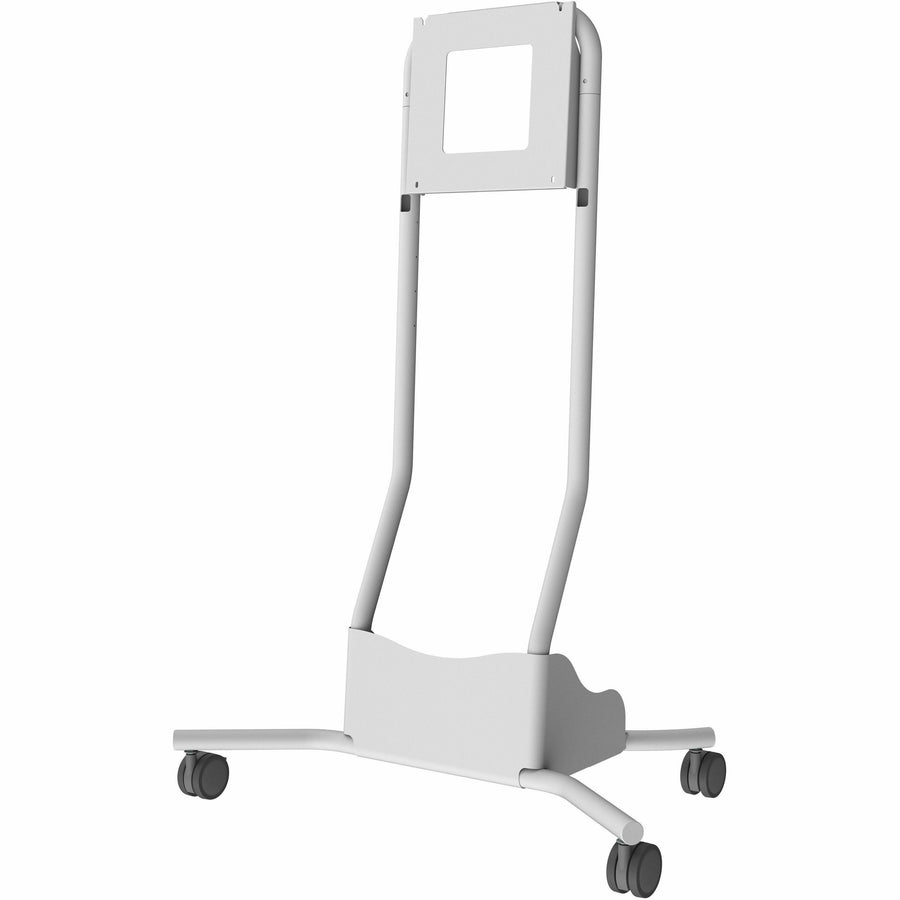

Peerless SmartMount Cart for 50-inch Microsoft Surface Hub 2S and 3 – SR560-HUB2

Peerless SmartMount Cart for 50-inch Microsoft Surface Hub 2S and 3 – SR560-HUB2

The Peerless SR560-HUB2 is a mobile cart for the 50-inch Microsoft Surface Hub 2S and 3. It has a 29.48 kg maximum load, a 350 x 350 mm mount and a column that positions the display between 48 and 60 inches from the floor. Procure.ae supplies the SR560-HUB2 in the UAE as an authorised Peerless reseller.

The cart is load rated to 29.48 kg and sits at Microsoft recommended viewing height of 55 inches. The display can be set between 48 and 60 inches (1219 to 1524 mm) from the floor in 3-inch increments. A dedicated mount fits the 350 x 350 mm pattern. The open frame adaptor provides clearance for the I/O ports and the removable compute cartridge, so the compute module can be upgraded without removing the display. The welded base is finished in powder-coated white for quick assembly and rigidity.

The SR560-HUB2 fits corporate, education and hospitality spaces where the Surface Hub must move between rooms. Internal cable management keeps cables hidden inside the uprights for a clean installation. Corner bumpers protect doors and walls while the cart is moved or stored. The display can be tilted by -4.5 degrees for a natural writing angle or set to 0 degrees for standard interaction. Assembly is required, and the cart carries a 5-year limited warranty.

Type
Display Cart
Weight
26.40 kg

Key features

01
Vertical height adjustment
The display sits 48 to 60 inches from the floor in 3-inch steps.
02
Internal cable management
Cables are routed inside the uprights for a clean installation.
03
Ergonomic tilt
Set to -4.5 degrees for writing or 0 degrees for standard use.
04
Dedicated mount
Fits the 350 x 350 mm pattern of the Surface Hub 2S and 3.
05
Open frame adaptor
Gives clearance for I/O ports and the removable compute cartridge.
06
Corner bumpers
Protect doors and walls while the cart is moved or stored.

Specifications

General
CompatibilityMicrosoft Surface Hub 2S and 3
Key FeaturesVertical height adjustment, Internal cable management, Tilt -4.5 or 0 degrees, Open frame adaptor, Corner bumpers, Welded base
ModelSR560-HUB2
TypeDisplay Cart
What's in the BoxAssembled base; 2 vertical columns; 2 swivel casters; 2 locking swivel casters; bottom shelf; hardware; instructions
Display
Supported Screen Sizes50 inch (127 cm)
Physical
ColorWhite
FinishPowder coated
Height Range1219 to 1524 mm (48 to 60 inch) from floor
Load Capacity29.48 kg
Tilt-4.5 or 0 degrees
VESA Mount350 x 350 mm
Weight26.40 kg
Compliance
CertificationsRoHS; TAA compliant
Warranty5 years limited
