PeerlessMeeting Room SolutionsSKU IMAL

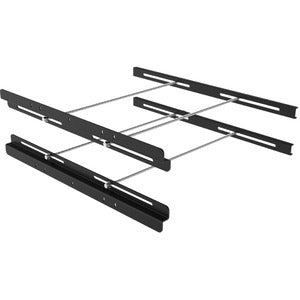

Peerless-AV I-Beam Mount for Digital Signage Displays – IMAL
The Peerless-AV IMAL is an I-beam mount for digital signage displays that adjusts for beams 12 to 24.5 inches wide. It supports up to 102.06 kg, works in landscape or portrait orientation and has a corrosion-resistant design for indoor and outdoor use. Procure.ae supplies the Peerless-AV IMAL in the UAE as an authorised reseller.
The Peerless-AV IMAL is an I-beam mount for securing digital signage displays to I-beams, indoors and outdoors. It is designed for beams 12 to 24.5 inches wide, with a maximum load capacity of 102.06 kg. Threaded rods are included and can be cut to length to suit different beam depths, and the mount includes adaptors and hardware for the selected wall mount. The alternate code IMAM covers beams up to 12 inches wide.
The IMAL supports both landscape and portrait mounting. Its corrosion-resistant design allows outdoor use, and it weighs 7.94 kg. The IMAL is listed as compatible with Peerless-AV indoor wall mount models and outdoor wall mount models, as set out in the manufacturer's specifications.
Type
I-Beam Mount
Weight
7.94 kg
- Adjustable beam depth
- Cut-to-length threaded rods
- Corrosion resistant design
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Adjustable beam depth
Designed for 12 to 24.5-inch wide beams, from 304.8 mm to 622.3 mm adjustable depth.
02
Cut-to-length threaded rods
The included 3/8-16 galvanized threaded rods can be cut to fit a range of I-beam depths.
03
Corrosion resistant design
The mount resists corrosion, supporting outdoor use in stadiums and parking garages.
04
Landscape and portrait
Supports both landscape and portrait mounting solutions.
05
Complete hardware kit
Includes front and rear adaptors, threaded rod and mounting hardware for the selected wall mount.
06
Load capacity
Rated for a maximum load of 102.06 kg.
07
Powder-coated black finish
Black powder-coated finish with a 5-year limited warranty from the manufacturer.
Specifications
13 specificationsGeneral
ApplicationGarage, I-beam, indoor and outdoor, stadium
Key FeaturesAdjustable depth, Landscape and portrait orientation, Corrosion resistant, Indoor and outdoor use, Includes adaptors and threaded rod, Wall mountable, Assembly required
ModelIMAL
TypeI-Beam Mount
What's in the BoxI-beam mounts, corrosion resistant front adaptor, rear adaptor, 3/8-16 galvanized threaded rod, galvanized nuts and washers, wall mount hardware
Display
OrientationLandscape and portrait
Physical
ColorBlack
FinishPowder coated
Form FactorWall mountable
Load Capacity102.06 kg
MountingI-beam, adjustable depth 304.8 to 622.3 mm (12 to 24.5 inches)
Weight7.94 kg
Compliance
Warranty5 years
Downloads
Manufacturer documents for the Peerless-AV I-Beam Mount for Digital Signage Displays – IMAL — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which beam sizes does the IMAL fit?
The IMAL is designed for I-beams from 12 to 24.5 inches wide. Threaded rods are included and can be cut to length for different beam depths. The minimum adjustable depth is 30.48 cm (12 inches) and the maximum is 62.23 cm (24.50 inches).
Can the IMAL be used outdoors?
Yes, the IMAL is listed for indoor and outdoor use. The manufacturer describes its corrosion-resistant design as suited to outdoor locations such as stadiums, arenas and parking garages where wall mounting space is limited.
Which displays is the IMAL compatible with?
Yes, with the Peerless-AV wall mount models the manufacturer lists, including SF640, SF650, ST640, ST650, SP740P, SA740P and PF640 for indoor use, and EPT640, EPT650, EWMU, ESF655P and EST655P for outdoor use. Confirm your exact model with Procure.ae before ordering.
Can I buy the IMAL in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
