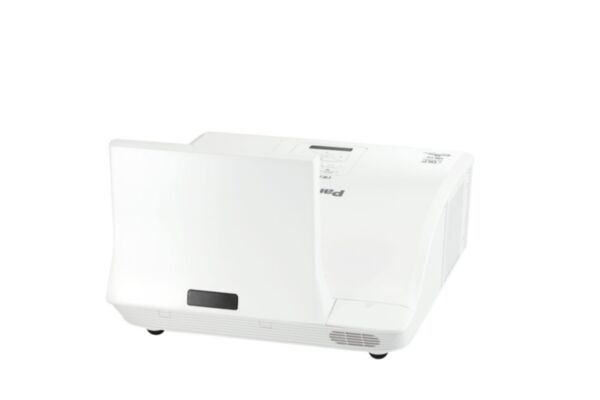

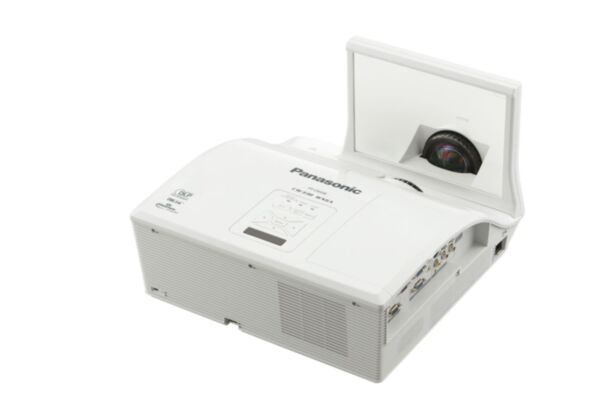

Panasonic Short Throw Projector Series PT-CW33
- SKU: PT-CW33
Actual Stock Can Be Confirmed After Placing the Order.
Specification Model PT-CW331R/CW330 PT-CW241R/CW240 PT-CX301R/CX300 Power supply 100 - 240 V AC, 50/60 Hz Power consumption 340 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) 310 W (0.5 W when STANDBY MODE set to ECO,*1... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Model |
PT-CW331R/CW330 |
PT-CW241R/CW240 |
PT-CX301R/CX300 |
|
|---|---|---|---|---|
| Power supply | 100 - 240 V AC, 50/60 Hz | |||
| Power consumption | 340 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
310 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
340 W (0.5 W when STANDBY MODE set to ECO,*1 6.0 W when STANDBY MODE set to NORMAL.*2) |
|
| DLP™ chip | Panel size | 16.5 mm (0.65 in) diagonal (16:10 aspect ratio) |
14 mm (0.55 in) diagonal (4:3 aspect ratio) |
|
| Display method | DLP™ chip x 1 DLP™ system | |||
| Pixels | 1,024,000 (1,280 x 800) pixels | 786,432 (1,024 x 768) pixels | ||
| Lens | Fixed (0.35:1 throw ratio), manual focus F = 2.6, f = -5.27 mm |
Fixed (0.44:1 throw ratio), manual focus F = 2.6, f = -5.27 mm |
||
| Lamp | 280 W UHM lamp (The lamp replacement cycle is 4,000 hours*3) |
240 W UHM lamp (The lamp replacement cycle is 5,000 hours*3) |
280 W UHM lamp (The lamp replacement cycle is 4,000 hours*3) |
|
| Screen size (diagonal) | 1.78-2.54 m (70-100 in) (16:10 aspect ratio) |
1.52-2.29 m (60-90 in) (4:3 aspect ratio) |
||
| Color reproducibility | Full color (16,777,216 colors) | |||
| Brightness*4 | 3,100 lm | 2,600 lm | 3,100 lm | |
| Center-to-corner uniformity*4 | 80 % | |||
| Contrast*4 | 8,000:1 (full on/off) (During RGB signal input, lamp power: Normal) | |||
| Resolution | 1,280 x 800 pixels (Input signals that exceed this resolution will be converted to 1,280 x 800 pixels.) |
1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) |
||
| Scanning frequency |
HDMI | (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 25-162 MHz | ||
| RGB (analog) | (Horizontal) 15-100 kHz; (Vertical) 24-120 Hz; (Dot clock) 162 MHz or lower | |||
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] |
|||
| Video/S-Video | (fH) 15.75/15.63 kHz (fV) 50/60 Hz [NTSC/NTSC4.43/PAL/PAL60/PAL-N/PAL-M/SECAM] | |||
| Keystone correction range | Vertical: ±15° | |||
| Installation | Ceiling/floor, front/rear (Menu setting) | |||
| Built-in speaker | 7cm x 3cm oval shape x 1, output power 10 W (monaural) | |||

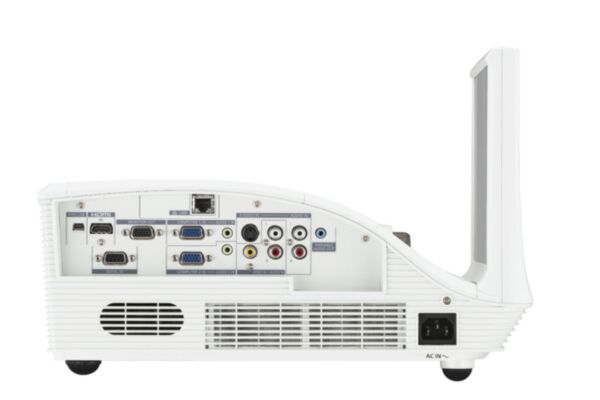

| Terminals | HDMI IN | HDMI 19-pin x 1(Deep color, compatible with HDCP), audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
||
| COMPUTER IN 1 | D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1] | |||
| COMPUTER IN 2 | D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR) x 1] | |||
| MONITOR OUT | D-sub HD 15-pin (female) x 1 (The signal selected from computer input 1/2 is output.) | |||
| VIDEO IN | Pin jack x 1 | |||
| S-VIDEO IN | Mini DIN 4-pin x 1 | |||
| COMPUTER 1 AUDIO IN | M3 x 1 (L-R x 1) | |||
| COMPUTER 2 AUDIO IN | M3 x 1 (L-R x 1) | |||
| VIDEO AUDIO IN | Pin jack x 2 (L x 1, R x 1) | |||
| S-VIDEO AUDIO IN | Pin jack x 2 (L x 1, R x 1) | |||
| AUDIO OUT | M3 x 1 (L-R x 1) (variable) | |||
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |||
| LAN | RJ-45 x 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1)) |
|||
| Mini USB | 1 for servicemen (for interactive function*5) | |||
| Power cord length | 3.0 m (9'10") | |||
| Cabinet materials | Molded plastic (PC) | |||
| Dimensions (W x H x D) |
357 x 250 x 367 mm (14-1/16 x 9-27/32 x 14-29/64 in) (with legs at shortest position) |
|||
| Weight | PT-CW331R/ CW241R/ CX301R |
Approximately 7.8 kg (17.2 lbs)*6 |
Approximately 7.6 kg (16.7 lbs)*6 |
Approximately 7.8 kg (17.2 lbs)*6 |
| PT-CW330/ CW240/ CX300 |
Approximately 7.7 kg (17.0 lbs)*6 |
Approximately 7.5 kg (16.5 lbs)*6 |
Approximately 7.7 kg (17.0 lbs)*6 |
|
| Noise level*4 | 37 dB (Lamp power: Normal); 33 dB (Lamp power: Eco) |
35 dB (Lamp power: Normal); 30 dB (Lamp power: Eco) |
37 dB (Lamp power: Normal); 33 dB (Lamp power: Eco) |
|
| Operating temperature | 5°C-40°C [41°F-104°F] (Less than 762 m [2,500 ft] above sea level); 5°C-35°C [41°F-95°F] (between 762 and 1,524 m [2,500 ft and 5,000 ft] above sea level); 5°C-30°C [41°F-86°F] (between 1,524 and 3,048 m [5,000 ft and 10,000 ft] above sea level) |
|||
| Operating humidity | 20 %-80 % (no condensation) | |||
| Supplied accessories | PT-CW331R/ CW241R/ CX301R |
Power cord x 1( x 2 for PT-CW331REA, PT-CW241REA, PT-CX301REA), power cord cover x 1, wireless remote control unit x 1, battery for remote control (lithium coin cell type x 1), computer cable (1.8 m, for VGA) x 1, interactive pen x 2, batteries for interactive pen (AAA/R03/LR03 type x 4), USB cable (5.0 m) x 1, software CD-ROM (LightPen3) x 1 | ||
| PT-CW330/ CW240/ CX300 |
Power cord x 1( x 2 for PT-CW330EA, PT-CW240EA, PT-CX300EA), power cord cover x 1, wireless remote control unit x 1, battery for remote control (lithium coin cell type x 1), computer cable (1.8 m, for VGA) x 1 |
|||
