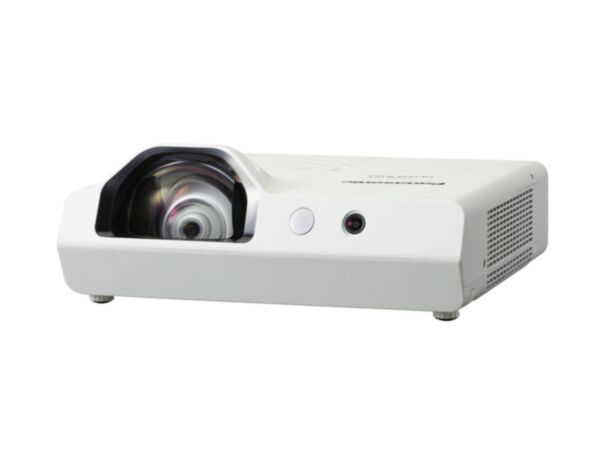

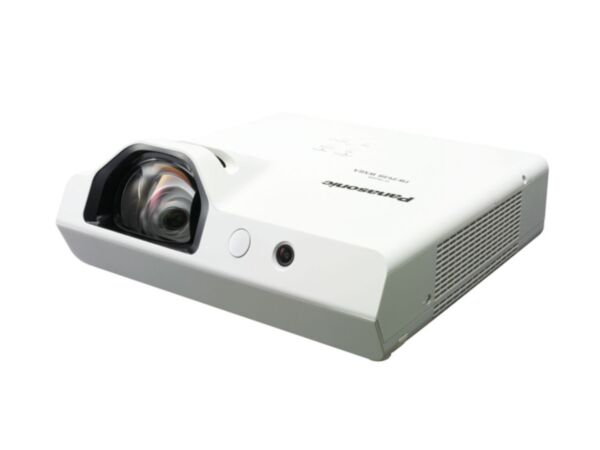

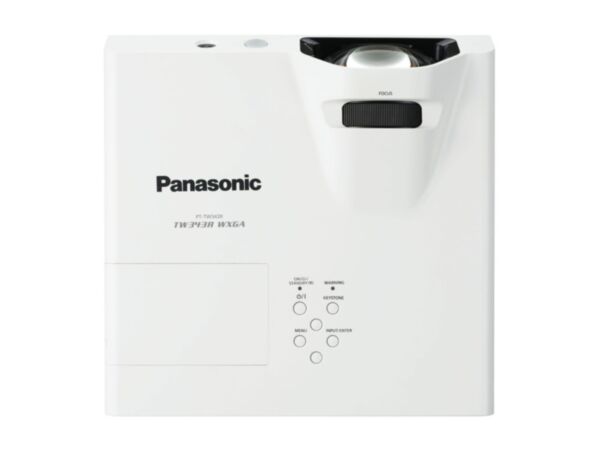

Panasonic Short Throw LCD Projector Series PT-TW230
- SKU: PT-TW230
Actual Stock Can Be Confirmed After Placing the Order.
Specification Model PT-TW231R PT-TW230 Power supply 100 - 240 V AC, 50/60 Hz Power consumption 310 W (0.42 W when STANDBY MODE set to ECO,*19.5 W when STANDBY MODE set to NETWORK.) Optical system Optical isolation/Prism synthesis by using a dichroic mirror LCD panel... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Model |
PT-TW231R |
PT-TW230 |
|
|---|---|---|---|
| Power supply | 100 - 240 V AC, 50/60 Hz | ||
| Power consumption | 310 W (0.42 W when STANDBY MODE set to ECO,*1 9.5 W when STANDBY MODE set to NETWORK.) |
||
| Optical system | Optical isolation/Prism synthesis by using a dichroic mirror | ||
| LCD panel | Panel size | 15 mm (0.59 inches) diagonal (16:10 aspect ratio) | |
| Display method | Transparent LCD panel (x 3, R/G/B) | ||
| Drive system | Active matrix | ||
| Pixels | 1,024,000 pixels (1,280 × 800) x 3, Total: 3,072,000 pixels | ||
| Pixel configuration | Stripe | ||
| Lens | Fixed (0.5:1 throw ratio), manual focus F = 1.8, f = 6.68 mm | ||
| Lamp | 230 W UHM lamp (The lamp replacement cycle is 4,000 hours*2) | ||
| Screen size (diagonal) | 1.52 - 2.79 m (60 - 110 inches) (16:10 aspect ratio) | ||
| Color reproducibility | Full color (16,777,216 colors) | ||
| Brightness*3 | 2,500 lm (lamp power: Normal) | ||
| Center-to-corner uniformity*3 | 80% | ||
| Contrast*3 | 500:1 (full on/full off, lamp power: Normal) | ||
| Resolution | 1,280 × 800 pixels (Input signals that exceed this resolution will be converted to 1,280 × 800 pixels.) |
||
| Scanning frequency |
HDMI | (Horizontal) 25-80 kHz; (Vertical) 50-85 Hz; (Dot clock) 162 MHz or lower | |
| RGB (analog) | (Horizontal) 15-100 kHz; (Vertical) 50-100 Hz; (Dot clock) 140 MHz or lower (Signals exceeding the dot clock rate of 140 MHz are downsampled.) |
||
| YPBPR (YCBCR) | fH: 15.75 kHz, fV: 60 Hz [480i (525i)] fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] |
fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] |
|
| Video/S-Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
||
| Optical axis shift | 10:-1.44 (fixed) | ||
| Keystone correction range | Vertical: ±20° | ||
| Installation | Ceiling/floor, front/rear (Menu setting) | ||
| Built-in speaker | 3.7 cm round shape x1, output power 10 W (monaural) | ||

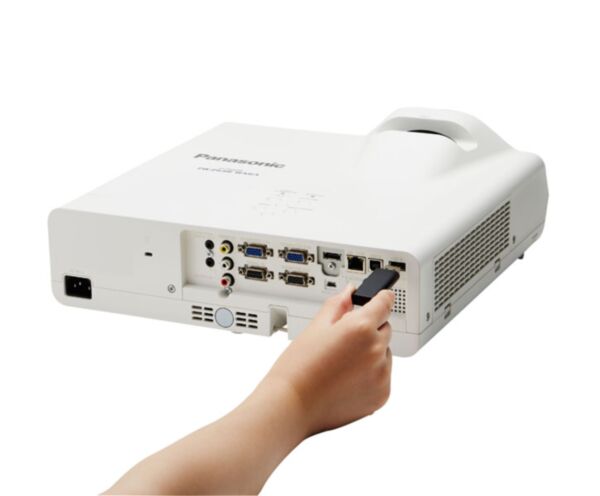

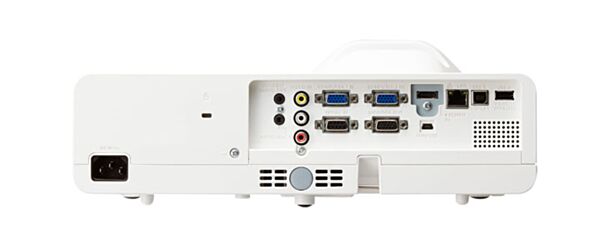

| Terminals | HDMI IN | (HDMI 19-pin) x 1 (compatible with HDCP) Audio signal Linear PCM (Sampling frequency: 48 kHz/44.1 kHz/32 kHz) |
|
| COMPUTER IN 1 | D-sub HD 15-pin (female) x 1 [RGB/YPB(CB)/PR(CR)x 1] | ||
| COMPUTER IN 2 / MONITOR OUT |
D-sub HD 15-pin (female) x 1 (RGB x 1) (input/output selectable using on-screen Menu) (When Monitor Out is selected, the COMPUTER IN 1 signal is output.) |
||
| VIDEO IN | RCA pin × 1 | ||
| S-VIDEO IN | Mini DIN 4-pin × 1 | ||
| COMPUTER AUDIO IN | M3 x 1 (L-R x 1) | ||
| AUDIO IN | RCA pin x 2 (L-R x 1) for VIDEO/S-VIDEO input | ||
| AUDIO OUT | M3 x 1 (L-R x 1) | ||
| SERIAL IN | D-sub 9-pin (male) × 1 for external control (RS-232C compliant) | ||
| LAN | (RJ-45)× 1 (for network connection, 100BASE-TX/10BASE-T, compliant with PJLink™ (class 1)) | ||
| USB | 1 (for interactive function) | - | |
| Power cord length | 2.0 m (6'7") | ||
| Cabinet materials | Molded plastic (PC) | ||
| Dimensions (W × H × D) | 350 × 143 × 389 mm (13-25/32" × 5-5/8" × 15-5/16") (with legs at shortest position) |
350 × 143 × 382 mm (13-25/32" × 5-5/8" × 15-1/32") (with legs at shortest position) |
|
| Weight | Approx.4.7 kg (10.4 lbs)*4 | ||
| Noise level | 36 dB (Lamp power: Normal); 29 dB (Lamp power: Eco) | ||
| Operating temperature | 0°C- 35°C [32°F-95°F] (less than 1,200 m [3,937 ft] above sea level), 0°C- 30°C [32°F-86°F] (between 1,200 m and 2,700 m [3,937 ft to 8,858 ft] above sea level) |
||
| Operating humidity | Operating humidity: 20% - 80% (no condensation) | ||
| Supplied accessories | Power cord x 1*5, Power cord cover x 1, Wireless remote control unit x 1, Batteries (AAA/R03/LR03 type x 6), Computer cable (1.8 m, for VGA) x 1, Interactive pen x 1, Interactive pointer x 1, USB cable (4.5 m) x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x1, Software CD-ROM (Light Pen II) x 1 |
Power cord x 1*6, Power cord cover x 1, Wireless remote control unit x 1, Batteries (AAA/R03/LR03 type x 2), Computer cable (1.8 m, for VGA) x 1, Software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) x 1 |
|
