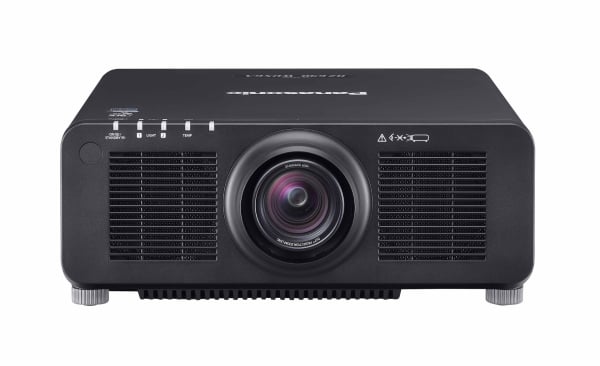

Panasonic PT-RZ690LB Laser Projector – 6,200 Lumens, WUXGA, 1-Chip DLP

Panasonic PT-RZ690LB Laser Projector – 6,200 Lumens, WUXGA, 1-Chip DLP

The Panasonic PT-RZ690LB Laser Projector – 6,200 Lumens, WUXGA, 1-Chip DLP is a projector available in the UAE from Procure.ae.

The Panasonic PT-RZ690LB is a professional-grade WUXGA laser projector designed for high-impact presentations in large venues and installations. Delivering 6200 lumens of brightness and a sharp 1920 x 1200 resolution, it produces crisp, vibrant visuals using advanced 1-Chip DLP technology. Its laser light source ensures up to 20,000 hours of maintenance-free performance with consistent image quality. The projector supports 24/7 operation, making it ideal for museums, control rooms, and auditoriums.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Resolution
1920 x 1080 (Full HD)
Brightness Lumens
6001–7000 lm
Lamp Type
Laser
Weight
22.1 kg

Key features

01
6200 Lumens Laser Brightness
Ensures brilliant, high-contrast projection in large and bright environments.
02
WUXGA Native Resolution
1920 x 1200 resolution provides sharp detail and cinematic aspect ratio for professional content.
03
1-Chip DLP Technology
Delivers reliable performance with high color accuracy and image uniformity.
04
Laser Light Source
Offers up to 20,000 hours of continuous use with minimal maintenance.
05
10,000:1 Dynamic Contrast Ratio
Enhances visual depth with strong blacks and bright highlights.
06
Vertical & Horizontal Lens Shift
Provides flexibility in installation without image distortion or keystone reliance.
07
24/7 Operation Capability
Ideal for continuous-use applications such as signage, monitoring, or exhibits.
08
Geometric Adjustment & Edge Blending
Supports creative installations across multiple curved or flat surfaces.

Specifications

Display
Aspect Ratio16:10
Brightness Lumens6001–7000 lm
Contrast Ratio10,000:1
Lamp Life20,000 hours / 24,000 hours eco
Lamp TypeLaser
Projection Size50-600" diagonal
Resolution1920 x 1080 (Full HD)
Throw Ratio0.8:1
Power
Power Consumption490 W (Normal)/395 W (Eco) 200 W (Long Life 1)/180 W (Long Life 2)/160 W (Long Life 3)
Physical
ColorBlack
Dimensions498 x 200 x 6 mm
Weight22.1 kg
Compliance
Country of OriginChina
