Panasonic · TY-WPS2 · Wireless Presentation

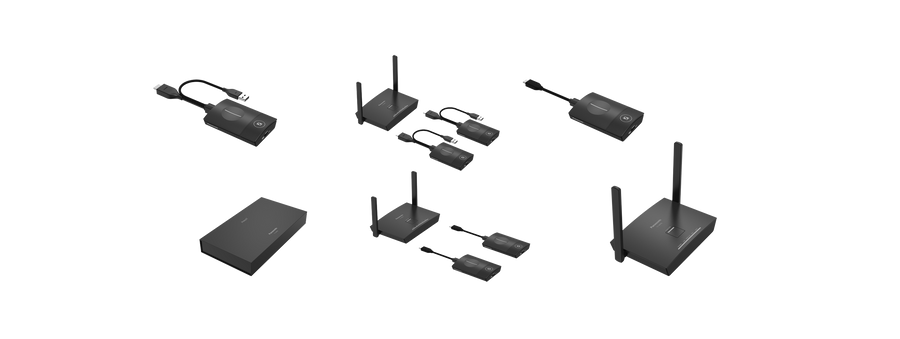

Panasonic PressIT Wireless Presentation System – TY-WPS2

Panasonic PressIT Wireless Presentation System – TY-WPS2

The Panasonic PressIT TY-WPS2 is a wireless presentation system that shares PC, smartphone and tablet screens to a display or projector in up to 4K. It suits meeting rooms, seminars and training rooms, with up to 32 transmitters per receiver and 6 GHz wireless LAN support. Procure.ae supplies the PressIT TY-WPS2 across the UAE.

The TY-WPS2 transmitters send video and still images at up to 3840 x 2160 at 30p, and the receiver outputs up to 3840 x 2160 at 60p. One receiver accepts up to 32 transmitters at the same time, so presenters can switch without moving cables. Multi mode shows up to four sources on one screen. A transmitter can multicast video and audio to up to three receivers without a router. Links run on 2.4 GHz, 5 GHz and 6 GHz Wi-Fi with WPA2 and WPA3 security, with a range of 30 m on 5 GHz and 15 m on 6 GHz in clear line of sight.

The system suits meeting rooms, seminar rooms and training spaces where a display or projector is already installed. HDMI-CEC links power on, power off and input switching to a compatible display or projector, although the manufacturer does not guarantee control of every device. The PressIT app mirrors Android and iOS/iPadOS devices. The previous model needed a router for multicast, and this model removes that requirement. In Teams meetings, the presenter's PC screen also reaches remote participants.

Resolution
3840 x 2160 (4K UHD)
Type
Wireless Presentation System

Key features

01
4K transmit
transmitters send video and stills up to 3840 x 2160 at 30p, and the receiver outputs up to 3840 x 2160 at 60p.
02
Up to 32 transmitters
one receiver accepts up to 32 transmitters at the same time for large training groups.
03
Four-screen split display
Multi mode shows split-screen images from up to four PCs or smartphones on one display.
04
Multicast to three receivers
one transmitter shares video and audio with up to three receivers without a router.
05
6 GHz wireless LAN
supports 2.4 GHz, 5 GHz and 6 GHz bands, with a larger channel set that makes interference between nearby receivers less likely.
06
HDMI-CEC control
power and input switching follow a compatible display or projector, which must support HDMI-CEC.
07
Mobile mirroring
the PressIT app mirrors Android and iOS/iPadOS device screens onto the display.
08
Teams sharing
the presenter's PC screen reaches the room display and the Teams screen at the same time.

Specifications

General
ApplicationMeetings, seminars and large-group training
CompatibilityAndroid and iOS/iPadOS devices (PressIT app)
Key Features4K transmit, 6 GHz wireless LAN, up to 32 transmitters per receiver, multicast to three receivers, four-screen split display, HDMI-CEC support, Android and iOS mirroring, WPA2/WPA3 security
ModelTY-WPS2
TypeWireless Presentation System
Display
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Connectivity
Data RateUp to 2.4 Gbps (receiver), 1.2 Gbps (transmitter)
Ethernet10/100 Mbps RJ45 (receiver)
Frequency Band2.4 GHz, 5 GHz, 6 GHz
Operating Range30 m (5 GHz), 15 m (6 GHz), line of sight
PortsHDMI In, USB Type-A, USB Type-C, RJ45 LAN
Wi-FiIEEE 802.11 a/b/g/n/ac/ax (receiver)
Power
Power Consumption10 W (receiver, during image display)
Power SourceDC 5 V (receiver 2 A, transmitter 0.9 A)
Compliance
Security FeaturesWPA2 / WPA3
