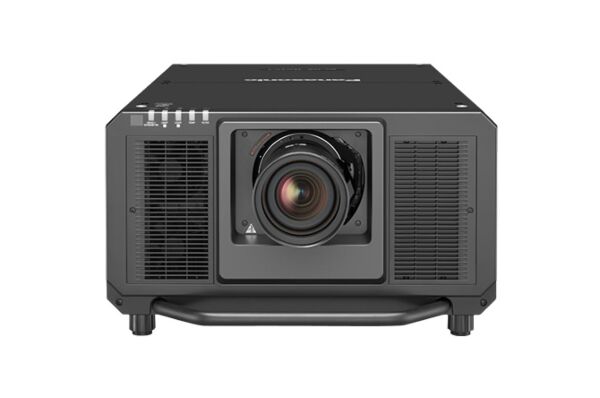

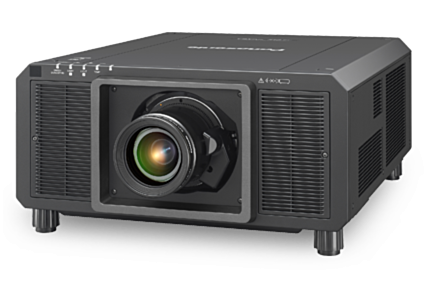

Panasonic Large-Venue Projector Series PT-RZ21K / PT-RS20K
- SKU: PT-RZ21K / PT-RS20K
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-RZ21K PT-RS20K Power supply AC 200 V–240 V, 7.7 A, 50/60 Hz (Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.6 A].) AC 200 V–240 V, 7.7 A, 50/60 Hz (Light... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
|
|
|
|
|---|---|---|
| Power supply | AC 200 V–240 V, 7.7 A, 50/60 Hz (Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.6 A].) |
AC 200 V–240 V, 7.7 A, 50/60 Hz (Light output will decrease to approximately 50 % when using the projector with AC 100 V to AC 120 V [9.6 A].) |
| Power consumption | 1,510 W (0.3 W with Standby Mode set to ECO*1, 4 W with Standby Mode set to NORMAL) | 1,510 W (0.3 W with Standby Mode set to ECO*1, 4 W with Standby Mode set to NORMAL) |
| DLP™ chip | ||
| Panel size | 24.4 mm (0.96 in) diagonal (16:10 aspect ratio) |
24.1 mm (0.95 in) diagonal (4:3 aspect ratio) |
| Display method | DLP™ chip x 3, DLP™ projection system | DLP™ chip x 3, DLP™ projection system |
| Pixels | 6,912,000 (1920 x 1200 x 3) pixels | 4,410,000 (1400 x 1050 x 3) pixels |
| Refresh Rate | 120 Hz*2 | 120 Hz*2 |
| Lens | Optional (no lens included with this model) | Optional (no lens included with this model) |
| Light source | Laser Diode (Laser class: Class 1)(Class 3R for US models), Light source life: 20,000 hours (NORMAL Mode, brightness decreases to approx. 50 %) / 24,000 hours (ECO Mode, brightness decreases to approx. 50 %) | Laser Diode (Laser class: Class 1)(Class 3R for US models), Light source life: 20,000 hours (NORMAL Mode, brightness decreases to approx. 50 %) / 24,000 hours (ECO Mode, brightness decreases to approx. 50 %) |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000 in) with 16:10 aspect ratio 1.78–15.24 m (70–600 in) with the ET-D75LE8, 16:10 aspect ratio 3.05–15.24 m (120–600 in) with the ET-D75LE95, 16:10 aspect ratio |
1.78–25.4 m (70–1,000 in) with 4:3 aspect ratio 1.78–15.24 m (70–600 in) with the ET-D75LE8, 4:3 aspect ratio 3.05–15.24 m (120–600 in) with the ET-D75LE95, 4:3 aspect ratio |
| Brightness | 21,000 lm (Center)*3 / 20,000 lm*4 | 21,000 lm (Center)*3 / 20,000 lm*4 |
| Center-to-corner uniformity | 90 % | 90 % |
| Contrast | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 1920 x 1200 pixels | 1400 x 1050 pixels |
| RGB | fH: 15−100 kHz, fV: 24−120 Hz, dot clock: 162 MHz or less | fH: 15−100 kHz, fV: 24−120 Hz, dot clock: 162 MHz or less |
| Video/YC | fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM) |
fH: 15.73 kHz, fV: 59.94 Hz (NTSC/NTSC4.43/PAL-M/PAL60), fH: 15.63 kHz, fV: 50 Hz (PAL/PAL-N/SECAM) |
| Optical axis shift*5 (from center of screen) |
||
| Vertical | ±55 % (±44 % with ET-D75LE6, +68 % − +78 % with ET-D75LE95) (powered) |
±50 % (±40 % with ET-D75LE6, +67 % − +71 % with ET-D75LE95) (powered) |
| Horizontal | ±20 % (±15 % with ET-D75LE6, ±12 % with ET-D75LE95) (powered) |
±30 % (±20 % with ET-D75LE6, ±8 % with ET-D75LE95) (powered) |
| Keystone correction range | Vertical: ±40° (± 22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±15° |
Vertical: ±40° (± 22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±15° |
| Keystone correction range with optional upgrade kit (ET-UK20) |
Vertical: ±45° (± 40° with ET-D75LE10/20, ±22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±40° (±15° with ET-D75LE50/6), Up to a total of ±55° during simultaneous horizontal and vertical correction |
Vertical: ±45° (± 40° with ET-D75LE10/20, ±22° with ET-D75LE50, ±28° with ET-D75LE6), Horizontal: ±40° (±15° with ET-D75LE50/6), Up to a total of ±55° during simultaneous horizontal and vertical correction |
| Installation | Horizontal/vertical, free 360-degree installation | Horizontal/vertical, free 360-degree installation |
| Cabinet materials | Molded plastic | Molded plastic |
| Dimensions (W x H x D) | 598 × 270 × 725 mm (23 17/32˝ x 10 5/8˝ x 28 17/32˝) (not including protruding parts) | 598 × 270 × 725 mm (23 17/32˝ x 10 5/8˝ x 28 17/32˝) (not including protruding parts) |
| Weight | 49.0 kg (108 lbs) | 49.0 kg (108 lbs) |
| Operation noise*4 | 46 dB | 46 dB |
| Operating environment | Operating temperature: 0–50 °C (32–122 °F)*6; Operating humidity: 10–80 % (no condensation) | Operating temperature: 0–50 °C (32–122 °F)*6; Operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro Software (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Upgrade Kit), Smart Projector Control |
Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro Software (ET-UK20 Upgrade Kit, ET-CUK10 Auto Screen Adjustment Upgrade Kit), Smart Projector Control |
No datasheet available.
