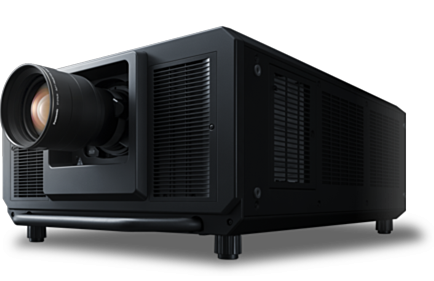

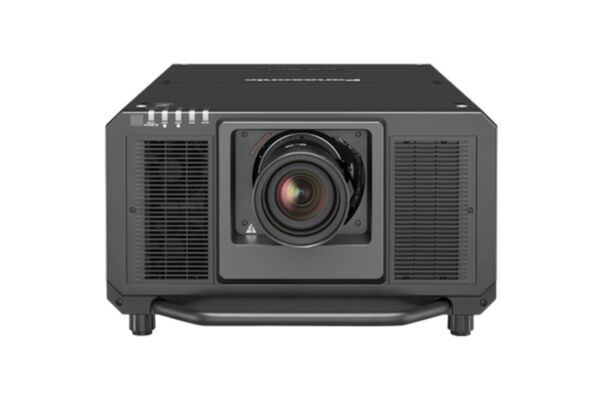

Panasonic Large-Venue Projector Series PT-RZ12K / PT-RS11K
- SKU: PT-RZ12K / PT-RS11K
Actual Stock Can Be Confirmed After Placing the Order.
Specification PT-RZ12K PT-RS11K Power supply 100–240 V AC, 50/60 Hz 100–240 V AC, 50/60 Hz Power consumption*1 1,200 W (1,280 VA) (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal);Average power consumption: 800 W (Normal Mode), 680... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
|
|
|
|
|---|---|---|
| Power supply | 100–240 V AC, 50/60 Hz | 100–240 V AC, 50/60 Hz |
| Power consumption*1 | 1,200 W (1,280 VA) (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal); Average power consumption: 800 W (Normal Mode), 680 W (Eco Mode), 620 W (Long Life 1 Mode), 590 W (Long Life 2 Mode), 550 W (Long Life 3 Mode) |
1,200 W (1,280 VA) (0.3 W with Standby Mode set to Eco*2, 4 W with Standby Mode set to Normal); Average power consumption: 800 W (Normal Mode), 680 W (Eco Mode), 620 W (Long Life 1 Mode), 590 W (Long Life 2 Mode), 550 W (Long Life 3 Mode) |
| DLP™ chip | ||
| Panel size | 24.4 mm (0.96˝) diagonal (16:10 aspect ratio) | 24.1 mm (0.95˝) diagonal (4:3 aspect ratio) |
| Display method | DLP™ chip x 3, DLP™ projection system | DLP™ chip x 3, DLP™ projection system |
| Pixels | 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels | 1,470,000 (1400 x 1050) x 3, total of 4,410,000 pixels |
| Refresh rate | 120 Hz*3 | 120 Hz*3 |
| Lens | Optional powered zoom and fixed-focus lenses | Optional powered zoom and fixed-focus lenses |
| Light source | Laser diode (Class 1), Light source life*4: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode) |
Laser diode (Class 1), Light source life*4: 20,000 hours (Normal Mode) / 24,000 hours (Eco Mode) |
| Screen size (diagonal) | 1.78–25.4 m (70–1,000˝), 1.78–15.24 m (70–600˝) with the ET-D75LE8, 3.05-15.24 m (120–600˝) with the ET-D75LE90, 16:10 aspect ratio |
1.78–25.4 m (70–1,000˝), 1.78–15.24 m (70–600˝) with the ET-D75LE8, 3.05–15.24 m (120–600˝) with the ET-D75LE90, 4:3 aspect ratio |
| Brightness*5 | 12,000 lm | 12,000 lm |
| Contrast*5 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) |
| Resolution | 1920 x 1200 pixels*6 | 1400 x 1050 pixels*6 |
| Supported RGB signal | XGA–WUXGA | XGA–WUXGA |
| Supported video signal | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i | NTSC/PAL/SECAM, 480p/i, 720p, 1080p/i |
| Keystone correction range*7 | Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90) | Vertical: ±40° (±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±15° (0° with ET-D75LE90) |
| Keystone correction range with optional Upgrade Kit ET-UK20*7 | Vertical: ±45° (±40° with ET-D75LE10/ET-D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE50/ET-D75LE6, 0° with ET-D75LE90) | Vertical: ±45° (±40° with ET-D75LE10/ET-D75LE20, ±22° with ET-D75LE50, ±28° with ET-D75LE6, +5° with ET-D75LE90), horizontal: ±40° (±15° with ET-D75LE50/ET-D75LE6, 0° with ET-D75LE90) |
| Installation | Ceiling/floor, front /rear, free 360-degree installation | Ceiling/floor, front /rear, free 360-degree installation |
| Cabinet materials | Molded plastic | Molded plastic |
| Dimensions (W x H x D) | 578 x 270 x 725 mm (22 3/4˝ x 10 5/8˝ x 28 17/32˝) (optional lens, legs and lens cover not included), 578 x 323.5 x 740 mm (22 3/4˝ x 12 23/32˝ x 29 1/8˝) (Including legs at shortest position and protruding parts) |
578 x 270 x 725 mm (22 3/4˝ x 10 5/8˝ x 28 17/32˝) (optional lens, legs and lens cover not included), 578 x 323.5 x 740 mm (22 3/4˝ x 12 23/32˝ x 29 1/8˝) (Including legs at shortest position and protruding parts) |
| Weight*8 | Approx. 44.0 kg (97 lbs) (optional lens not included) | Approx. 44.0 kg (97 lbs) (optional lens not included) |
| Operation noise*5 | 43 dB | 43 dB |
| Operating environment | Operating temperature: 0–50 °C (32–122 °F)*9, operating humidity: 10-–80 % (no condensation) | Operating temperature: 0–50 °C (32–122 °F)*9, operating humidity: 10–80 % (no condensation) |
| Applicable software | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10*10 Auto Screen Adjustment Kit) | Logo Transfer Software, Multi Monitoring & Control Software, Early Warning Software, Geometry Manager Pro (ET-UK20 Upgrade Kit and ET-CUK10*10 Auto Screen Adjustment Kit) |
No datasheet available.
