Panasonic Installation Projector PT-RZ475
- SKU: PT-RZ475
Actual Stock Can Be Confirmed After Placing the Order.
Specification Model PT-RZ475 Power supply 100-240 V AC, 5.0-1.8 A, 50/60 Hz Power consumption 430 W (440 VA) (230 W*1 with LIGHT POWER set to NORMAL/Eco1,170 W*1 with LIGHT POWER set to Eco2,0.5 W with STANDBY MODE set to ECO*2, 8 W with STANDBY... See More
EMAIL
info@procure.ae
TELEPHONE
(+971) 454 65041
WHATSAPP
(+971) 454 65041
FREE SHIPPING
All orders over AED1999/-
Specification
Model |
PT-RZ475 |
|
|---|---|---|
| Power supply | 100-240 V AC, 5.0-1.8 A, 50/60 Hz | |
| Power consumption | 430 W (440 VA) (230 W*1 with LIGHT POWER set to NORMAL/Eco1, 170 W*1 with LIGHT POWER set to Eco2, 0.5 W with STANDBY MODE set to ECO*2, 8 W with STANDBY MODE set to NORMAL) |
|
| DLP™ chip | Panel size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) |
| Display method | DLP™ chip x 1, DLP™ projection system | |
| Pixels | 2,073,600 (1,920 x 1,080) pixels | |
| Lens | Fixed, powered focus, F 1.8, f 11.9 mm | |
| Throw ratio | 0.8:1 | |
| Light source | LED/Laser-combined (R, B: LED; G: Laser diode) | |
| Screen size (diagonal) | 1.02-5.08 m (40-200 in), 16:9 aspect ratio | |
| Brightness*3 | 3,000 lm | |
| Center-to-corner uniformity*3 | 90 % | |
| Contrast*3 | 20,000:1 (full on/full off) | |
| Resolution | 1,920 x 1,080 pixels (Input signals that exceed this resolution will be converted to 1,920 x 1,080 pixels.) |
|
| Scanning frequency | HDMI/DVI-I(digital) | fH: 27-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz |
| DVI-I(analog)/RGB | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower | |
| YPBPR (YCBCR) |
fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p] |
|
| Video | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
|
| Optical axis shift | Vertical | ±10 % from center of screen (manual) |
| Horizontal | ±3.4 % from center of screen (manual) | |
| Keystone correction range | Vertical: ±40 ° | |
| Installation | Ceiling/floor, front/rear | |

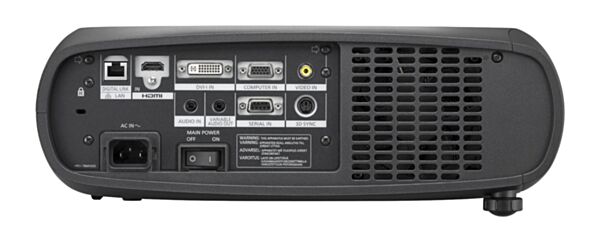

| Terminals | HDMI IN | HDMI 19-pin x 1 (Deep Color, compatible with HDCP) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*4, compatible with non-interlaced signals only, dot clock: 25-162 MHz, audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
| DVI-I IN | DVI-I 29-pin x 1 Digital: (DVI 1.0 compliant, compatible with HDCP, compatible with single link only) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/25p, 1080/24p, 1080/24sF, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*4, compatible with non-interlaced signals only, dot clock: 25 -162 MHz; Analog: (RGB/YPBPR (YCBCR)) |
|
| COMPUTER (RGB) IN |
D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1) | |
| VIDEO IN | Pin jack x 1 (Composite VIDEO) | |
| AUDIO IN | M3 x 1 (L-R x 1) | |
| AUDIO OUT | M3 x 1 (L-R x 1) for output (variable) | |
| SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) | |
| LAN/DIGITAL LINK | RJ-45 x 1 (for network and DIGITAL LINK (video/audio/network/serial control) connection, 100Base-TX, compatible with PJLink™, HDCP compatible, Deep Color compatible) 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA (640 x 480)-WUXGA (1,920 x 1,200)*4, compatible with non-interlaced signals only, dot clock: 25-162 MHz |
|
| 3D SYNC OUT | Mini DIN 3-pin x 1, for 3D transmitter connection | |
| Cabinet materials | Molded plastic | |
| Dimensions (W x H x D) | 455 x 137*5 x 409 mm (17-29/32 x 5-13/32*5 x 16-3/32 in) (lens included) | |
| Weight*6 | Approximately 11.5 kg (25.4 lbs) | |
| Operation noise*3 | 35 dB (LIGHT POWER mode: NORMAL) | |
| Operating environment | Operating temperature: 0-45 °C*7 (32-113 °F*7), operating humidity: 20-80 % (no condensation) |
|
| Supplied accessories | Power cord (with secure lock) x 1*8, wireless remote control unit, batteries for remote control (R6/LR6/AA type x 2), software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software) |
|
No datasheet available.
