Panasonic · TH-55EQ3 · Digital Signage

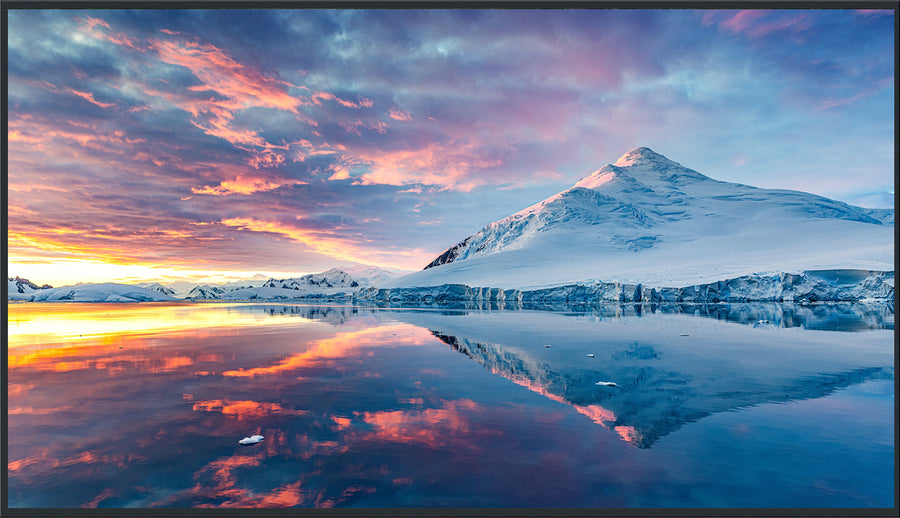

Panasonic EQ3 Series 55-inch 4K UHD Professional Display – TH-55EQ3

Panasonic EQ3 Series 55-inch 4K UHD Professional Display – TH-55EQ3

The Panasonic TH-55EQ3 is a 55-inch 4K UHD professional display for conference rooms, classrooms and digital signage. It offers 500 nits brightness, 5,000:1 typical contrast and an anti-glare panel, with three HDMI inputs and LAN and RS-232C control. Procure.ae supplies the TH-55EQ3 across the UAE.

The TH-55EQ3 has a 3840 x 2160 panel with about 8.29 million pixels. Its 500 nits brightness and anti-glare surface, with 25% haze, keep the picture visible in bright rooms. Typical contrast is 5,000:1, and the typical grey-to-grey response time is 6.5 ms. The 178-degree horizontal and vertical viewing angle keeps the picture usable from most seats, and built-in 20 W speakers (10 W + 10 W) provide audio.

The 55-inch model suits conference rooms, classrooms and retail digital signage. It mounts on a 400 x 400 mm VESA pattern with M6 screws, 18 mm deep, and weighs approximately 15.6 kg. Power consumption is listed at 142 W. It can run 18 hours per day, and the portrait or landscape orientation lets content run vertically or horizontally.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Professional Display
Weight
15.6 kg

Key features

01
4K UHD resolution
3840 x 2160 pixels, about four times the pixels of a Full HD display.
02
500 nits brightness
Typical brightness of 500 cd/m² for clear images in bright rooms.
03
5,000:1 typical contrast
Rated contrast ratio for detailed images in conference rooms and classrooms.
04
6.5 ms response time
Typical grey-to-grey response time of 6.5 ms for moving content.
05
Anti-glare panel
A haze 25% surface suppresses reflected glare from bright light.
06
Portrait or landscape
Installs in either orientation, with a 0 to 20 degree forward tilt in landscape.
07
Three HDMI inputs
HDCP 2.2 supported, alongside a PC input and a USB Type-A port.
08
RS-232C and LAN control
External control over RS-232C and LAN with PJLink support.

Specifications

General
Key Features4K UHD resolution, 500 nits, anti-glare panel (haze 25%), portrait or landscape use, USB media playback, three HDMI inputs, PJLink LAN control, built-in 20 W speakers
ModelTH-55EQ3
TypeProfessional Display
Display
Aspect Ratio16:9
Bezel Size13.9 mm (right side)
Brightness500 nits
Contrast Ratio5,000:1
OrientationLandscape / Portrait
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size55 inch
Viewing Angle178° (H) / 178° (V)
Audio
Speaker Output20 W (10 W + 10 W)
Connectivity
ConnectivityRS-232C, LAN (PJLink)
Ethernet10BASE-T / 100BASE-TX (RJ45)
HDMI Inputs3 (HDCP 2.2)
Input Voltage110–240 V AC, 50/60 Hz
PortsHDMI In × 3, PC In × 1, Audio In × 1, Audio Out × 1, LAN × 1, USB Type-A × 1, RS-232C × 1
ProtocolsPJLink
Serial PortRS-232C (D-sub 9-pin)
USB PortsUSB Type-A × 1 (DC 5 V / 2 A, USB 2.0)
Power
Power Consumption142 W
Standby Power0.5 W (approx.)
Physical
Duty Cycle18 hours per day
MountingVESA wall mount, M6 screws, 18 mm deep
Operating Humidity20% to 80% (no condensation)
Operating Temperature0 to 40 °C (up to 1,400 m altitude)
Tilt0 to 20 degrees forward (landscape)
VESA Mount400 x 400 mm
Weight15.6 kg
