Panasonic 50-inch 4K UHD Digital Signage Display – TH-50SQ3 — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Panasonic · TH-50SQ3 · Digital Signage

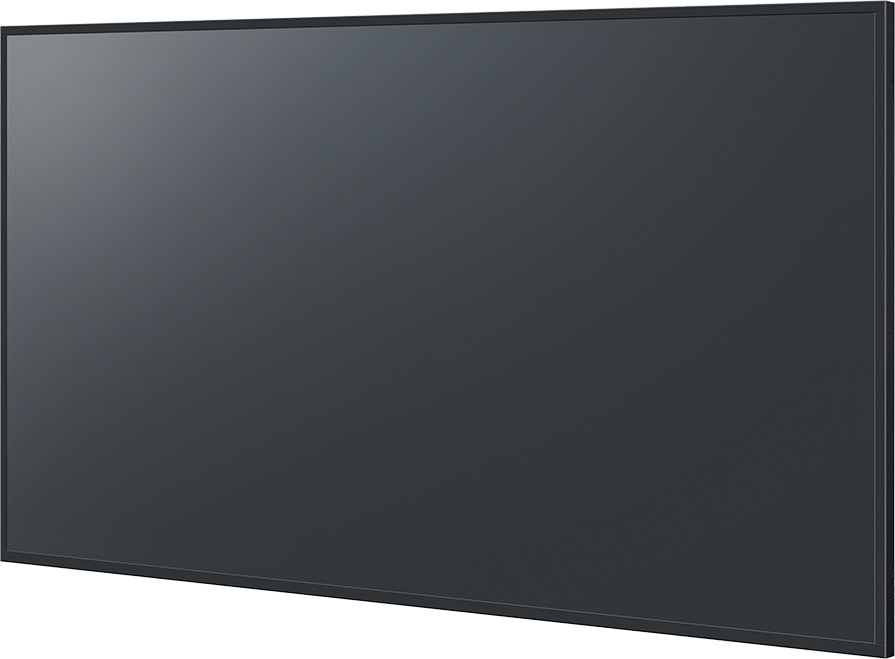

Panasonic 50-inch 4K UHD Digital Signage Display – TH-50SQ3

Panasonic 50-inch 4K UHD Digital Signage Display – TH-50SQ3

The Panasonic TH-50SQ3 is a 50-inch-class 4K UHD professional display for digital signage, meeting rooms and classrooms. It offers 3840 x 2160 resolution, 500 cd/m² typical brightness and an anti-glare panel, with three HDMI inputs and RS-232C and LAN (PJLink) control. Procure.ae supplies the TH-50SQ3 across the UAE.

The SQ3 Series displays 4K UHD images at 500 cd/m² typical brightness, with a 5,000:1 typical contrast ratio and a 9.5 ms typical G-to-G response time. The 16:9 panel has a 178°/178° viewing angle and an anti-glare surface (haze 25%) that suppresses reflected light in bright rooms. A built-in 20 W speaker system (10 W + 10 W) and USB media playback let the display run 4K content from a USB memory stick without a PC or set-top box. The operating time is specified at 24 hours a day.

The display mounts on a wall using a VESA 400 x 400 mm pattern with M6 screws, and it can be set in landscape or portrait orientation with up to 20 degrees of forward or backward tilt. It has three HDMI inputs with HDCP 2.2, a PC input, audio input and two audio outputs, and it is controlled over RS-232C or LAN with PJLink. The SQ3 Series spans 43 to 86-inch models, so the 50-inch size suits smaller meeting rooms, huddle spaces and corridors.

Screen Size
50 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
Weight
13.5 kg

Key features

01
4K UHD Resolution
3840 x 2160 pixels, about four times the pixels of a Full HD display.
02
500 nits Brightness
500 cd/m² typical brightness keeps images visible in bright rooms.
03
Anti-glare Panel
Anti-glare surface (haze 25%) reduces reflected glare from bright lights.
04
Flexible Mounting
VESA 400 x 400 mm wall mount, landscape or portrait orientation, and up to 20° tilt.
05
Connectivity
Three HDMI inputs (HDCP 2.2), PC input, USB Type-A port and stereo audio input.
06
USB Media Playback
Plays 4K content directly from a USB memory stick without a PC.
07
Built-in Speakers
Built-in 20 W speaker system (10 W + 10 W).
08
Network and Serial Control
RS-232C terminal and RJ45 LAN compatible with PJLink for external control.

Specifications

General
Key Features4K UHD panel, 500 nits, anti-glare surface, USB media playback, PJLink LAN control, built-in speakers
ModelTH-50SQ3
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Contrast Ratio5,000:1
OrientationLandscape / Portrait
Resolution3840 x 2160 (4K UHD)
Response Time9.5 ms
Screen Size50 inch
Viewing Angle178° / 178°
Performance
Duty Cycle24 h/day
Audio
Speaker Output20 W (10 W + 10 W)
Connectivity
Input Voltage110–240 V AC, 50/60 Hz
PortsHDMI In × 3, PC In × 1, RS-232C × 1, LAN (RJ45) × 1, USB Type-A × 1, Audio In × 1, Audio Out × 2
Power
Power Consumption115 W (on mode average)
Physical
Operating Humidity20% to 80% (non-condensing)
Operating Temperature0 to 40 °C
Tilt0 to 20° forward / backward
VESA Mount400 x 400 mm
Weight13.5 kg
QR code to Panasonic 50-inch 4K UHD Digital Signage Display – TH-50SQ3 on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
