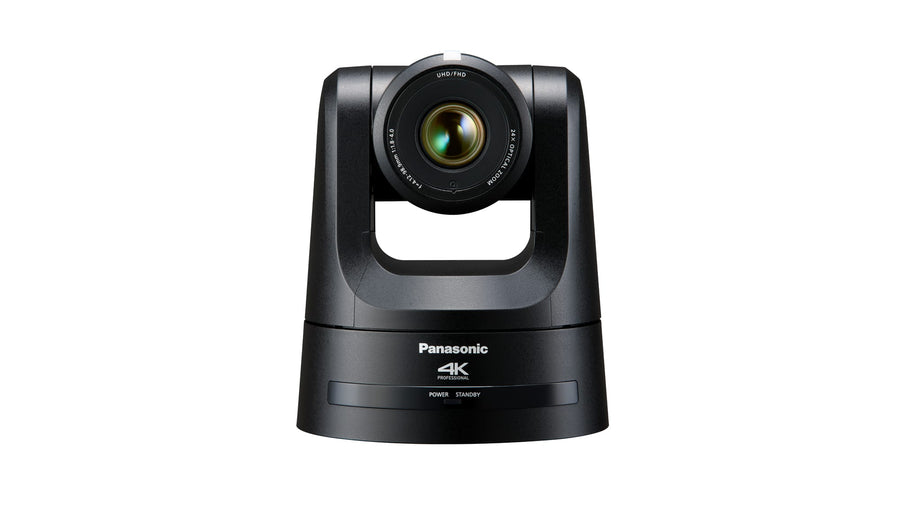

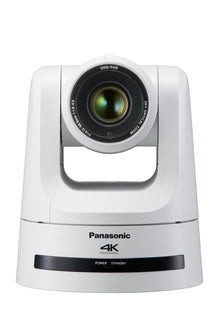

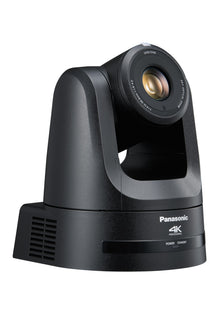

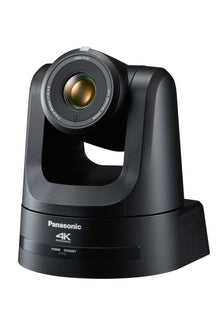

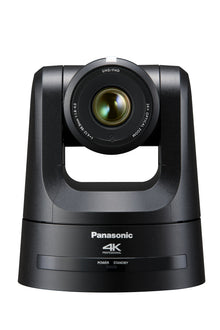

Panasonic 24x Optical Zoom 4K PTZ Camera – AW-UE100

The Panasonic AW-UE100 is a 4K PTZ camera for live remote and studio production, with a 24x optical zoom lens, 12G-SDI output and high bandwidth NDI and SRT streaming over IP. It outputs UHD 3840 x 2160 video at 59.94p and 50p and suits broadcast, staging, corporate and sports events. Procure.ae supplies the AW-UE100 across the UAE.

The AW-UE100 uses a 1/2.5-type 4K MOS sensor with about 8.49 million effective pixels and a 24x optical zoom lens (f=4.12 mm to 98.9 mm). Its 74.1° wide-end horizontal view covers a wide area from a limited installation space, and the zoom keeps image quality at high ratios. Image resolutions run from 3840 x 2160 down to 320 x 180. High bandwidth NDI transmits 4K at up to 250 Mbps over one LAN cable, and a direct drive motor gives smooth pan and tilt movement.

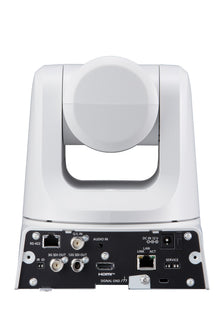

SRT keeps high-quality video stable on unstable networks, and RTMP and RTMPS stream directly to live broadcasting services. FreeD command output sends pan, tilt, zoom, focus and iris information with a synchronisation signal for AR and VR systems, without a separate encoder. The camera is controlled over LAN IP and RS-422, works with Panasonic remote controllers and PTZ Control Center software, and can be operated from Windows, macOS, iPhone, iPad and Android browsers.
