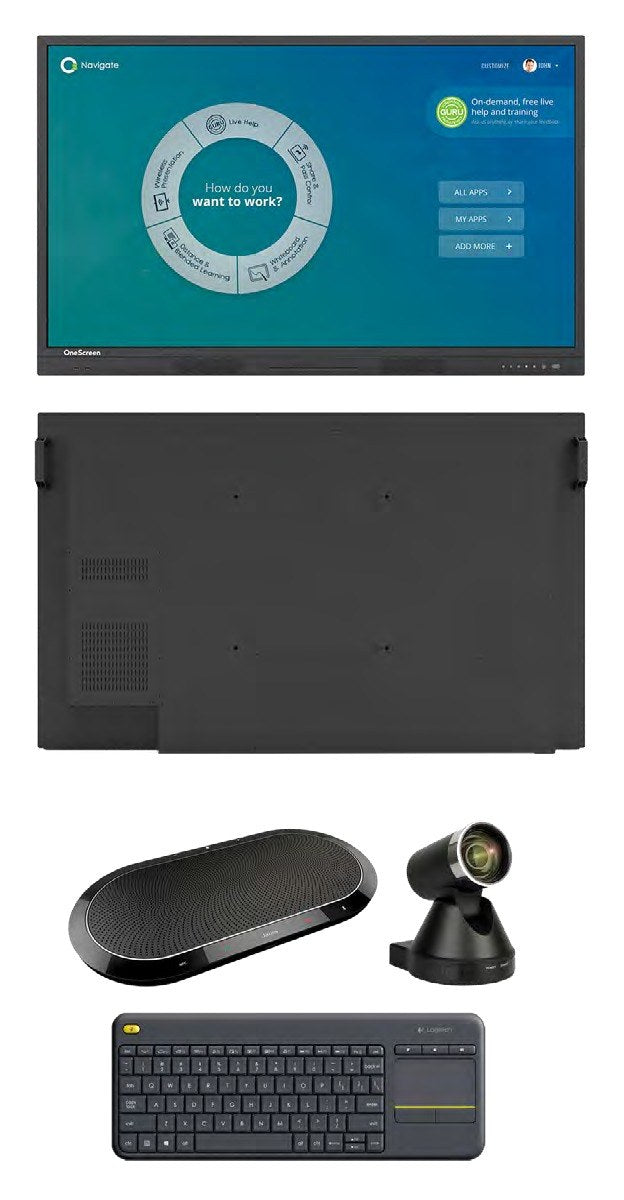

OneScreen Hubware H5 86-inch Interactive Flat Panel with OPS PC
The OneScreen Hubware H5 86 is a 86-inch 4K UHD interactive flat panel with a 20-point infrared touch screen, an Intel Core i7 OPS PC running Windows 10 Pro, an Android 6 system and a 1080p PTZ camera, made for meeting rooms and classrooms. Procure.ae supplies it in the UAE.
The OneScreen Hubware H5 86 uses an Original LG IPS LED panel at 3840 x 2160 resolution with 400 nits brightness, a 60 Hz refresh rate, 1.07 billion colours (10-bit) and a 178-degree viewing angle. Touch is 20-point infrared by finger or stylus, with 2 mm accuracy and a touch response time below 8 ms. The surface is 8 Mohs anti-glare glass, and Dolby stereo speakers deliver 15 W + 15 W.
The OPS PC combines an Intel Core i7 7th Gen processor, 8 GB RAM, a 256 GB SSD and Windows 10 Pro, while a separate Android 6 system adds Google Play Store access. Inputs include 3 HDMI, DisplayPort and VGA, and a flush wall mount kit for a 600 x 400 mm VESA pattern is provided. Procure.ae is an authorised reseller of OneScreen and delivers and installs in the UAE and across MEA.
Key features
Specifications
| Key Features | 4K UHD display, 20-point infrared touch, Intel Core i7 OPS PC with Windows 10 Pro, Android 6 with Google Play, 1080p PTZ camera, speakerphone, Dolby 15 W + 15 W speakers, remote management |
| Model | Hubware H5 86 |
| Type | Interactive Flat Panel with OPS PC |
| What's in the Box | Wall mount kit, display and PTZ camera remotes, Logitech wireless keyboard with touchpad, HDMI, touch USB, VGA, AUX and power cables, 2 styluses, extendable wand |
| Brightness | 400 nits |
| Camera | OneScreen PTZ camera, 1080p, 12x optical zoom, 16x digital zoom, 72.5° lens, 170° rotation |
| Color Depth | 10-bit (1.07 billion colours) |
| Display Type | Original LG IPS LED |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touch Accuracy | 2 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | <8 ms |
| Touch Technology | Infrared |
| Touchscreen | Yes, finger or stylus |
| Viewing Angle | 178° |
| Operating System | Windows 10 Pro (OPS PC); Android 6 (display) |
| Processor | Intel Core i7 7th Gen (OPS PC); quad-core Cortex-A53 1.5 GHz (Android) |
| RAM | 8 GB (OPS PC); 2 GB (Android) |
| Storage | 256 GB SSD (OPS PC); 64 GB (Android) |
| Audio | Dolby stereo speakers |
| DisplayPort | DisplayPort In × 1 |
| Microphone | Speakerphone with adaptive array microphones, 4.6 m range |
| Speaker Output | 15 W + 15 W |
| Bluetooth | Bluetooth 4.0 |
| Ethernet | RJ45 × 2; Gigabit Ethernet (OPS PC) |
| HDMI Inputs | 3 |
| HDMI Outputs | 1 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | OPS PC fitted |
| Ports | HDMI In × 3, DisplayPort In × 1, VGA In × 1, YPbPr × 1, AV In × 1, Audio In × 1, Mic × 1, HDMI Out × 1, SPDIF × 1, AV Out × 1, earphone × 1, RS-232 × 1, RJ45 × 2 |
| USB Ports | USB × 5 (auto-switch between Android and OPS PC), camera USB × 1, touch USB × 2 |
| VGA Input | 1 |
| Wi-Fi | Dual-band 802.11 a/b/g/n (2.4 GHz and 5 GHz) |
| Dimensions | 1971 x 1069 x 104 mm |
| Shipping Dimensions | 2192 x 1481 x 361 mm |
| Shipping Weight | 128.8 kg |
| Surface Protection | 8 Mohs anti-glare tempered glass |
| VESA Mount | 600 x 400 mm |
| Weight | 98.9 kg |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
