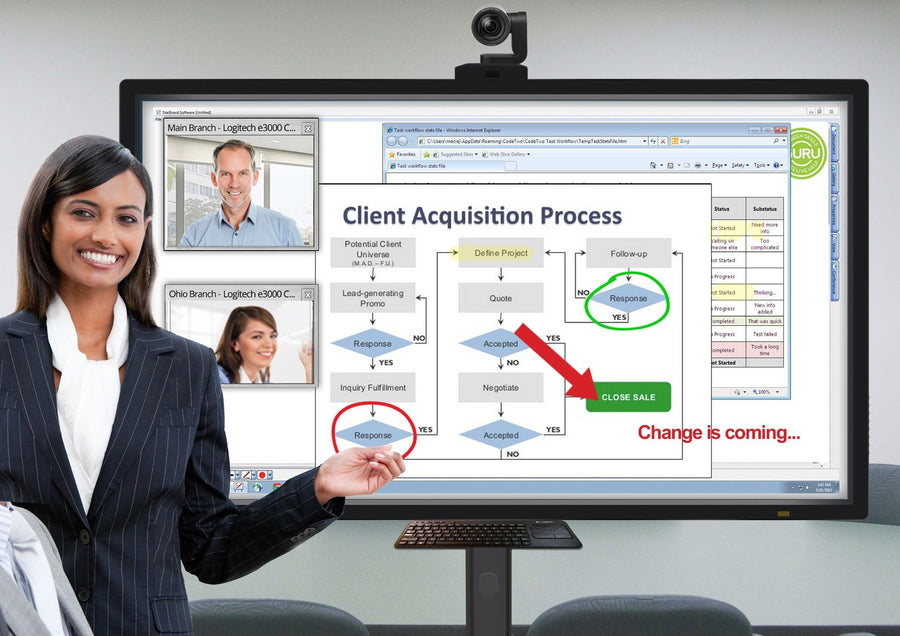

OneScreen Hubware H3 70-inch Interactive Flat Panel with OPS PC
The OneScreen Hubware H3 70 is a 70-inch interactive flat panel with an integrated Intel Core i7 OPS PC, a motorised 12x PTZ camera and 10-point infrared touch, built for meeting rooms and classrooms. It runs Windows 8.1 Professional alongside Android 4.2.2 and supports SIP and H.323 video calls. Procure.ae supplies it in the UAE.
The OneScreen Hubware H3 70 is a 70-inch interactive flat panel with a 16:9 aspect ratio, a 4,000:1 dynamic contrast ratio, a 120 Hz refresh rate and a 178-degree viewing angle. Infrared touch recognises 10 points with ±1.5 mm tolerance and a 17 ms scanning speed, and users can write with a finger or any solid object. Two built-in speakers deliver 10 W + 10 W, and the panel measures 1651 x 963 x 71 mm without the top-mounted camera.
The integrated OPS PC uses an Intel Core i7 processor, 8 GB DDR3 memory and a 128 GB SSD with Windows 8.1 Professional, connected to the display through an 80-pin OPS port. The OneScreen PTZ camera VHD-V61U and CHAT 150 speakerphone handle video calls over SIP, H.323 and WebRTC, with up to 4 cameras supported. Procure.ae is an authorised reseller of OneScreen and delivers and installs in the UAE and across MEA.
Key features
Specifications
| Key Features | 10-point infrared touch, Intel Core i7 OPS PC, PTZ camera and speakerphone, built-in OneScreen video conferencing, SIP/H.323 and WebRTC, up to 4 cameras, Wi-Fi and gigabit LAN, 10 W + 10 W speakers |
| Model | Hubware H3 70 |
| Type | Interactive Flat Panel with OPS PC |
| What's in the Box | Monitor remote control, camera remote control, Logitech K400 wireless keyboard, PTZ camera with speakerphone |
| Aspect Ratio | 16:9 |
| Camera | OneScreen PTZ camera VHD-V61U, 12x optical zoom, 72.5° horizontal view, 170° pan |
| Contrast Ratio | 4,000:1 |
| Refresh Rate | 120 Hz |
| Screen Size | 70 inch |
| Touch Accuracy | ±1.5 mm |
| Touch Points | 10-point multi-touch |
| Touch Response Time | 17 ms |
| Touch Technology | Infrared |
| Touchscreen | Yes, writes with finger or any solid object |
| Viewing Angle | 178° |
| Memory Type | DDR3 |
| Operating System | Windows 8.1 Professional (OPS PC); Android 4.2.2 (display) |
| Processor | Intel Core i7 (OPS PC); quad-core (Android) |
| RAM | 8 GB |
| Storage | 128 GB SSD |
| Microphone | CHAT 150 speakerphone with omni-directional full-duplex microphones |
| Speaker Configuration | 2 built-in speakers, left and right |
| Speaker Output | 10 W + 10 W |
| Conference Calling | H.323/SIP video services, WebRTC, up to 4 cameras |
| Connectivity | Ethernet, built-in Wi-Fi (802.11 a/b/g/n) |
| Ethernet | RJ45; 10/100/1000 Mbps (OPS PC) |
| HDMI Inputs | 3 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | 80-pin OPS port |
| Ports | HDMI In × 3, VGA × 1, RS-232 × 1, RJ45 × 1, YPbPr × 1, AV Out × 1, headphone × 1, SD card reader × 1, RF In × 1, touch USB × 1 |
| Protocols | SIP, H.323, H.329, WebRTC, LDAP/AD, HTTPS, RTSP, VISCA |
| USB Ports | USB 3.0 × 1, USB 2.0 × 2 (display); USB 3.0 × 2, USB 2.0 × 2 (OPS PC) |
| VGA Input | 1 |
| Wi-Fi | Built-in 802.11 a/b/g/n |
| Dimensions | 1651 x 963 x 71 mm (excludes top-mounted camera) |
| Shipping Dimensions | 1829 x 1270 x 254 mm |
| Shipping Weight | 98.0 kg |
| Weight | 62.1 kg |
| Warranty | 1 year standard (advanced hardware warranty optional) |
