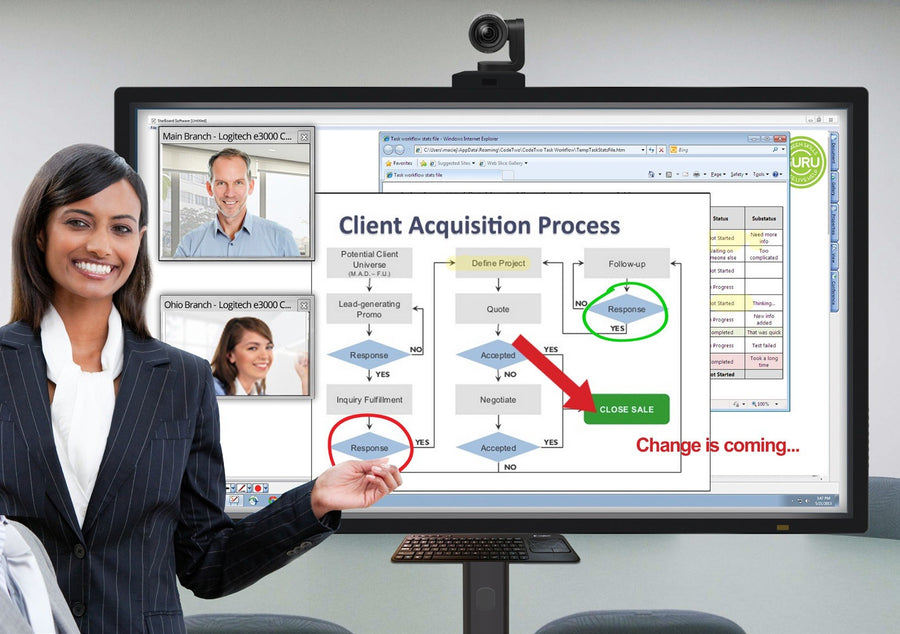

OneScreen Hubware H1 70-inch Interactive Collaboration Display
The OneScreen Hubware H1 70 is a 70-inch all-in-one interactive flat panel for meeting rooms and classrooms. It combines a 1920 x 1080 infrared touchscreen with 6-point touch, a built-in Windows 7 Professional PC and a Logitech ConferenceCam CC3000e camera. Procure.ae is an authorised reseller and supplies it in the UAE.
The OneScreen Hubware H1 70 has a 70-inch 1920 x 1080 Full HD display with infrared touch that needs no pressure and supports 6 touch points. A built-in Lenovo ThinkCentre M73 computer runs Windows 7 Professional 64-bit on an Intel Core i5-4570T processor with 4 GB DDR3 RAM (16 GB maximum) and a 128 GB SSD. A Logitech ConferenceCam CC3000e camera records Full HD 1080p video at 30 frames per second with 10x zoom, and the panel's speakers deliver 10 W + 10 W.
The display side runs Android 4.2 (dual-core) with Hitachi StarBoard Software 9.6. Inputs include 4 HDMI with MHL, HD component, composite, PC and RS-232C inputs, Ethernet and optical audio out. The OneScreen conferencing service supports up to 99 participants using OneScreen Connect or WebRTC and up to 4 participants using SIP and H.323. It suits meeting rooms and classrooms that want one device for video calls, whiteboarding and presenting, and it sits on the network like any other PC.
Key features
Specifications
| Application | Bundled collaboration software: Hitachi StarBoard Software 9.6 |
| Key Features | Full HD infrared touchscreen, 6-point touch, built-in Windows 7 PC, Logitech CC3000e camera, OneScreen Connect conferencing |
| Model | Hubware H1 70 |
| Type | All-in-One Interactive Flat Panel with Built-in PC |
| What's in the Box | Logitech K400 wireless keyboard, monitor remote control, Hitachi WT-1 whiteboard tablet |
| Aspect Ratio | 16:9 |
| Camera | Logitech ConferenceCam CC3000e, Full HD 1080p, 30 fps, 90° field of view, 10x zoom, 260° pan, 130° tilt |
| Contrast Ratio | 4,000,000:1 (dynamic) |
| Refresh Rate | 120 Hz |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Size | 70 inch |
| Touch Points | 6-point multi-touch |
| Touch Technology | Infrared |
| Viewing Angle | 176 x 176 degrees (H x V) |
| Operating System | Windows 7 Professional 64-bit (built-in PC); Android 4.2 (dual-core) (display) |
| Processor | Intel Core i5-4570T 2.90 GHz (3.6 GHz Turbo) |
| RAM | 4 GB DDR3 (16 GB maximum) |
| Storage | 128 GB SSD |
| Microphone | Two omni-directional full-duplex microphones, 6 m (20 ft) range |
| Speaker Configuration | 1-way, 2 speakers |
| Speaker Output | 10 W + 10 W |
| Ethernet | Gigabit Ethernet (PC); Ethernet In × 1 (display) |
| HDMI Inputs | HDMI × 4 |
| Input Voltage | 100–120 V AC, 50/60 Hz |
| Ports | HD component × 1, RS-232C × 1, USB × 1, PC × 1, audio In (L/R) × 2, composite video × 1, HDMI × 4, Ethernet In × 1, MHL, optical digital audio |
| Protocols | SIP, H.323, H.329, WebRTC, LDAP/AD, H.264, VP8, G.711, ICE/STUN/TURN |
| USB Ports | USB × 1 (display); 4 × USB 2.0 and 2 × USB 3.0 (PC) |
| Wi-Fi | 802.11 b/g/n (PC) |
| Dimensions | 1600 x 1110 x 168 mm |
| Shipping Dimensions | 1742 x 1097 x 229 mm |
| Weight | 67.6 kg |
| Security Features | Encrypted meetings by default; HTTPS login and configuration |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
