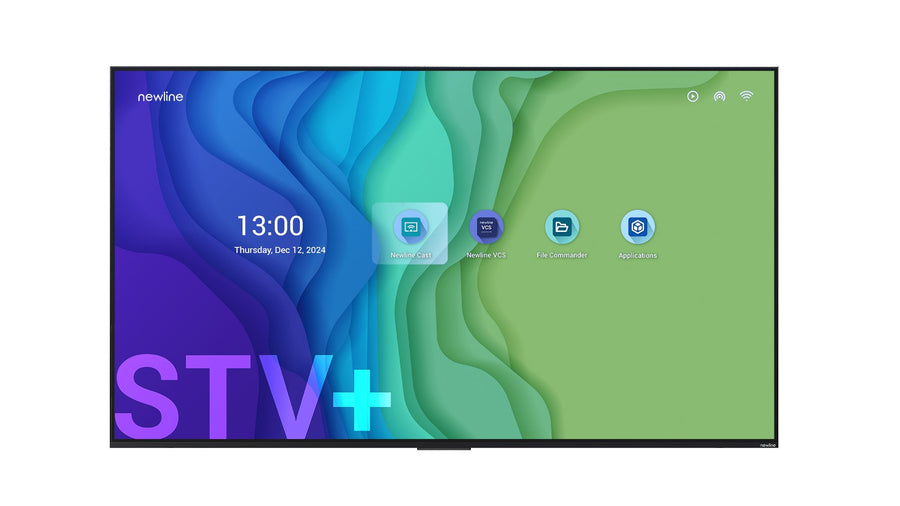

Newline STV+ 75-inch 4K UHD Digital Signage Display – 75" STV+

Newline STV+ 75-inch 4K UHD Digital Signage Display – 75" STV+

The Newline 75-inch STV+ (model 75" STV+) is a 4K UHD digital signage display for business presentations, classroom lessons and signage. It is rated at 400 nits brightness with a 5,000:1 contrast ratio, runs Android 14 and supports Cast+ and Signage Pro software. Procure.ae supplies the 75-inch STV+ across the UAE.

The 75-inch STV+ has a 3840 x 2160 (4K UHD) Direct LED display with a 1650 x 928 mm display area, a 16:9 aspect ratio and 1.07 billion colours. It is rated at 400 nits and a 5,000:1 contrast ratio, with a 6.5 ms response time, a 178 degree viewing angle and a 60 Hz refresh rate. An eight-core processor (4 x A73 at 2.20 GHz and 4 x A53 at 2.20 GHz) with 4 GB RAM and 16 GB storage runs Android 14. Newline specifies a display lifetime of 50,000 hours.

Use the 75-inch STV+ for digital signage, business presentations and classroom lessons. Cast+ enables instant content sharing from any device, Signage Pro streamlines content management, and Display Management Plus centralizes control of settings and updates across all screens. Its rear ports include three HDMI 2.1 inputs, a RS232 port and LAN. Compared with the 65-inch STV+, it is rated at 400 nits rather than 300 nits and weighs 23.1 kg net rather than 16.5 kg.

Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Digital Signage Display
Weight
23.1 kg

Key features

01
4K UHD resolution
3840 x 2160 pixels on a 16:9 Direct LED display with 1.07 billion colours.
02
Non-touch display
Built for signage and presentations, without touch input.
03
Brightness and contrast
400 nits with a 5,000:1 contrast ratio.
04
Android 14 platform
Runs Android 14 with 4 GB RAM and 16 GB storage.
05
Cast+ and Click2Cast
Shares content from any device and works with the Click2Cast dongle for one-click casting.
06
Signage management
Signage Pro integration and Display Management Plus for central control of settings and updates.
07
Port connectivity
Three HDMI 2.1 inputs, USB 3.0, LAN (RJ45), RS232 and AV In.
08
Wake and remote features
Wake-on-LAN, Wake-on-Wi-Fi and over-the-air firmware updates.

Specifications

General
ApplicationDigital signage, business presentations, classroom lessons
CompatibilityCast, Broadcast, App Store, Display Management Plus, Signage Pro, Cast+
Key Features4K UHD, 400 nits, 5,000:1 contrast, Android 14, Cast+ wireless casting, Signage Pro, HDMI ARC/eARC
Model75" STV+
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth1.07 billion colours
Contrast Ratio5,000:1
Display TypeDirect LED
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
TouchscreenNon-touch
Viewing Angle178°
Performance
GraphicsArm Mali-G52
Operating SystemAndroid 14
Processor4 x A73 2.20 GHz, 4 x A53 2.20 GHz
RAM4 GB
Storage16 GB
Storage Conditions-20 to 60 °C; 20% to 80% RH (non-condensing)
Audio
Dynamic RangeHigh Dynamic Range (HDR)
Speaker Configuration2.0
Speaker Output2 x 15 W
Connectivity
BluetoothBluetooth 5.0
EthernetLAN In (RJ45) × 1
HDMI Inputs3 × HDMI 2.1 (HDCP 2.2, 4K at 30 Hz)
PortsUSB Type-A 3.0 × 1, USB Type-A 2.0 × 1, HDMI In 2.1 × 3, Audio Line Out × 1, SPDIF Out × 1, LAN In (RJ45) × 1, RS232 × 1, AV In × 1
Serial PortRS232 × 1
Wi-FiWi-Fi 5
Power
Power Consumption111 W (standard mode)
Standby Power0.5 W
Physical
Dimensions1668 x 956 x 88 mm
Duty Cycle24 hours x 7 days
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount400 x 300 mm
Weight23.1 kg
