Newline STV+ 55-inch 4K Digital Signage Display – STV+ 55" — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Newline · 55" STV+ · Digital Signage

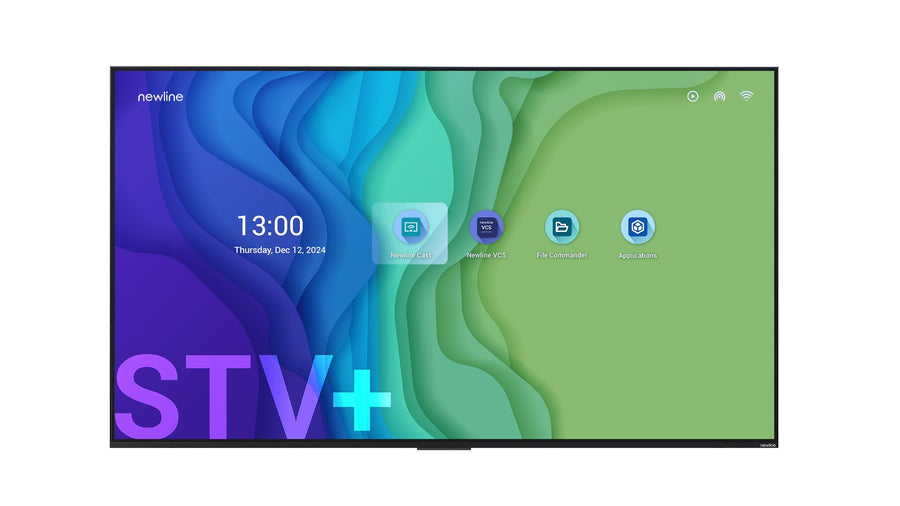

Newline STV+ 55-inch 4K Digital Signage Display – STV+ 55"

Newline STV+ 55-inch 4K Digital Signage Display – STV+ 55"

The Newline STV+ 55-inch is a 4K UHD digital signage display for lobbies, schools and offices. It has a Direct LED backlight, 300 nits brightness, a 5,000:1 contrast ratio and Android 14, with Cast+ wireless casting. Procure.ae supplies the Newline STV+ 55-inch across the UAE.

The STV+ 55-inch has a 3840 x 2160 Direct LED panel with 1.07 billion colours, 300 nits brightness, a 5,000:1 contrast ratio, a 6.5 ms response time and a 178° viewing angle. An octa-core processor with 4 GB RAM and 16 GB storage runs Android 14, with Wi-Fi 5 and Bluetooth 5.0 built in. Two 15 W rear speakers provide audio. The manufacturer lists an operating time of 24 hours a day, seven days a week and a display lifetime of 50,000 hours.

The STV+ 55-inch suits digital signage and communication setups that need networked control. Cast+ handles wireless casting from Windows, Mac, Android and iPhone devices, and Display Management Plus centralises settings and updates across screens. It has three HDMI 2.1 inputs, a LAN port and an RS232 serial port. Compared with the standard STV 55-inch, the manufacturer lists 300 nits against 260 nits, a 5,000:1 contrast ratio against 4,000:1 and 4 GB RAM against 2 GB.

Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
300 nits
Type
Digital Signage Display
Weight
10.5 kg

Key features

01
Native 4K UHD
3840 x 2160 resolution with 1.07 billion colours.
02
Direct LED backlight
300 nits brightness and a 5,000:1 contrast ratio.
03
Android 14 platform
an octa-core processor with 4 GB RAM and 16 GB storage.
04
Wireless casting
Cast+ shares content from Windows, Mac, Android and iPhone devices.
05
Signage Pro integration
content management through Newline Signage Pro.
06
Display Management Plus
central control of settings and updates across screens.
07
Remote management
Wake-on-LAN, Wake-on-WiFi and over-the-air firmware updates.
08
Connectivity
three HDMI 2.1 inputs, LAN (RJ45), RS232 and USB ports.

Specifications

General
ApplicationDigital signage
CompatibilityNewline Interactive Ecosystem: Cast, Broadcast, App Store, Display Management Plus, Signage Pro, Cast+
Key Features4K UHD, Direct LED, HDR, Cast+ wireless casting, Signage Pro, Display Management Plus, Wake-on-LAN, Over-the-air updates
Model55" STV+
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness300 nits
Color Depth1.07 billion colours
Contrast Ratio5,000:1
Display TypeCommercial display
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size55 inch
TouchscreenNo (non-touch)
Viewing Angle178°
Performance
GraphicsArm Mali-G52
Operating SystemAndroid 14
ProcessorOcta-core (4 × A73 2.20 GHz + 4 × A53 2.20 GHz)
RAM4 GB
Storage16 GB
Audio
Channels2.0
Speaker Output2 x 15 W
Connectivity
BluetoothBluetooth 5.0
PortsHDMI 2.1 In × 3 (HDCP 2.2, 4K@30 Hz), USB Type-A 3.0 × 1, USB Type-A 2.0 × 1, Audio Line Out × 1, SPDIF Out × 1, LAN In (RJ45) × 1, RS232 × 1, AV In × 1
Wi-FiWi-Fi 5
Power
Power Consumption84 W (standard mode)
Standby Power0.5 W
Physical
Dimensions1226 x 709 x 87 mm
Duty Cycle24 hours / 7 days
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount400 x 300 mm
Weight10.5 kg
QR code to Newline STV+ 55-inch 4K Digital Signage Display – STV+ 55" on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
