Newline STV+ 43-inch 4K Digital Signage Display – STV+ 43" — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Newline · 43" STV+ · Digital Signage

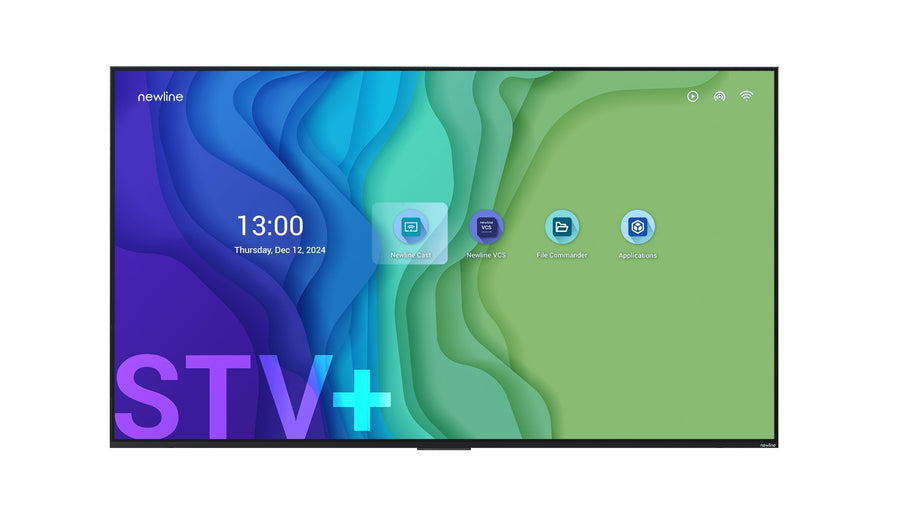

Newline STV+ 43-inch 4K Digital Signage Display – STV+ 43"

Newline STV+ 43-inch 4K Digital Signage Display – STV+ 43"

The Newline STV+ 43-inch is a 4K UHD digital signage display for lobbies, schools and offices. It combines 300 nits brightness, a 5,000:1 contrast ratio and Android 14 with Cast+ wireless casting and Signage Pro integration. Procure.ae supplies the Newline STV+ 43-inch across the UAE.

The STV+ 43-inch uses a Direct LED backlight with 3840 x 2160 resolution, 1.07 billion colours, 300 nits brightness, a 5,000:1 contrast ratio, a 6.5 ms response time and a 178° viewing angle. An octa-core processor with 4 GB RAM and 16 GB storage runs Android 14, with Wi-Fi 5 and Bluetooth 5.0 built in. Two 15 W rear speakers provide audio. The manufacturer lists an operating time of 24 hours a day, seven days a week and a display lifetime of 50,000 hours.

The STV+ 43-inch suits digital signage and communication setups that need networked control. Cast+ handles wireless casting from Windows, Mac, Android and iPhone devices, and Display Management Plus centralises settings and updates across screens. It has three HDMI 2.1 inputs and a LAN port, with Wake-on-LAN and over-the-air firmware updates. Compared with the standard STV 43-inch, the manufacturer lists 300 nits against 260 nits, a 5,000:1 contrast ratio against 4,000:1 and 4 GB RAM against 2 GB.

Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
300 nits
Type
Digital Signage Display
Weight
6.5 kg

Key features

01
Native 4K UHD
3840 x 2160 resolution with a 16:9 aspect ratio and 1.07 billion colours.
02
Direct LED backlight
300 nits brightness and a 5,000:1 contrast ratio.
03
Android 14 platform
an octa-core processor with 4 GB RAM and 16 GB storage.
04
Wireless casting
Cast+ shares content from Windows, Mac, Android and iPhone devices.
05
Signage Pro integration
connects to Newline Signage Pro for content management.
06
Display Management Plus
central control of settings and updates across screens.
07
Connectivity
three HDMI 2.1 inputs, LAN (RJ45), RS232, USB and audio ports.
08
Remote management
Wake-on-LAN, Wake-on-WiFi and over-the-air firmware updates.

Specifications

General
ApplicationDigital signage
CompatibilityNewline Interactive Ecosystem: Cast, Broadcast, App Store, Display Management Plus, Signage Pro, Cast+
Key Features4K UHD, Direct LED, HDR, Cast+ wireless casting, Signage Pro, Display Management Plus, Wake-on-LAN, Over-the-air updates
Model43" STV+
TypeDigital Signage Display
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness300 nits
Color Depth1.07 billion colours
Contrast Ratio5,000:1
Display TypeCommercial display
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size43 inch
TouchscreenNo (non-touch)
Viewing Angle178°
Performance
GraphicsArm Mali-G52
Operating SystemAndroid 14
ProcessorOcta-core (4 × A73 2.20 GHz + 4 × A53 2.20 GHz)
RAM4 GB
Storage16 GB
Audio
Channels2.0
Speaker Output2 x 15 W
Connectivity
BluetoothBluetooth 5.0
PortsHDMI 2.1 In × 3 (HDCP 2.2, 4K@30 Hz), USB Type-A 3.0 × 1, USB Type-A 2.0 × 1, Audio Line Out × 1, SPDIF Out × 1, LAN In (RJ45) × 1, RS232 × 1, AV In × 1
Wi-FiWi-Fi 5
Power
Power Consumption58 W (standard mode)
Standby Power0.5 W
Physical
Dimensions957 x 559 x 86 mm
Duty Cycle24 hours / 7 days
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight6.5 kg
