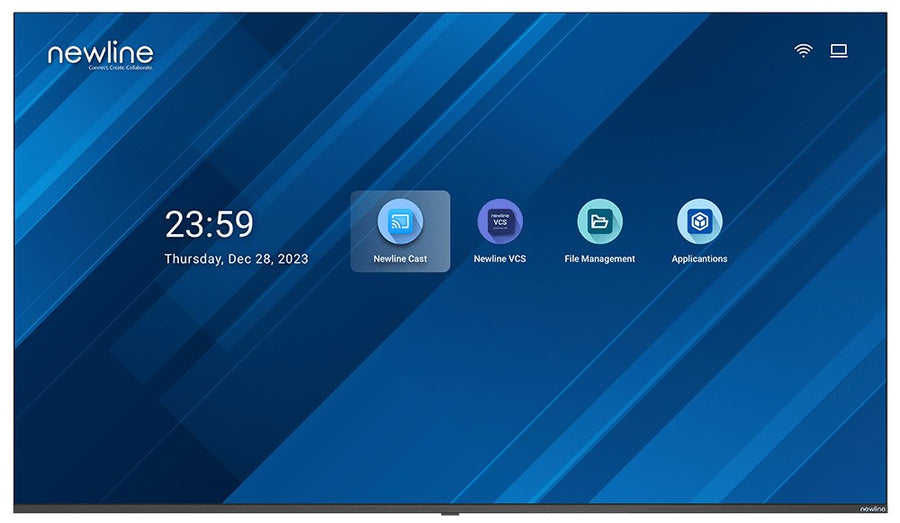

Newline STV 65-inch 4K UHD Digital Signage Display – 65" STV

Newline STV 65-inch 4K UHD Digital Signage Display – 65" STV

The Newline 65-inch STV (model 65" STV) is a 4K UHD non-touch digital signage display for businesses, schools and information screens. It offers 270 nits brightness, a 4,000:1 contrast ratio and a 1 mm ultra-thin bezel, and it supports the Cast+ and VCS software. Procure.ae supplies the 65-inch STV across the UAE.

The 65-inch STV uses a 3840 x 2160 (4K UHD) LCD panel with a 16:9 aspect ratio and 1.07 billion colours. Its response time is 6.5 ms, its viewing angle is 178 degrees and its refresh rate is 60 Hz. The display supports High Dynamic Range (HDR), and Newline specifies an operation time of 16 hours x 7 days. Two 10 W rear speakers provide audio output for announcements and video content.

Use the 65-inch STV for digital signage, corporate communications and school or office information screens. Cast+ shares content wirelessly from various devices, and VCS broadcasts messages straight to the panel without a separate media player. The 400 x 300 mm VESA pattern suits wall mounts. Compared with the 65-inch STV+, this model is rated at 270 nits rather than 300 nits and has a 4,000:1 contrast ratio rather than 5,000:1.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
270 nits
Type
Digital Signage Display
Weight
16.6 kg

Key features

01
4K UHD resolution
3840 x 2160 pixels on a 16:9 LCD panel with 1.07 billion colours.
02
Non-touch display
Built for digital signage and presentations, without touch input.
03
Ultra-thin bezel
A 1 mm bezel and a high screen-to-body ratio.
04
High brightness
270 nits (excluding wall mount) with a 4,000:1 contrast ratio.
05
High Dynamic Range
HDR support for video content.
06
Cast+ wireless casting
Shares content wirelessly from various devices.
07
VCS broadcasting
Sends messages straight to the panel without a separate media player.
08
Long operating time
Specified for 16 hours x 7 days, with a 60 Hz refresh rate.

Specifications

General
ApplicationDigital signage
CompatibilityNewline Cast+ and VCS
Key Features4K UHD, 1 mm bezel, HDR, non-touch, Cast+ wireless casting, VCS broadcast, 16 hours x 7 days operation
Model65" STV
TypeDigital Signage Display
Display
Aspect Ratio16:9
Bezel Size1 mm
Brightness270 nits
Color Depth1.07 billion colours
Contrast Ratio4,000:1
Display TypeCommercial display
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
TouchscreenNon-touch
Viewing Angle178°
Performance
ProcessorQuad-core ARM Cortex
RAM2 GB
Storage16 GB
Audio
Dynamic RangeHigh Dynamic Range (HDR)
Speaker Output10 W x 2
Connectivity
Wi-FiWi-Fi 5.0
Power
Power Consumption170 W (standard mode)
Standby PowerBelow 0.5 W
Physical
Dimensions1446 x 831 x 85 mm
Duty Cycle16 hours x 7 days
VESA Mount400 x 300 mm
Weight16.6 kg
