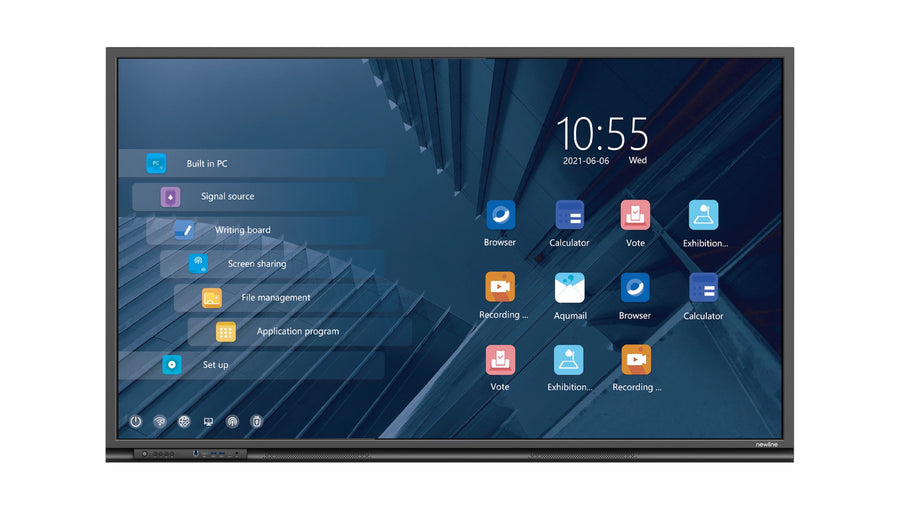

Newline S Series 86-inch Interactive Flat Panel – TT-8622S

The Newline TT-8622S is a discontinued 86-inch 4K UHD interactive flat panel for classrooms, with 20-point infrared touch, Android 11 and an OPS-PC slot. It offers 400 nits brightness and a 178-degree viewing angle. Procure.ae can confirm current availability in the UAE and recommend a current Newline model, with quotes, delivery and installation.

The TT-8622S is an 86-inch LED display at 3840 x 2160 resolution, with 400 nits brightness, 4,000:1 dynamic contrast, an 8 ms response time and a 178-degree viewing angle. Infrared touch supports 20 points with a passive pen or finger, on anti-glare, anti-fingerprint glass rated 8H for surface hardness with 88% transparency. The panel runs Android 11 on a quad-core Arm Cortex-A55 processor with 4 GB RAM and 32 GB ROM. Two 20 W speakers provide sound at 80 ±3 dB, and the model has a Wi-Fi module slot and an RS-232 control port.

The S Series is designed for classrooms and team rooms, with embedded collaborative tools and paper-like writing technology, according to the manufacturer. Inputs include three HDMI 2.0 ports, a DisplayPort 1.2 input, a VGA input and a USB-C port with 65 W power delivery. An OPS-PC slot allows an OPS computer module to be fitted, and the RJ-45 IN and OUT ports support network integration. The panel can be wall-mounted or set on a mobile stand.
