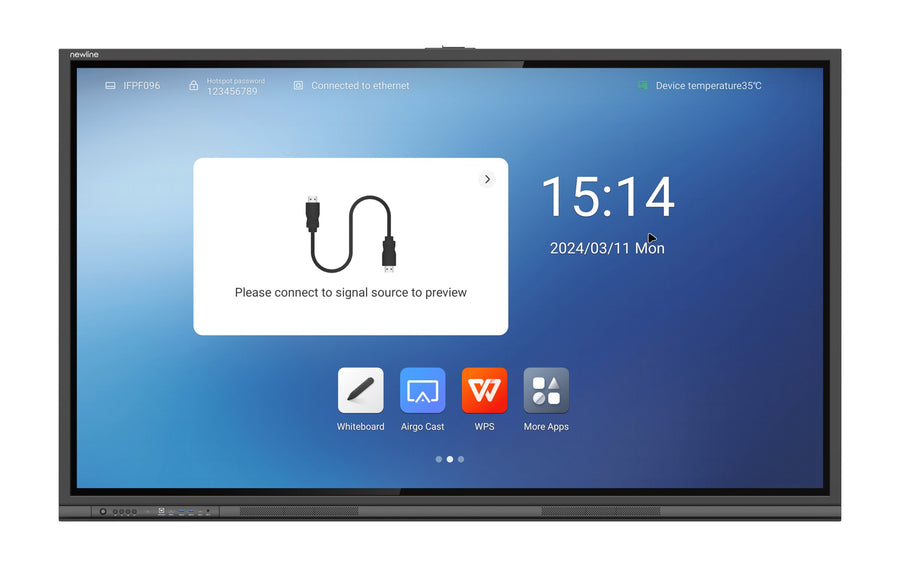

Newline S Pro 75-inch Interactive Flat Panel – TT-7523S

The Newline TT-7523S is a 75-inch 4K UHD interactive flat panel for classrooms, with 20-point infrared touch, Android 14 and 8 GB RAM. Its direct LED backlit LCD gives 400 nits brightness and 4,000:1 typical contrast. Procure.ae supplies the Newline S Pro Series across the UAE, with quotes, delivery and installation.

The TT-7523S has a 75-inch LCD panel at 3840 x 2160 resolution in a 16:9 aspect ratio, with 400 nits brightness and an 8 ms response time. Its infrared touch supports 20 points on Android and 40 points on Windows, and the anti-glare, anti-fingerprint glass takes input from a stylus or a finger. The panel runs Android 14 on an octa-core Arm Cortex-A55 processor with 8 GB RAM and 64 GB storage. It includes dual-band Wi-Fi 6 and Bluetooth 5.2, plus two 20 W speakers that deliver 80 ±3 dB sound pressure level.

The S Pro Series suits classrooms and collaborative spaces. According to the manufacturer's brochure, it differs from the standard S Series in offering optional components such as an 8-mic array microphone, a 4K AI camera and a 15 W subwoofer. Ports include three HDMI 2.0 inputs, a VGA input with audio, a DisplayPort input, a USB-C port, three USB 3.0 Type-A ports, two USB Type-B touch ports and an RS-232 control port. The panel can be wall-mounted or set on a mobile stand, and its RJ-45 ports support network integration.
