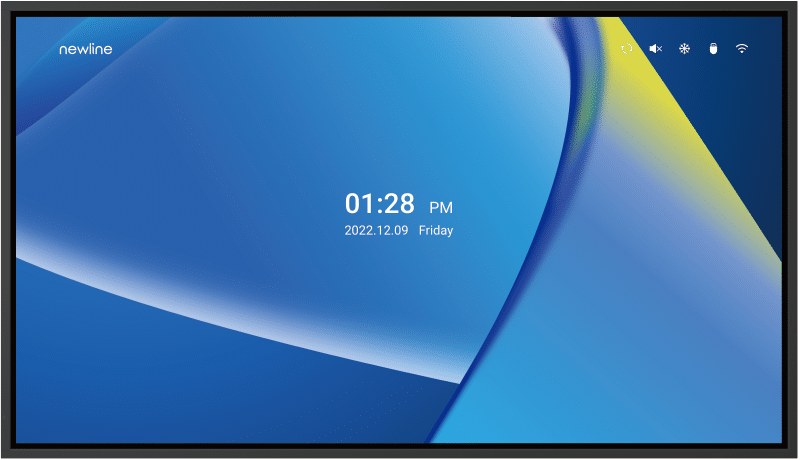

Newline NT+ Series 65-inch Non-Touch Display – TT-6523NT

Newline NT+ Series 65-inch Non-Touch Display – TT-6523NT

The Newline NT+ Series TT-6523NT is a 65-inch 4K non-touch display for classrooms and meeting rooms. It supports wireless casting from mobile devices, tablets, desktops and laptops, and runs Android 11. Procure.ae supplies it in the UAE as an authorised reseller, with delivery and installation across the UAE.

The TT-6523NT is a 65-inch non-touch 4K UHD display with a 3840 x 2160 LED panel, 400 nits center brightness and 4,000:1 typical contrast. Its response time is 8 ms and its viewing angle is 178°. The panel runs Android 11 on a quad-core Arm Cortex-A55 processor with 4 GB RAM and 32 GB storage, and it supports JPEG, PNG, MPEG-4 and H.264 media formats.

Use it where presentations, screen sharing and cloud files matter more than touch input, such as classrooms, training rooms and meeting rooms. Users can cast from any mobile device, tablet, desktop or laptop, including Windows, Mac and Chrome, and open cloud storage on the display. Connections include three HDMI inputs, DisplayPort, USB Type-C, VGA, RJ-45 LAN and RS-232. This model lists no OPS slot and no internal camera. Mounting is wall-mounted or mobile cart, with a 600 x 400 mm VESA pattern.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (center)
Type
Non-Touch Display
Weight
24 kg (net)

Key features

01
4K UHD display
3840 x 2160 resolution with 400 nits center brightness and 8 ms response time.
02
Wireless casting
Cast from mobile devices, tablets, desktops and laptops, including Windows, Mac and Chrome.
03
Cloud and USB files
Open files from cloud storage and from connected USB thumb drives on the display.
04
Android 11 smart system
Quad-core Arm Cortex-A55 processor with 4 GB RAM and 32 GB storage.
05
Pluggable Wi-Fi module
Wi-Fi 6 and Bluetooth 5.2 through the pluggable module.
06
Connectivity
Three HDMI inputs, DisplayPort, USB Type-C, VGA, RJ-45 LAN and RS-232.
07
Speakers
15 W x 2 average output and 20 W x 2 maximum output.
08
Multi-language support
The display supports multiple languages and firmware updates via USB or OTA.

Specifications

General
Key Features4K UHD, wireless casting, cloud and USB file access, pluggable Wi-Fi 6 module, Android 11, multi-language support
ModelTT-6523NT
TypeNon-Touch Display
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits (center)
Color Depth1.07 billion colors (8-bit + FRC)
Contrast Ratio4,000:1 (typical)
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical)
Screen Size65 inch
Viewing Angle178°
Performance
Operating SystemAndroid 11
ProcessorQuad-core Arm Cortex-A55, up to 1.9 GHz, Mali-G52 MP2 GPU
RAM4 GB
Storage32 GB
Storage Conditions15 to 45 °C, 20% to 90% RH (non-condensing)
Audio
Frequency Response250 Hz to 20 kHz (SPL -10 dB)
Speaker Output15 W x 2 average, 20 W x 2 maximum
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC
PortsHDMI In x 3, USB 2.0 x 3, RJ-45 LAN in x 1, RS-232 x 1, DisplayPort x 1, USB Type-C x 1, VGA In x 1
Wi-FiPluggable Wi-Fi 6 module
Power
Power Consumption300 W (standard mode)
Standby Power< 0.5 W
Physical
Dimensions1479 x 854 x 92 mm
MountingWall-mounted or mobile cart
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight24 kg (net)
QR code to Newline NT+ Series 65-inch Non-Touch Display – TT-6523NT on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
