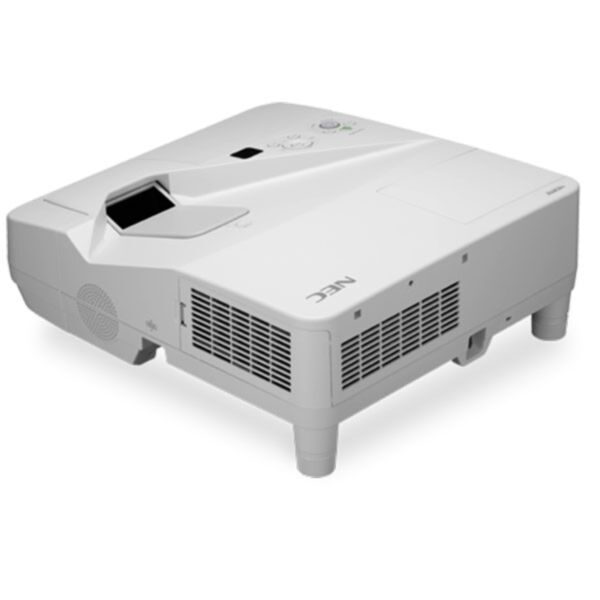

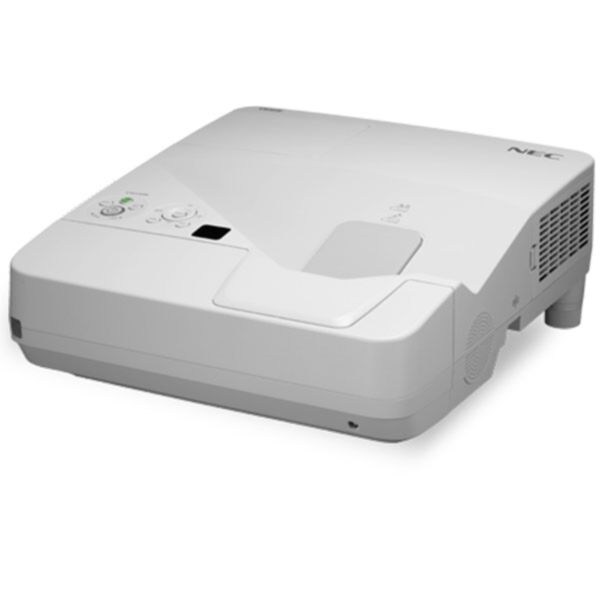

NEC UM330W 3300-Lumens WXGA Resolution Ultra Short Throw Projector

  • SKU: NP-UM330W

Actual Stock & Price Can Be Confirmed After Placing the Order.

OVERVIEW NEC’s widescreen UM330W is a 3300-lumen ultra short throw projector that packs a multitude of features while delivering an extremely short throw distance for education and corporate applications. A complete interactive projector solution can be created using the optional NP02Wi eBeam interactive system.... See More

Whatsapp Us
TELEPHONE (+971) 454 65041
WHATSAPP (+971) 454 65041
FREE SHIPPING All orders over AED1999/-

OVERVIEW

NEC’s widescreen UM330W is a 3300-lumen ultra short throw projector that packs a multitude of features while delivering an extremely short throw distance for education and corporate applications. A complete interactive projector solution can be created using the optional NP02Wi eBeam interactive system. With its ability to be mounted to the wall directly above the screen on which it projects, this model helps eliminate the shadows and glare typically found with standard projection systems. The UM330W includes a powerful 16W speaker, closed captioning and RJ-45 for remote management over a network, and its input panel includes dual HDMI, VGA and a microphone input to amplify the presenter’s voice. The optional NP02Wi interactive eBeam system enables accurate control and annotation at the screen surface.

SPECIFICATIONS

Optical

Display Technology 0.59" LCD w/ MLA
Light Output(Lumens) 3300 lumens

Resolution

Native WXGA 1280 x 800
Maximum UXGA 1600 x 1200
Contrast Ratio (up to) 3000:1
Lamp Type 265W AC
Lamp Life (up to) 3000 hours normal / 6000 hours eco
Screen Size (diagonal) 58 to 110 in. / 1.47 to 2.79m
Throw Ratio 0.36 to 1
Projection Distance 1.47 to 2.8 ft. / 0.45 to 0.85m
Projector Angle 49.2°

Lens

Zoom 1 to 1.4
Focus Manual
F number, fnumber F=1.8
Keystone Correction Automatic or manual +/- 10°

Synchronization Range

Horizontal (Analog/Digital) 15-100 kHz
Vertical (Analog/Digital) 50-120 H
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL 60, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
PC Signal Compatibility VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA
Macintosh Compatibility Yes

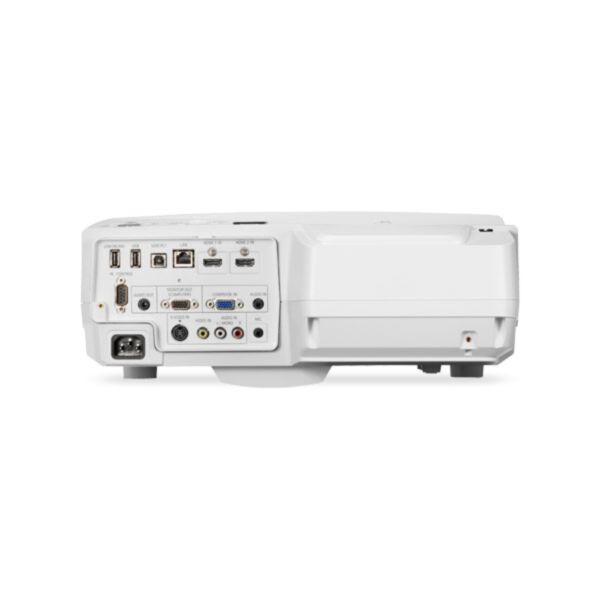

Input/Output Terminals

RGB1(analog) VGA 15-pin D-sub, Component video using ADP-CV 1E
RGB3(digital) HDMI
Video 1 RCA
Video 2 S-Video
Audio 1 1/8 in. stereo
Monitor out VGA 15-pin D-sub
Audio out Yes (variable)
Audio 16W speaker
External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity Separate Sync / Composite Sync / Sync on G
Networking RJ-45 Monitoring

Electrical

Power Requirements 100-240V AC, 50/60 Hz
Input Current 4.0A/2.0A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) 344W / 233W / 8W / 0.2W

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 16.9 x 23.3 x 4.4 in. / 429 x 592 x 112mm
Net Weight 12.6 lbs. / 5.7 kg
Fan Noise 35 dB normal / 28 dB eco
Regulations USA UL 60950-1 FCC Class B, C-UL CSA 60950-1 ICES-003 Class B

Environmental

Operating Temperature 41-104°F / 5-40°C
Humidity 20-80% non-condensing
Storage -4-122°F / -20-50°C

Limited Warranty

2 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first.

Additional Features

  • Microphone Input
  • Automatic keystone correction
  • Wireless LAN (Optional)
  • USB Viewer
  • 6000 hour Filter Life
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense
  • Wireless Image Utility
