OVERVIEW

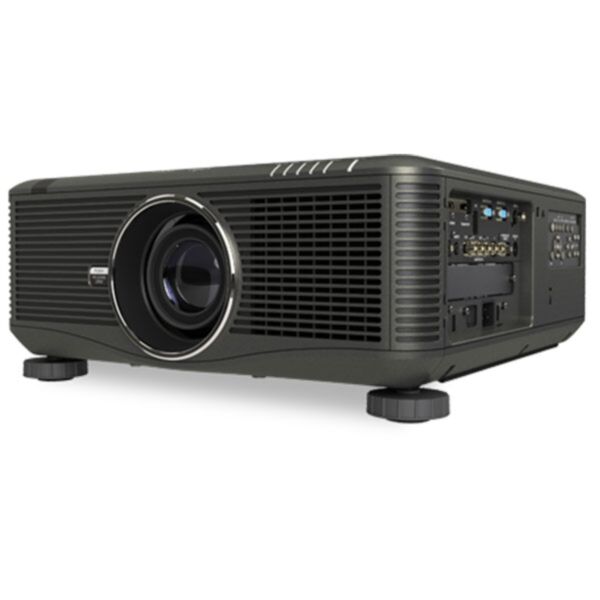

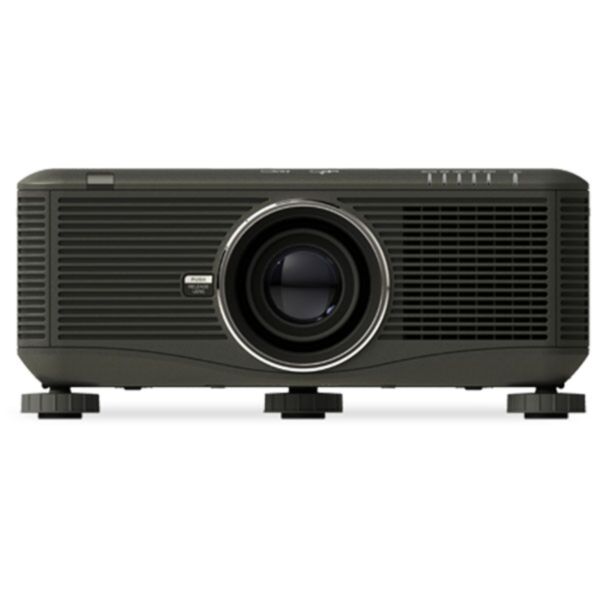

The 7500-lumen NEC PX750U professional installation projector is designed to allow flexibility with highly efficient networking capabilities. Its integrated HQV™ technology is a high-performance video processing/scaling system designed for computer signals, standard or high-definition video. The PX750U’s advanced input panel includes HDMI, DisplayPort and three computer inputs for quick-switching between presentations, while its networking capabilities include integrated RJ45, optional high-speed wireless (LAN IEEE 80.11b/g/n) and several Windows networking features. The PX750U is the first NEC projector to offer the Open Pluggable Specification (OPS) technology, which is the first industry-wide standardization in option slots to simplify installation, use and maintenance, while offering input flexibility. The edge blending functionality enables seamless blending of multiple projected images to display a single high-resolution image. Automated features include Auto Power On, quick start and direct power off for ease in presenting.
SPECIFICATIONS
Display Technology |
DLP (0.67" DMD) |
|
Light Output(Lumens) |
7500 normal / Eco = approx. 80% of normal mode |
|
Resolution
|
|
Native |
WUXGA 1920 x 1200 |
|
Maximum |
WUXGA 1920 x 1200 |
|
|
|
Contrast Ratio (up to) |
2100:1 |
|
Lamp Type |
400W AC / 320W eco |
|
Lamp Life (up to) |
2000 hours normal / 2500 hours eco |
|
Screen Size (diagonal) |
50 to 300 in. / 1.3 to 7.6m |
|
Throw Ratio |
Variable |
|
Projection Distance |
2.6 to 179.8 ft. / 0.8 to 54.8m |
|
Projector Angle |
0° tele / 14.6° wide |
|
Lens |
|
Zoom |
Power |
|
Focus |
Power |
|
F number, fnumber |
F=1.7 to 3.1, f=26 to 117.4mm |
|
Shift |
Power: 50% vertical, 10% horizontal |
|
|
|
Keystone Correction |
+/- 35° horizontal, +/- 30° vertical |
|
Synchronization Range |
|
Horizontal (Analog/Digital) |
15-108 kHz |
|
Vertical (Analog/Digital) |
48-120 Hz |
|
|
|
Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA |
|
Macintosh Compatibility |
Yes |
|

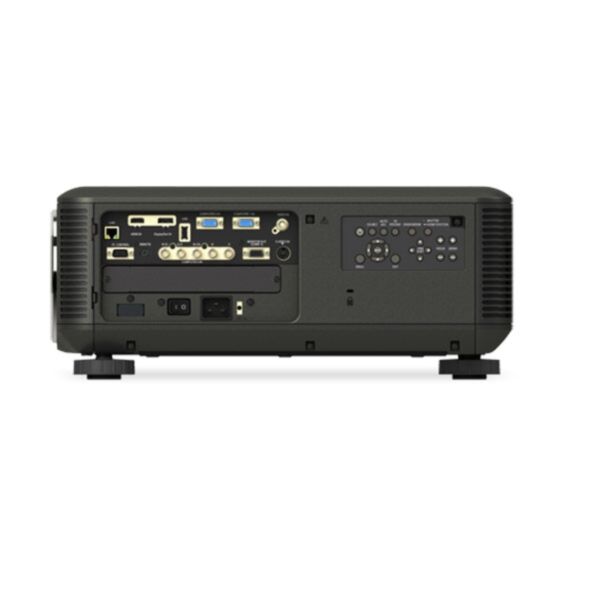

Input/Output Terminals |
|
RGB1(analog) |
VGA 15-pin D-sub |
|
RGB2(analog) |
VGA 15-pin D-sub |
|
RGB3(analog) |
5-BNC |
|
RGB4(digital) |
HDMI w/ HDCP |
|
RGB5(digital) |
DisplayPort |
|
Video 1 |
RCA |
|
Video 2 |
S-Video |
|
Monitor out |
VGA 15-pin D-sub |
|
|
|
External Control |
RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional) |
|
Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
|
Networking |
RJ-45 Monitoring |
|
|
Optional Lenses |
NP16FL, NP17ZL, NP18ZL, NP19ZL, NP20ZL, NP21ZL |
|
Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
Dimensions (WxDxH) |
19.8 x 20.3 x 7.6 in. / 504 x 516 x 192mm |
|
Net Weight |
19.7kg = 43.4 lbs. |
|
Fan Noise |
43 dB normal / 39dB eco |
|
Regulations |
USA: UL60950-1, FCC Part15 Class B, Canada: CSA60950-1, ICES-003 Class B |
|
|
Operating Temperature |
32-104°F / 0-40°C |
|
Humidity |
20-80% non-condensing |
|
Storage |
-14-122°F / -10-50°C |
|
|
3 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first. |
|
- Manual keystone correction
- Wireless LAN (optional)
- USB Viewer
- Stacking Correction
- Edge Blending: Geometric Correction
- 2500 hour Filter Life
- Auto power on
- ECO Mode technology
- Closed captioning
- Carbon savings meter
- Virtual Remote
- Sleep timer
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
|
|
- Remote control
- Batteries
- Power cord
- Dust cap for lens: User manual
- Quick Start Guide
- Product registration card
- 6-segment color wheel
- Stacking holders
- Power cord stopper
- Anti-theft can for LAN unit
- Lens anti-theft screw
|
